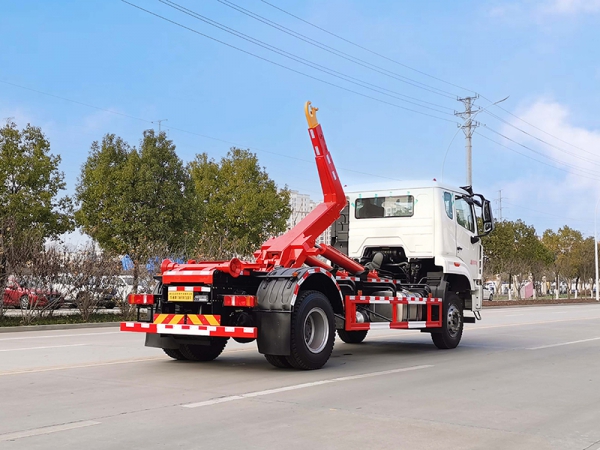

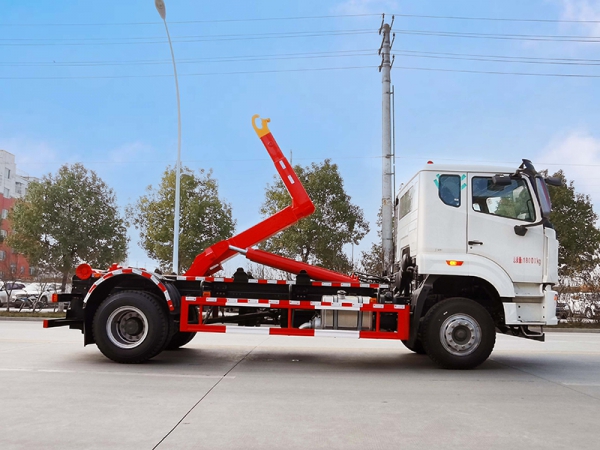

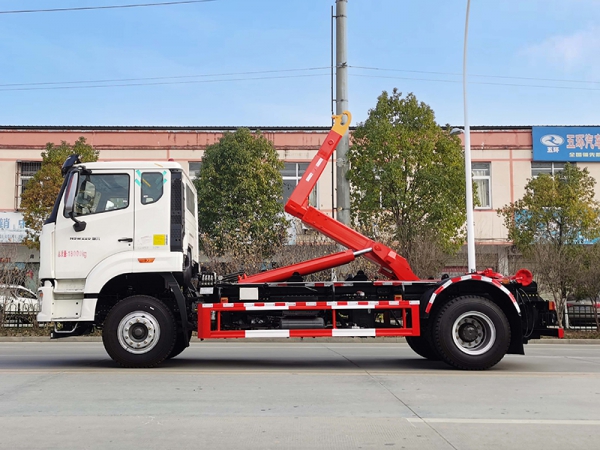

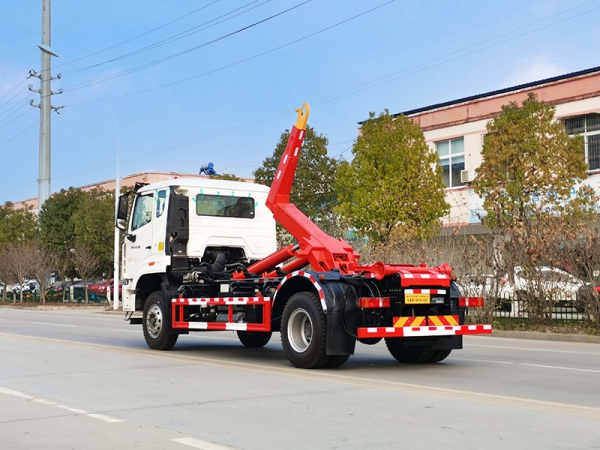

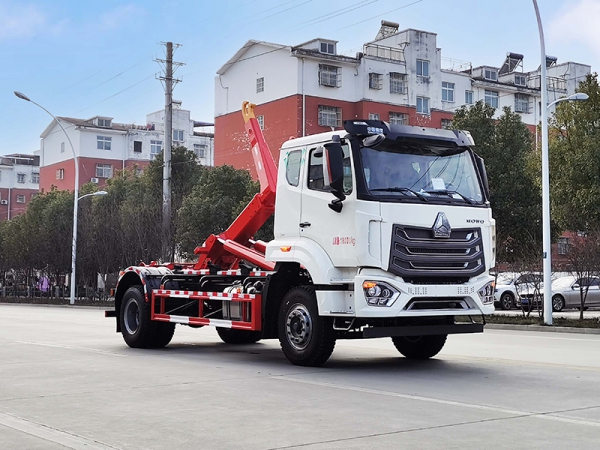

product name | SINOTRUK H OWO compartment detachable garbage truck | |
Vehicle parameters
| Rated occupants | 3 people |
Overall vehicle size (mm) | 7920×2550×3300 | |
Total mass (kg) | 18000 | |
Curb weight (kg) | 7950 | |
Rated mass (kg) | 9920 | |
ABS anti-lock braking system | have | |
Chassis parameters | Chassis brand/series | SINOTRUK H OWO |
model | ZZ1187K511JF1 | |
Wheelbase (mm) | 4500 | |
Tire specifications | 10.00R20 steel tire | |
Fuel type | diesel fuel | |
Emission Standards | GB17691-2018 Country VI | |
engine | WP4.6NQ220E61 | |
gearbox | 8 gears | |
pull arm | Hook manufacturer | Jiafeng Co., Ltd. | |
Hydraulic system | Type | Electric--Gas--Liquid | |
Main components | Hydraulic oil pump, operating valve, balance valve, hydraulic lock, hook arm main operating cylinder, sleeve arm inner sliding Cylinder, hydraulic oil pipe, hydraulic oil tank | ||
System rated pressure | 22MPa | ||
Hydraulic tank capacity | 120L | ||
Job performance parameters | Regular hook up | T | 16T |
Maximum horizontal sliding distance of hook arm | mm | 800/1000mm | |
Oil pump displacement | Ml/r | 80ml/r | |
Hook box time | s | ≤50 | |
Unpacking time | s | ≤50 | |
tipping angle | . | ≥50 | |
Hook center height of arm hook | mm | 1570 | |
Rail width | mm | 1060 | |
control voltage | V | 24V | |
