[VehicleTechnical Parameters] | |

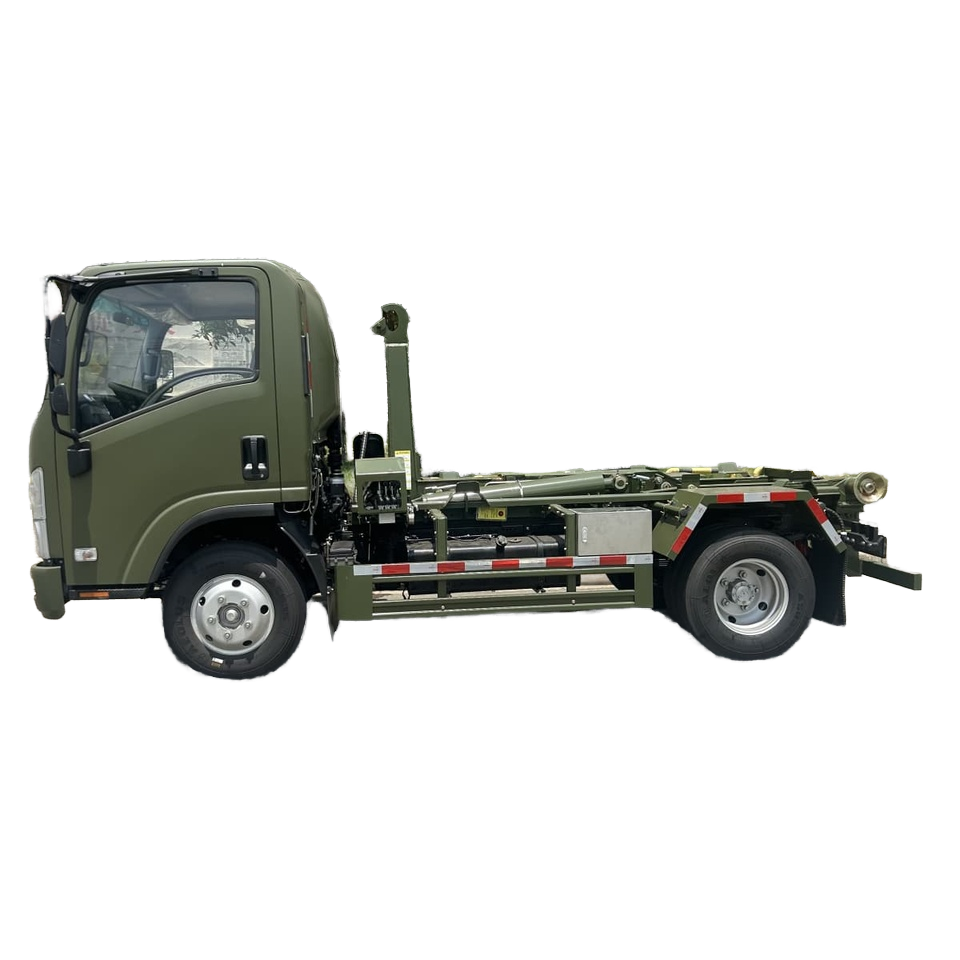

Product Name | Skip Loader Truck |
Kerb Weight (Kg) | 4200 |
Overall Dimensions (mm) | 5995*2500*2850 |
Box volume (m3) | 6 |
Box thickness (mm) | side plate4/bottom plate5 |
Box Body Material Quality | T355 mangManganese steel |
Compression Density (t/m ³） | 0.6-0.8 |
Working ambient temperature (℃) | -20-45 |
Sewage Tank Capacity (L) | 200 |
Filling cycle time (S) | ≤35 |
Compression cycle time (S) | ≤15 |
Uninstall cycle time (S) | ≤60 |
Operating Mode | Automatic + Manual |
Max Passengers Allowed | 3 |
[Chassis Technical Parameters] | |
Brand Name | 1-Isuzu |
Brake | Air brake/oil brake |
Fuel type | Diesel |
Engine Power（kw） | 95 |
Front Axle/Rear Axle (t) | 3.5/5.5 |
Gearbox Model | 6-speed manual |
Number of axes | 2 |
Wheelbase (mm) | 3360 |
Number of tires | 6 |
Tire size | 7.00R16 |
