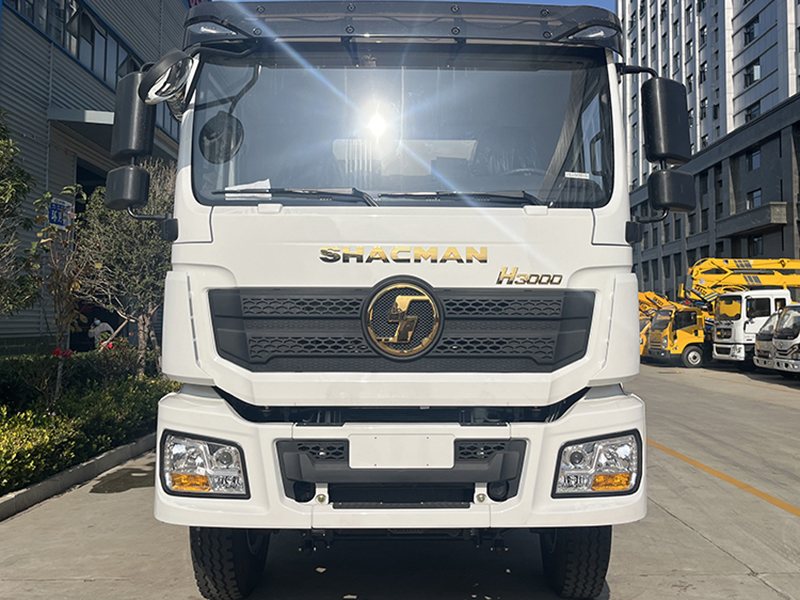

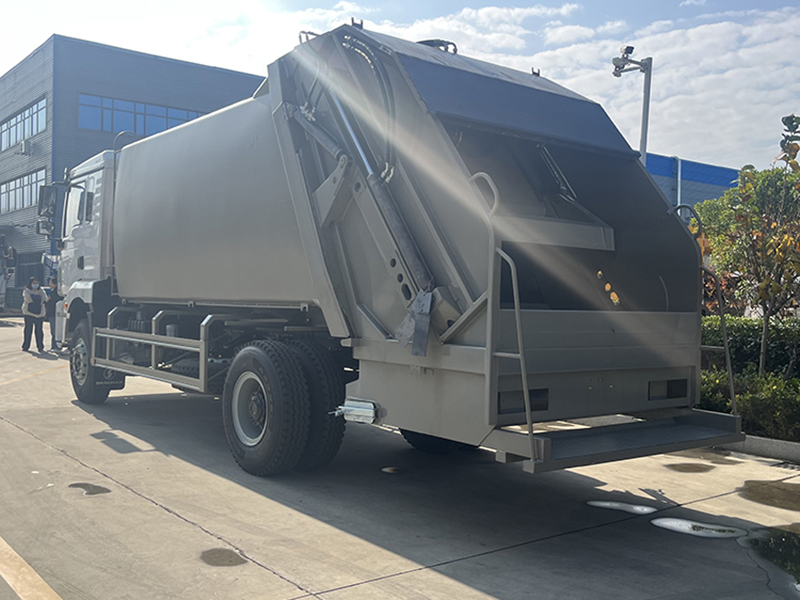

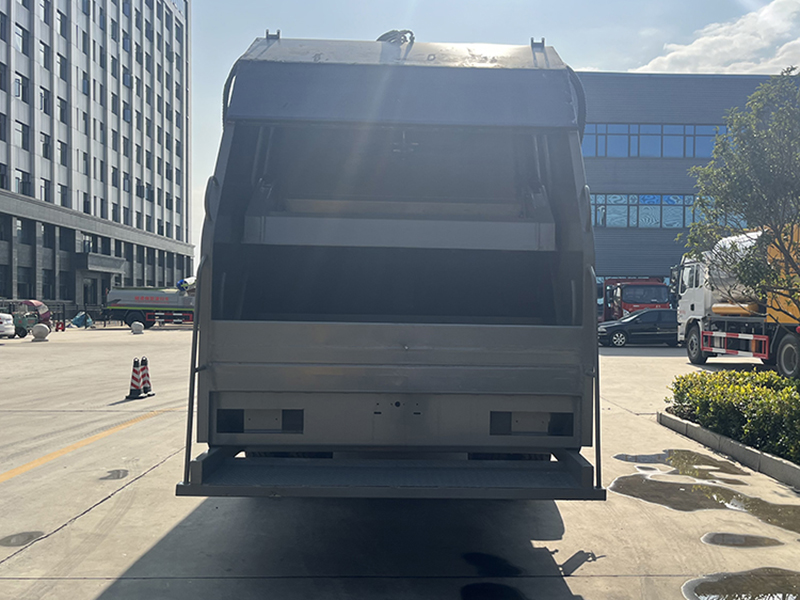

| SHACMAN Hydraulic Compactor Garbage Truck (14 cbm) | ||
| General | Chassis Brand | Shacman |
| Overall Dimension | 8890X2500X3300mm | |
| GVW / Kerb Weight | 18000kg / 5500kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Weichai | |
| Power | 240 HP | |
| Front/rear loading | 4800kg/10000kg | |
| Emission Standard | Euro2 | |
| Chassis | Drive Type | 4X2, (Left hand drive) |
| Gear box | 8 speed levers with 2 reverse | |
| Wheelbase/No. of axle | 5000mm / 2 | |
| Tire Specification | 10.00R20 radial tire | |
| Tire Number | 6 tires with 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 14cbm |
| Fill Hopper capacity | 0.73cbm | |
| Sewage tank | 600 liters | |
| Filling work cycle time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control | |
| Control panel | English or Your language | |
| All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual... | ||
| Optional | 1) Back alarm and Camera can be equipped. 2) Italy mulit-valve can be choose. 3) 240L (single bin or double bin) or standard 660L, 1100L bins with bin lifter can be choose. | |
![[pics:title]](/static/upload/image/20251009/1760020864301650.jpg)
![[pics:title]](/static/upload/image/20251009/1760020864535071.jpg)
![[pics:title]](/static/upload/image/20251009/1760020879870833.jpg)
