[VehicleTechnical Parameters] | |||

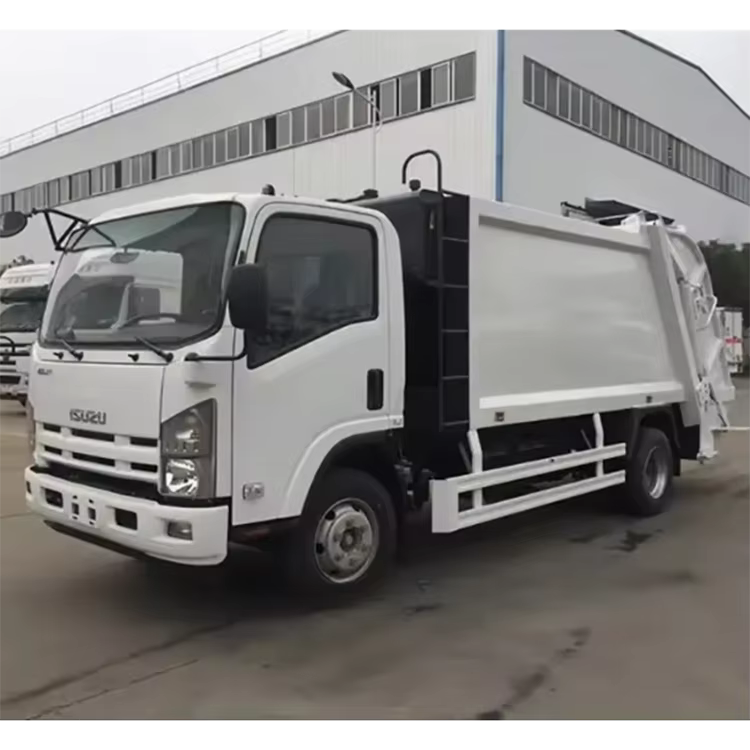

Product Name | compression garbage truck | ||
Kerb Weight (Kg) | 5200 | ||
Overall Dimensions (mm) | 6850*2130*2400 | ||
Box volume (m3) | 8 | ||
Box thickness (mm) | 4 on the side and 4 at the bottom | ||
Box Body Material Quality | Q345 manganese steel plate | ||
Compression Density (t/m ³） | 0.6-0.8 | ||
Working ambient temperature (℃) | -20-45 | ||
Sewage Tank Capacity (L) | 400 | ||
Filling cycle time (S) | ≤35 | ||
Compression cycle time (S) | ≤15 | ||
Uninstall cycle time (S) | ≤60 | ||
Operating Mode | Automatic + Manual | ||
Max Passengers Allowed | 3 | ||
[Chassis Technical Parameters] | |||
Brand Name | ISUZU | ||
Brake | Empty ship air brake/oil brake | ||
Fuel type | Diesel | ||
Engine Power（kw） | 125 | ||
Front Axle/Rear Axle (t) | 4.5/9 | ||
Gearbox Model | 8-speed transmission | ||
Number of axes | 2 | ||
Wheelbase (mm) | 3360 | ||
Number of tires | 6 | ||
Tire size | 7.50R16LT 16PR | ||
