VehicleTechnical Parameters] | ||

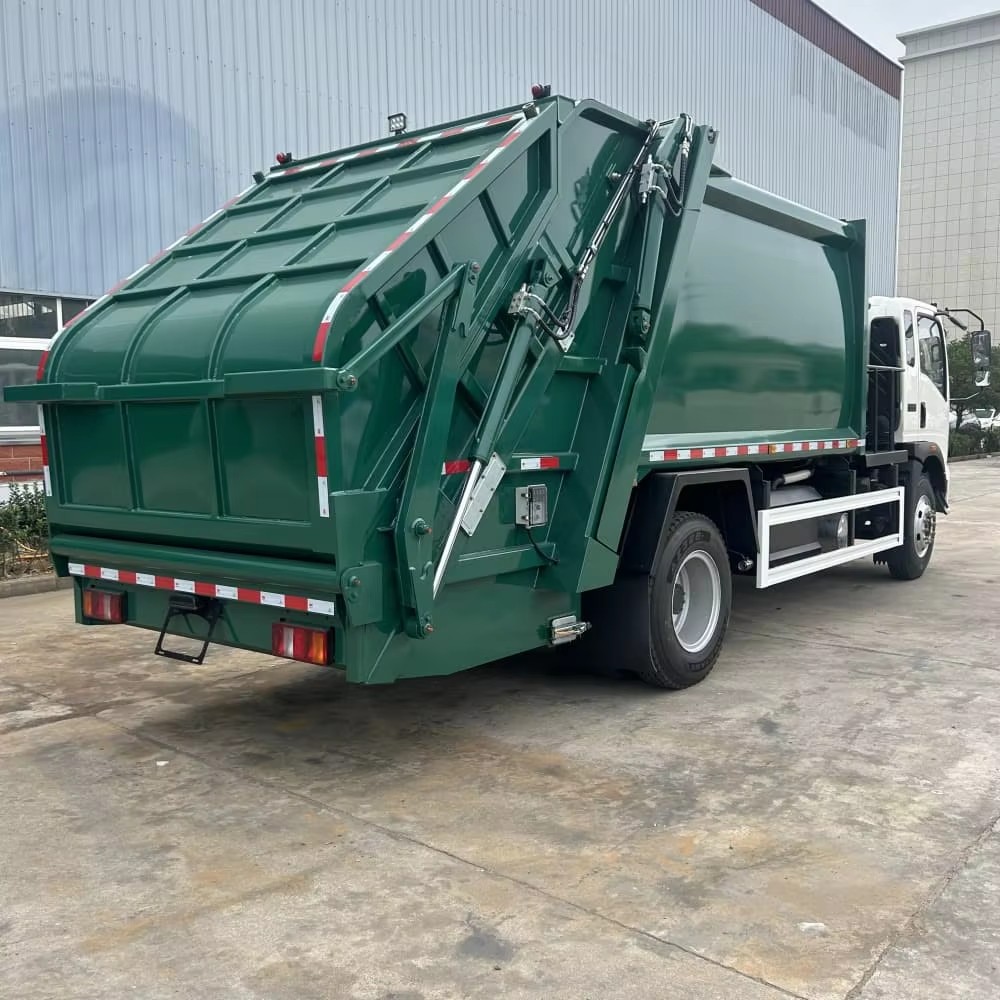

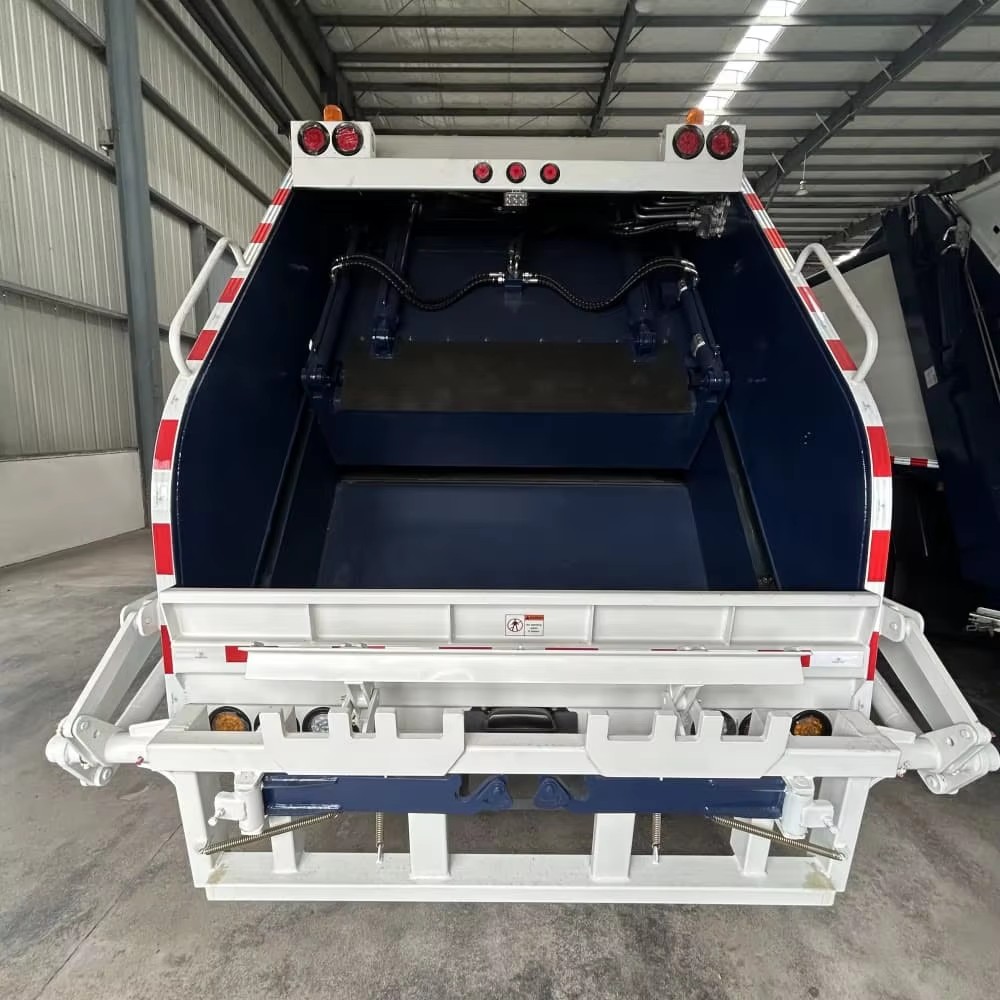

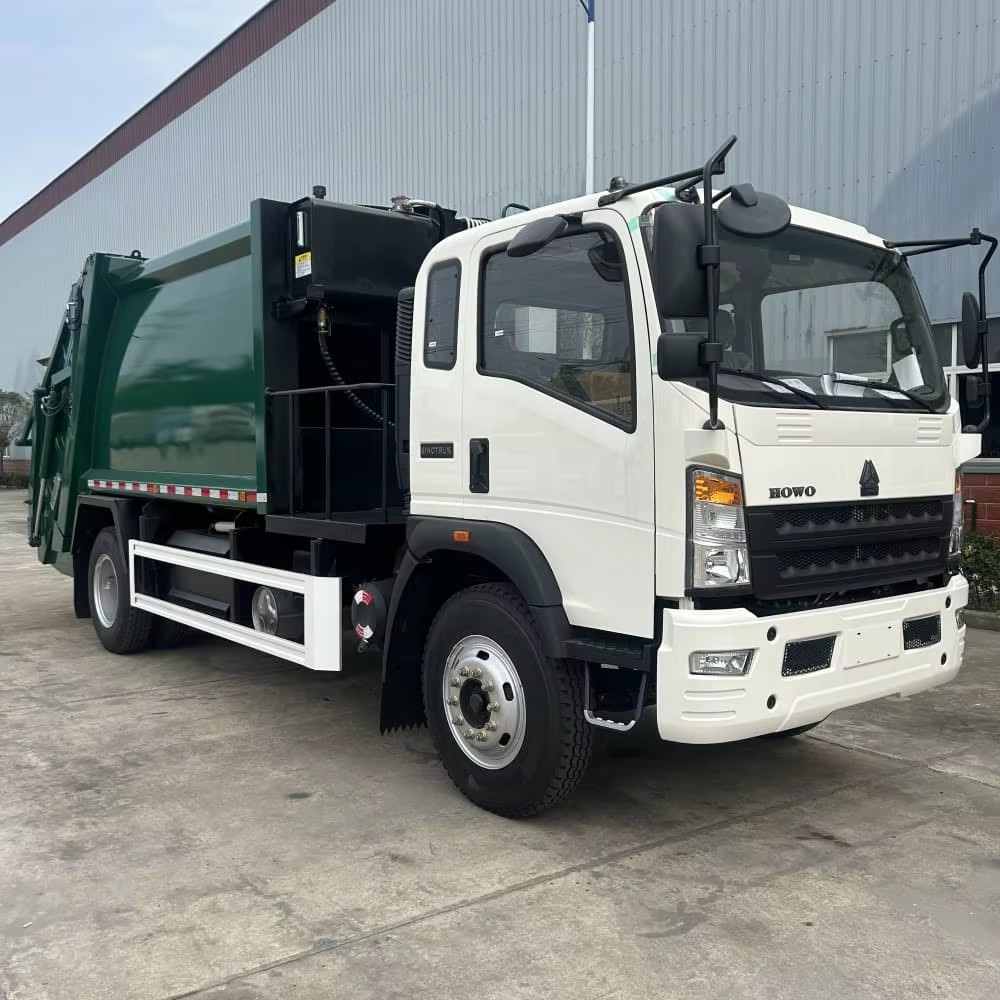

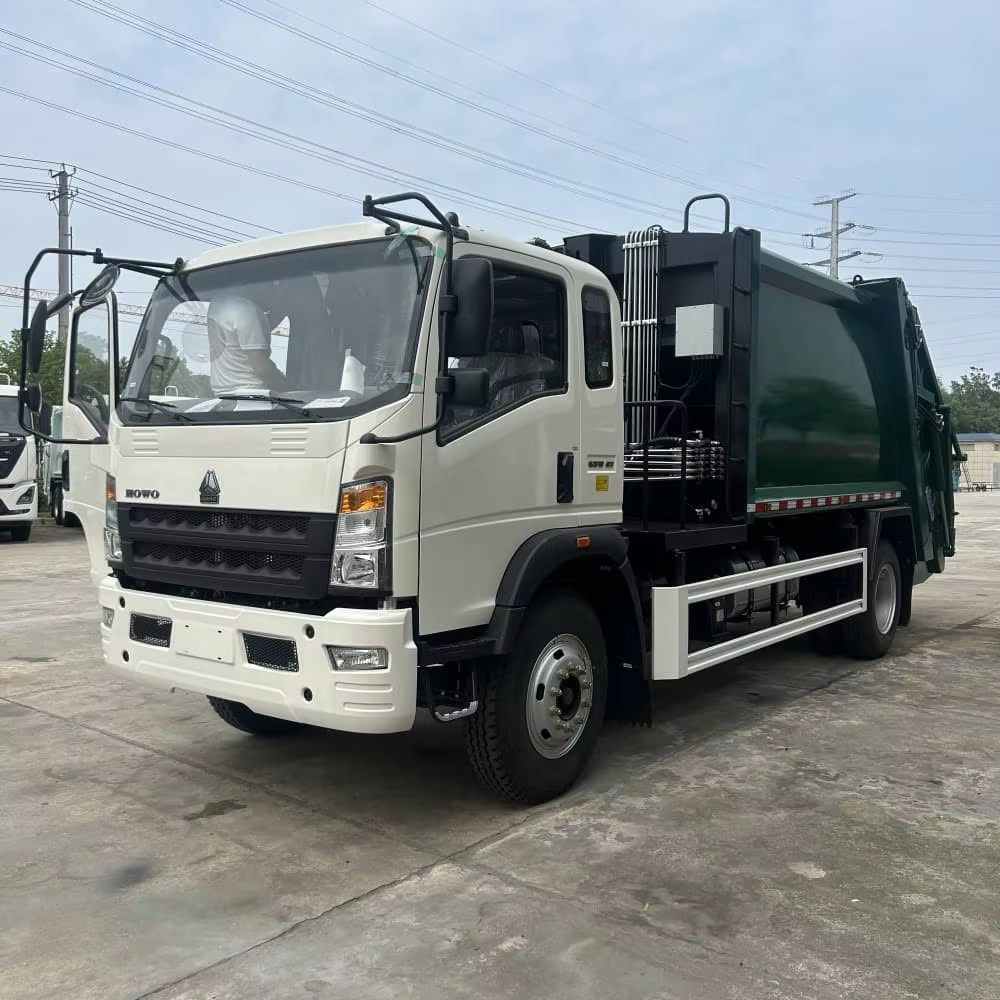

Product Name | compression garbage truck | |
Kerb Weight (Kg) | 8400 | |
Overall Dimensions (mm) | 7790*2500*3100 | |
Box volume (m3) | 10 | |
Box thickness (mm) | 4 on the side and 4 at the bottom | |
Box Body Material Quality | Q345 manganese steel plate | |
Compression Density (t/m ³） | 0.6-0.8 | |
Working ambient temperature (℃) | -20-45 | |
Sewage Tank Capacity (L) | 600 | |
Filling cycle time (S) | ≤35 | |
Compression cycle time (S) | ≤15 | |
Uninstall cycle time (S) | ≤60 | |
Operating Mode | Automatic + Manual | |
Max Passengers Allowed | 3 | |
[Chassis Technical Parameters] | ||
Brand Name | HOWO | |
Brake | Empty ship air brake/oil brake | |
Fuel type | Diesel | |
Engine Power（kw） | 125 | |
Front Axle/Rear Axle (t) | 4.5/9 | |
Gearbox Model | 8-speed transmission | |
Number of axes | 2 | |
Wheelbase (mm) | 4200 | |
Number of tires | 6 | |
Tire size | 9.00R20 | |
