[VehicleTechnical Parameters] | |

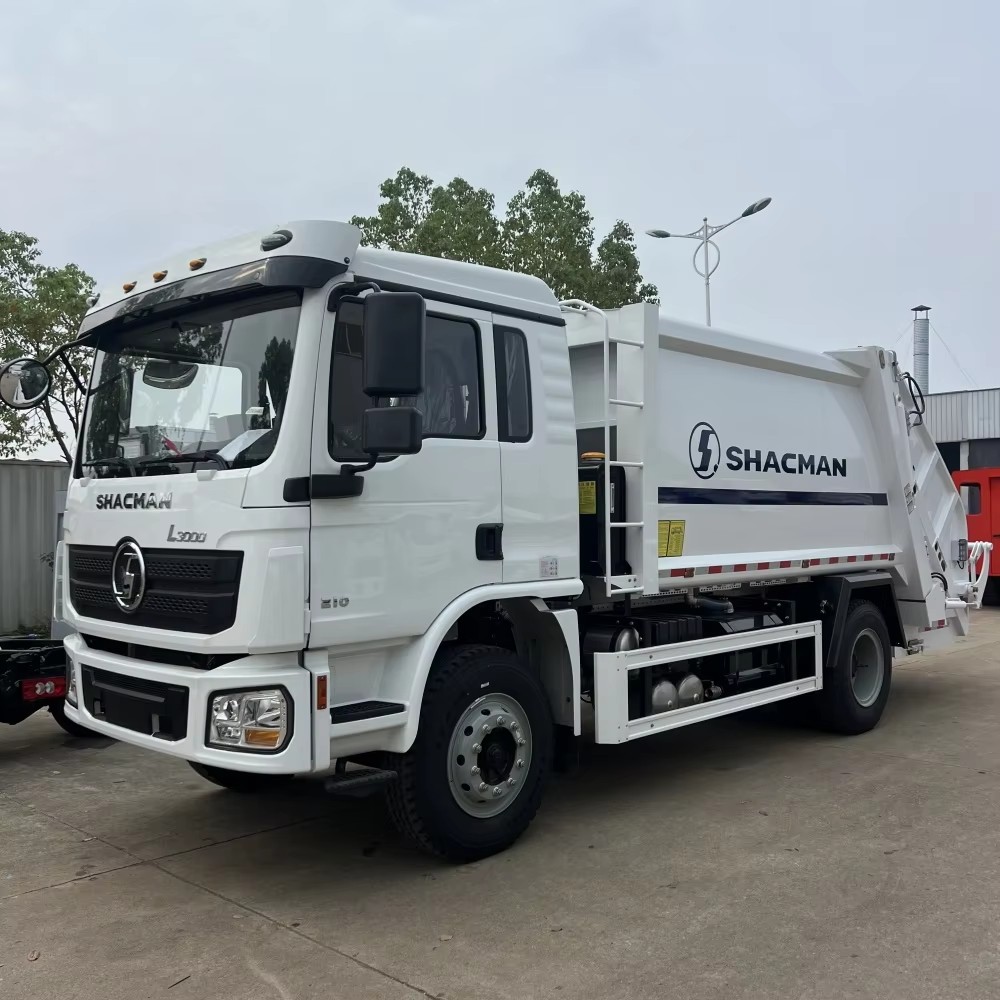

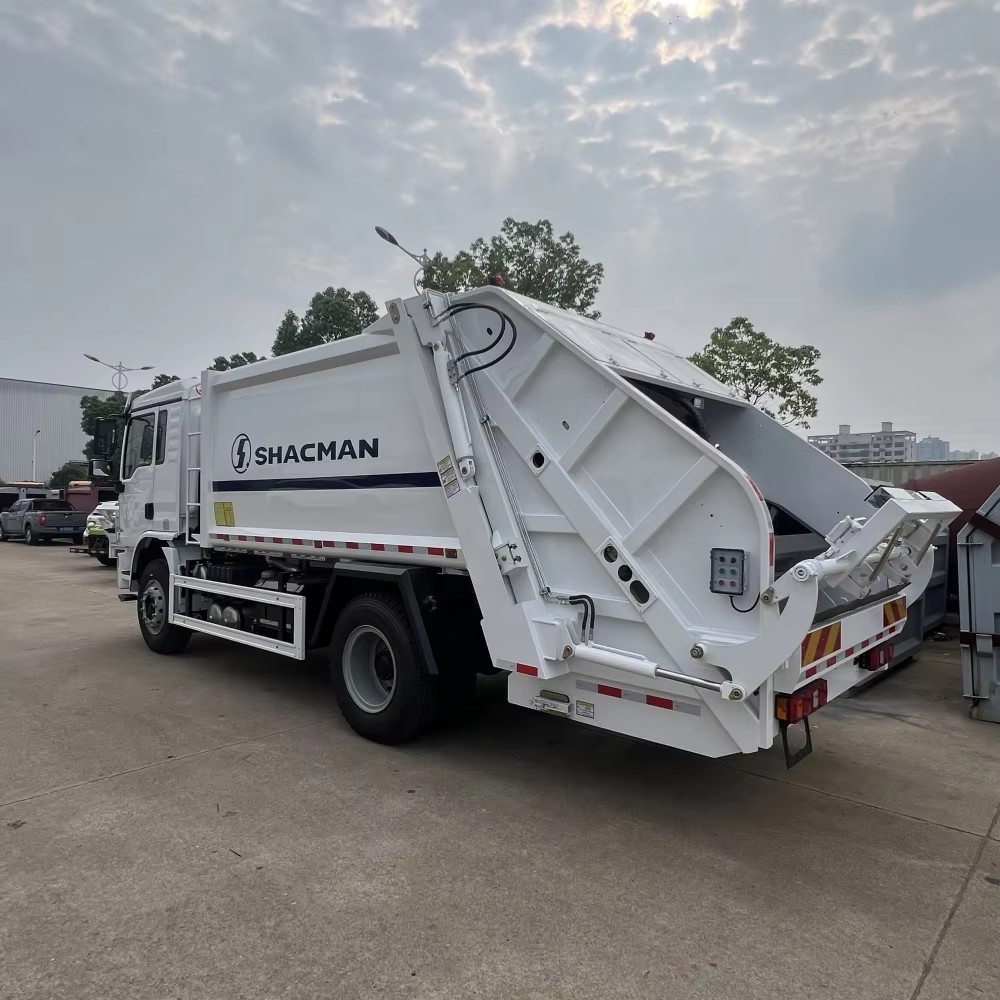

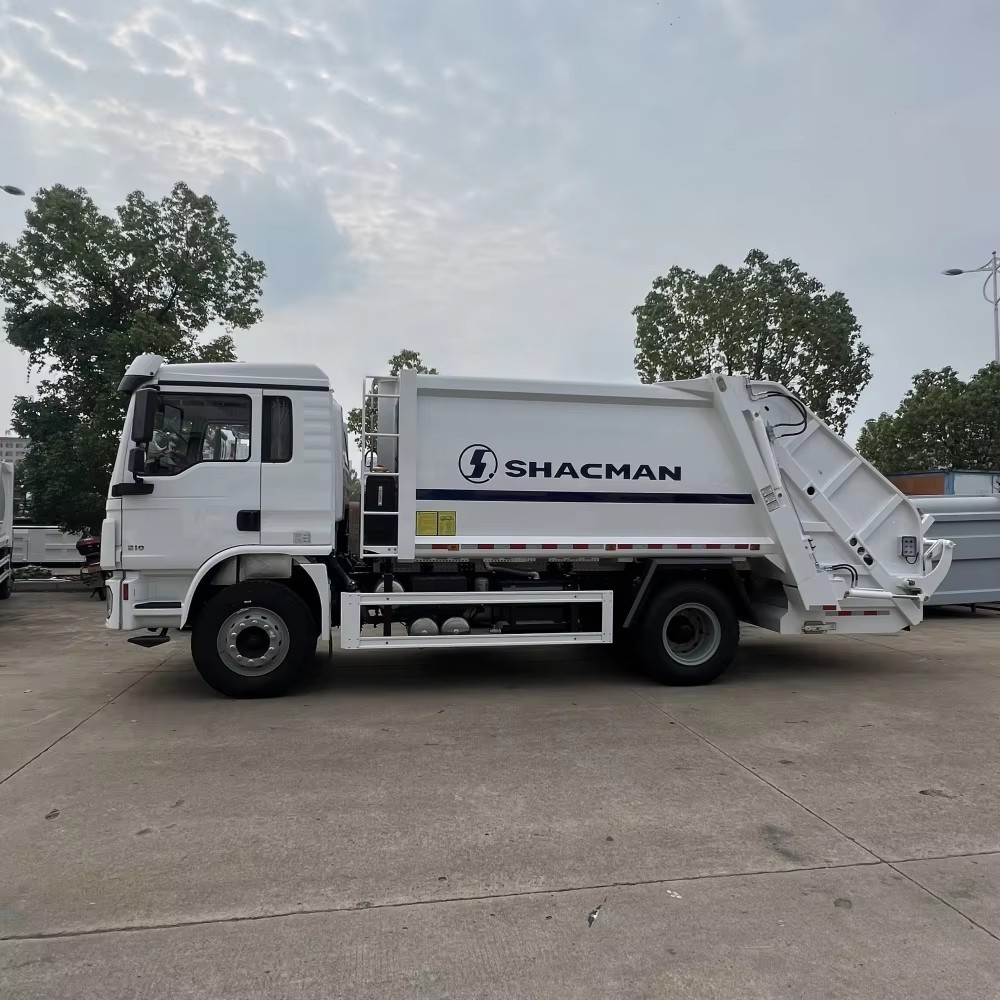

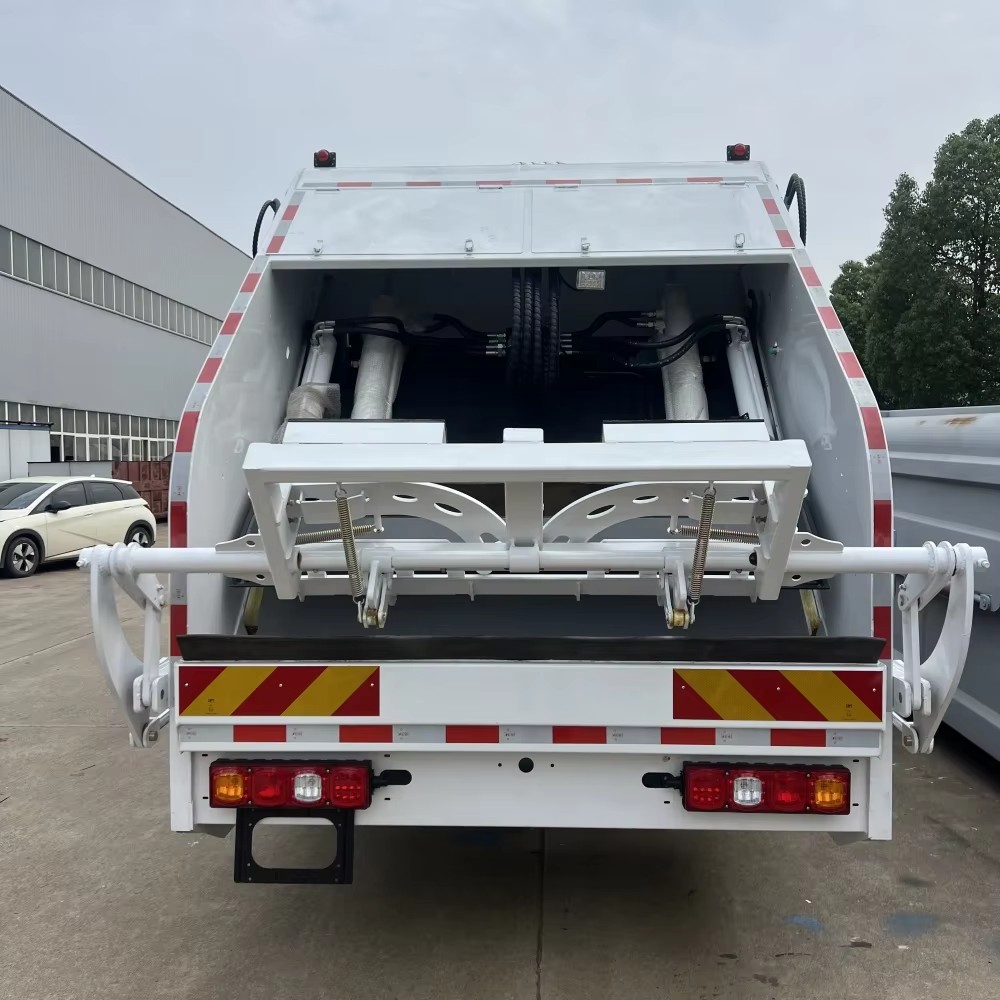

Product Name | Shaanxi Automobile Compression Garbage Truck |
Curb weight (kg) | 18000 |
Total size (mm) | 10500x2500x3550 |
Box volume (m3) | 12 |
Box thickness (mm) | Side plate 4/bottom plate 5 |
Box material quality | T355Manganese plate |
Compression density (t/m & sup3;) | 0.6-0.8 |
Working ambient temperature (℃) | -20-45 |
Sewage tank capacity (liters) | 900 |
Filling cycle time (S) | ≤35 |
Compression cycle time (S) | ≤15 |
Uninstall cycle time (S) | ≤60 |
Operation mode | Manual/Automatic |
Maximum personnel allowed to enter the cab | 3 |
Maximum speed (km/h) | 105 |
[Chassis Technical Parameters] | |
Chassis brand | Shacman |
Brake | air brake |
Fuel type | diesel fuel |
Engine power (kilowatts) | 147 |
Front axle/rear axle (t) | 5/10 |
8Transmission model | 8 |
Number of axes | 2 |
Wheelbase (mm) | 5000 |
Number of tires | 6 |
Tire size | 10.00R20 |
