[VehicleTechnical Parameters] | |

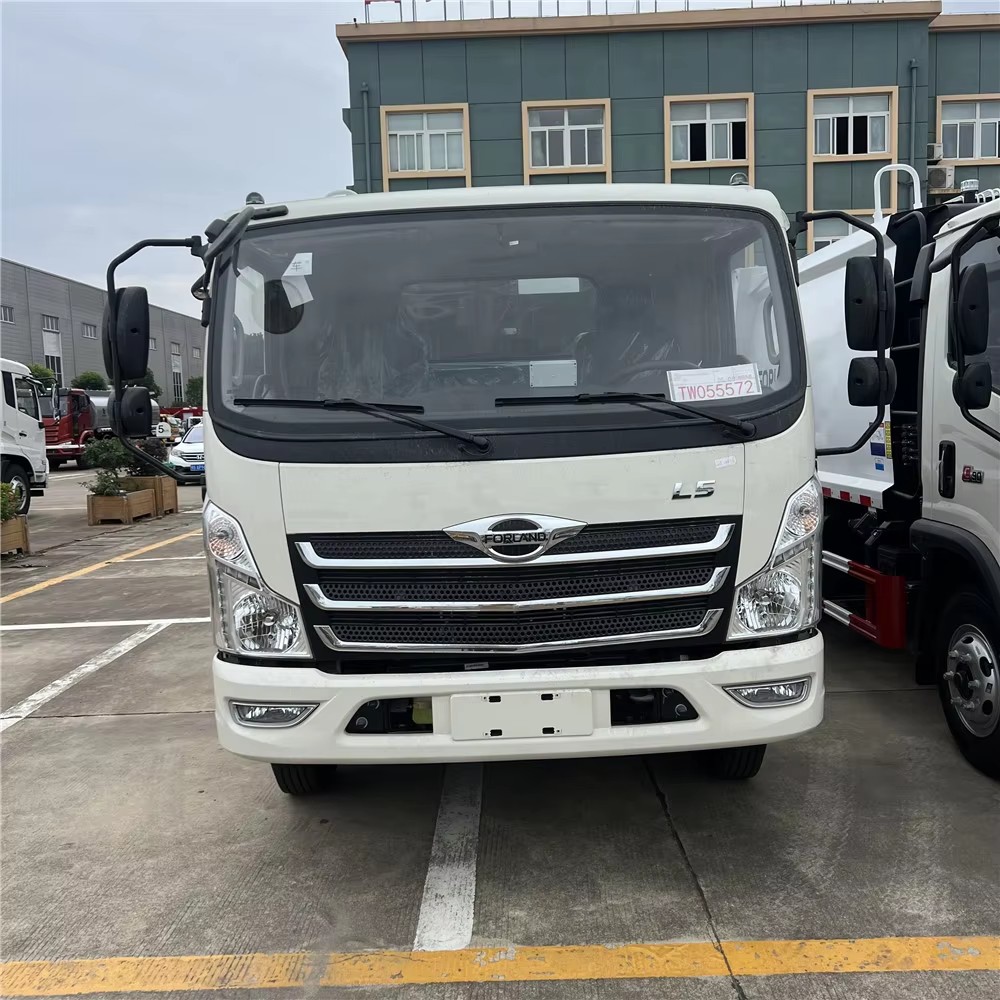

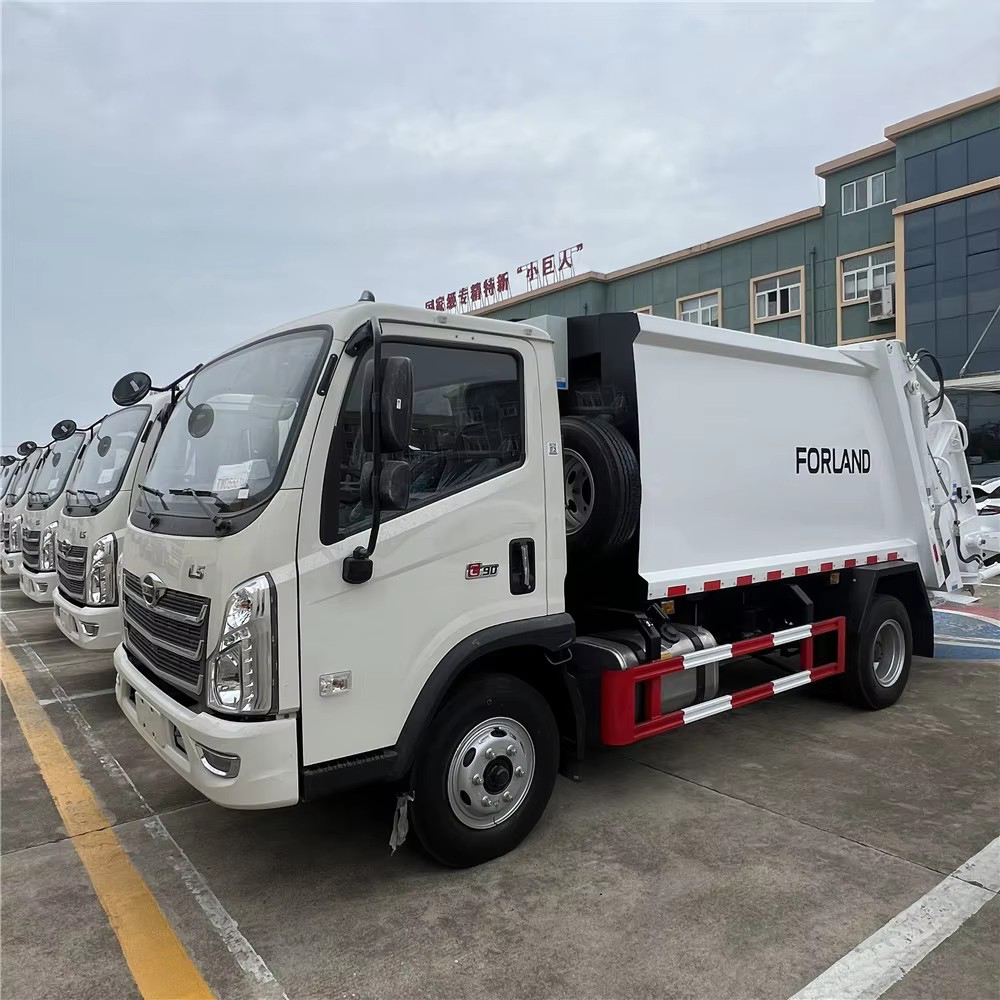

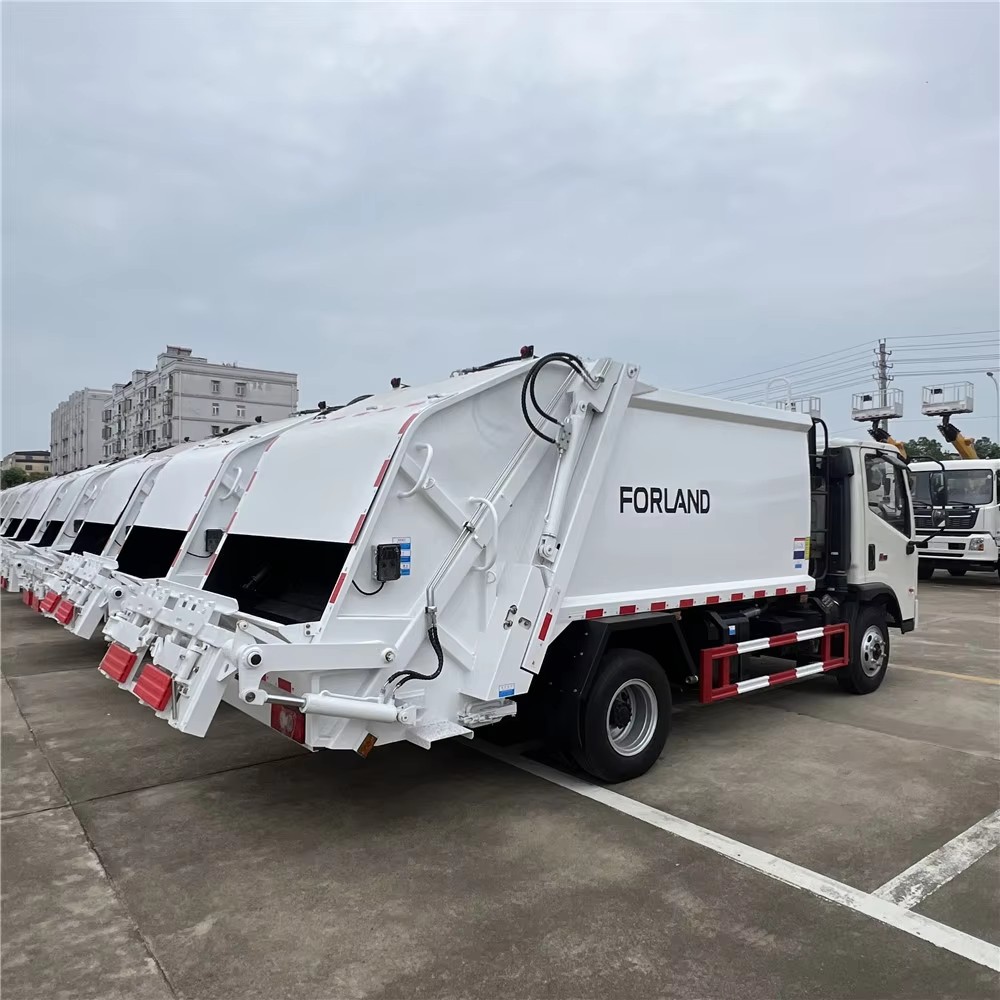

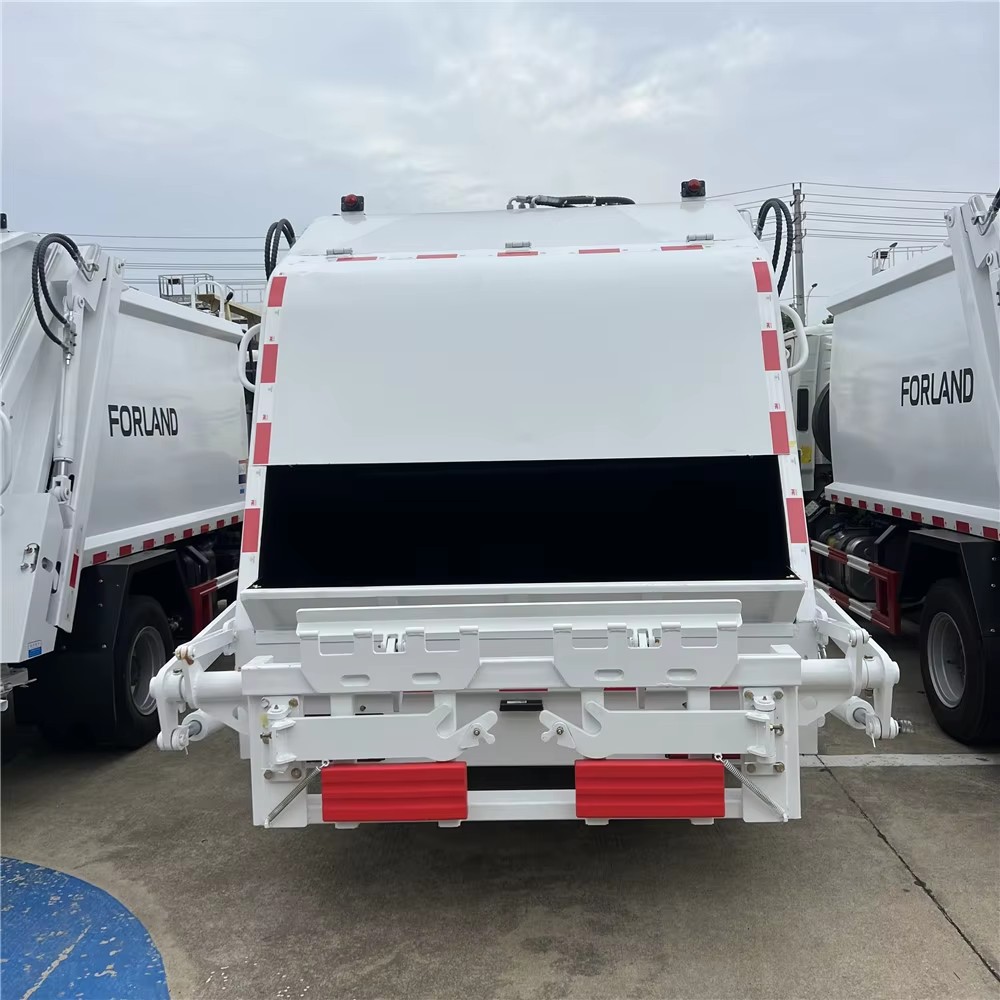

Product Name | Futian small card compression garbage truck |
Curb weight (kg) | 4432 |
Total size (mm) | 5955*2510*3300 |
Box volume (m3) | 6 |
Box thickness (mm) | Side 4/bottom 5 |
Box material quality | T355 manganese steel |
Compression density (t/m & sup3;) | 0.6-0.8 |
Working ambient temperature (℃) | -20-45 |
Sewage tank capacity (liters) | 600 |
Filling cycle time (S) | ≤35 |
Compression cycle time (S) | ≤15 |
Uninstall cycle time (S) | ≤60 |
Operation mode | Automatic/Manual |
Maximum personnel allowed to enter the cab | 3 |
Maximum speed (km/h) | 98 |
[Chassis Technical Parameters] | |
Chassis brand | Foton |
Brake | air brake |
Fuel type | diesel fuel |
Engine power (kilowatts) | 89 |
Front axle/rear axle (t) | 3.5/6 |
Transmission model | 6 |
Number of axes | 2 |
Wheelbase (mm) | 3360 |
Number of tires | 6 |
Tire size | 7.00R16 |
