CHU SHENG
[VehicleTechnical Parameters] | |

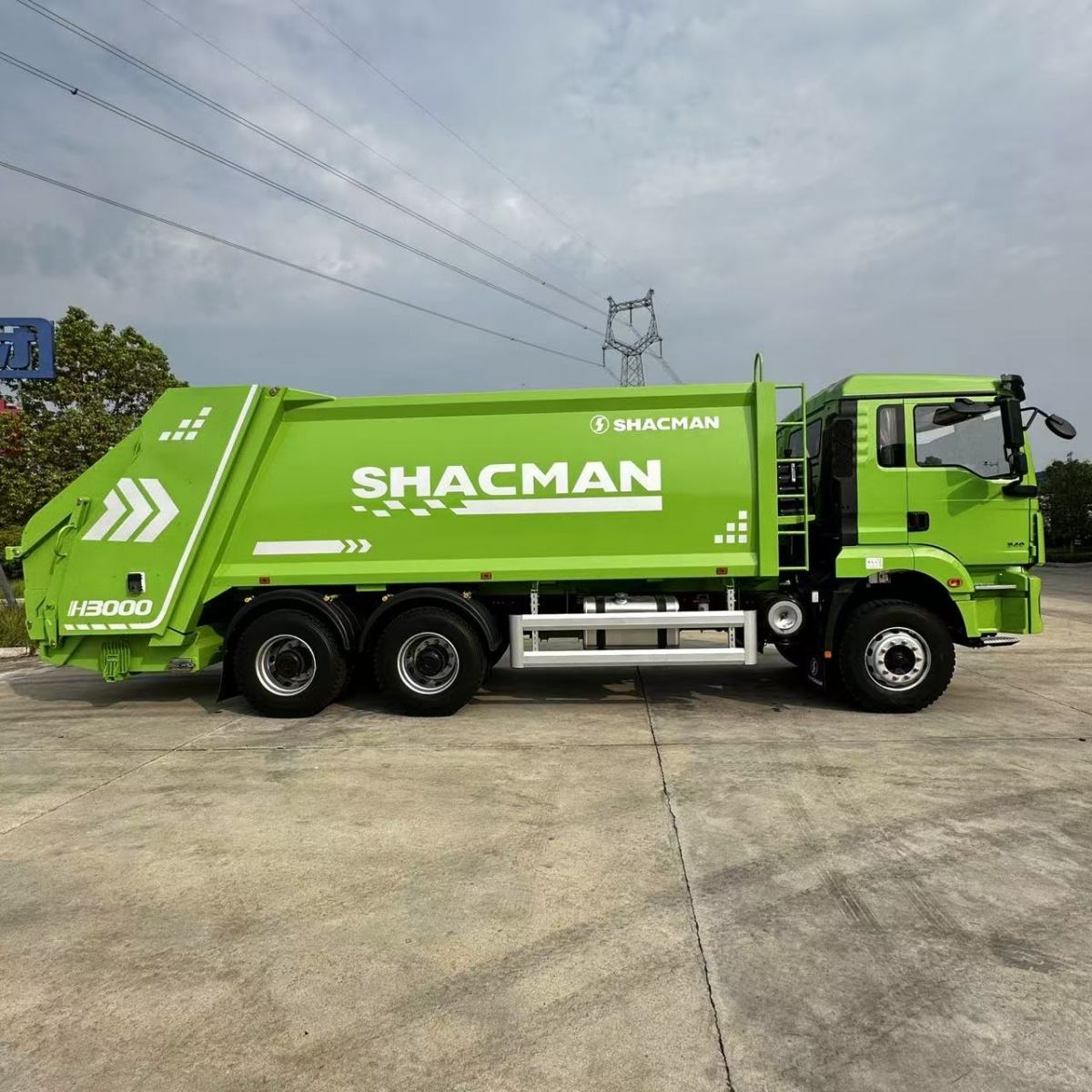

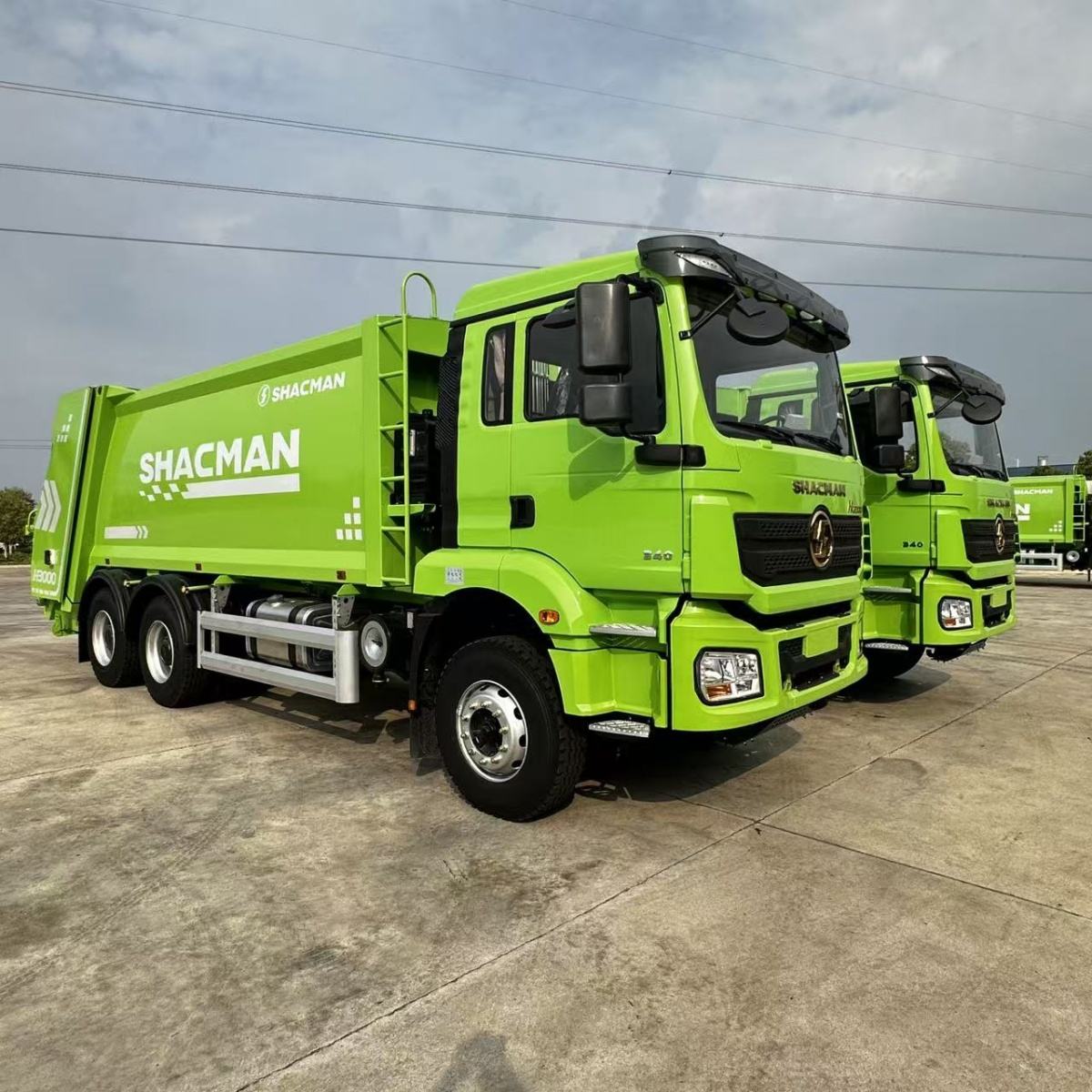

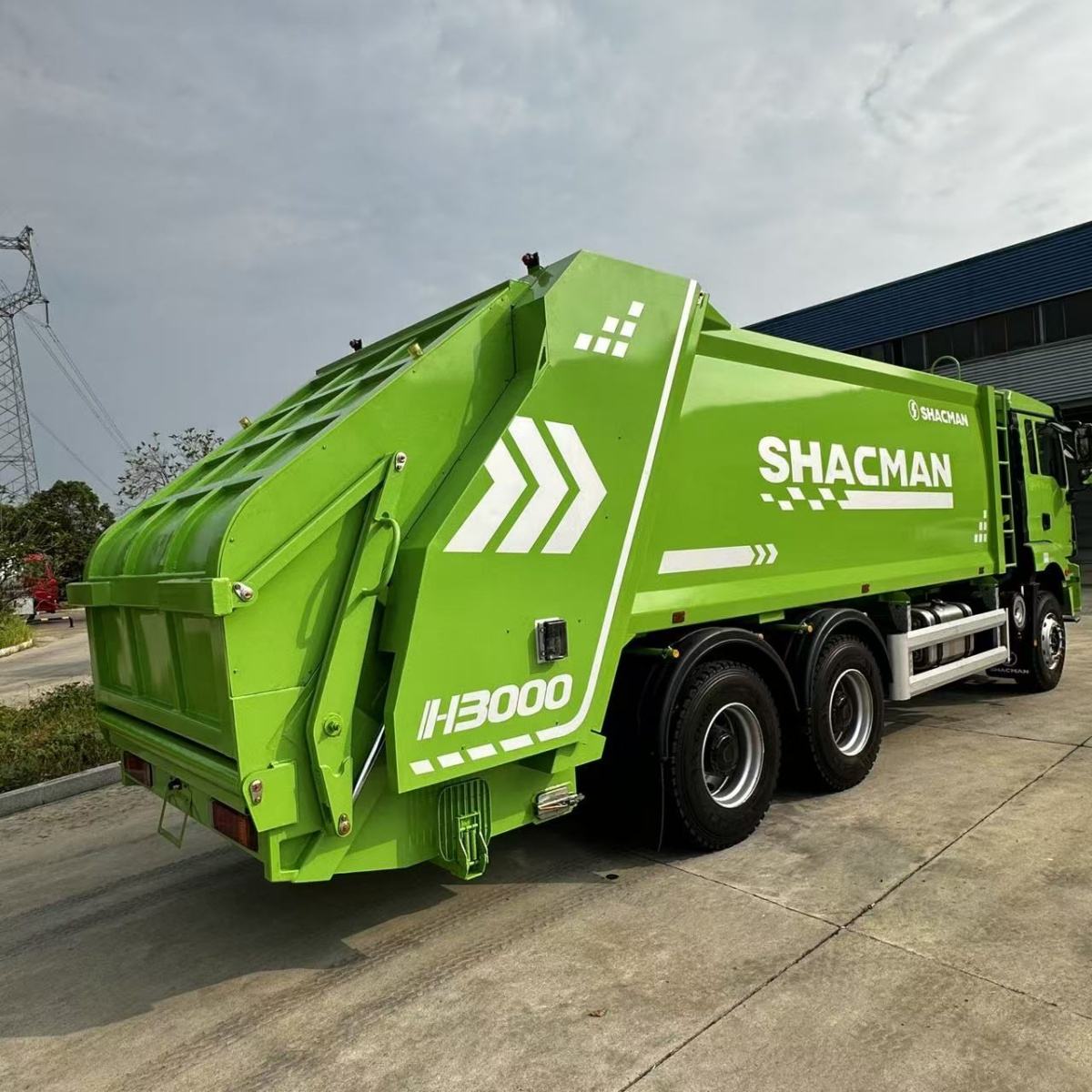

Product Name | compression garbage truck |
Kerb Weight (Kg) | 15800 |
Overall Dimensions (mm) | 9780*2550*3450 |
Box volume (m3) | 20 |
Box thickness (mm) | 4 on the side and 5 at the bottom |
Box Body Material Quality | Q345 manganese steel plate |
Compression Density (t/m ³） | 0.6-0.8 |
Working ambient temperature (℃) | -20~45 |
Sewage Tank Capacity (L) | 600 |
Filling cycle time (S) | ≤35 |
Compression cycle time (S) | ≤15 |
Uninstall cycle time (S) | ≤60 |
Operating Mode | Automatic + Manual |
Max Passengers Allowed | 3 |
[Chassis Technical Parameters] | |
Brand Name | SHACMAN |
Brake | Air brake/oil brake |
Fuel type | Diesel |
Engine Power（kw） | 180 |
Front Axle/Rear Axle (t) | 7.5/16/16 |
Gearbox Model | 12-speed manual |
Number of axes | 6*4 |
Wheelbase (mm) | 4350+1400 |
Number of tires | 10 |
Tire size | 11.00R20 18PR |
