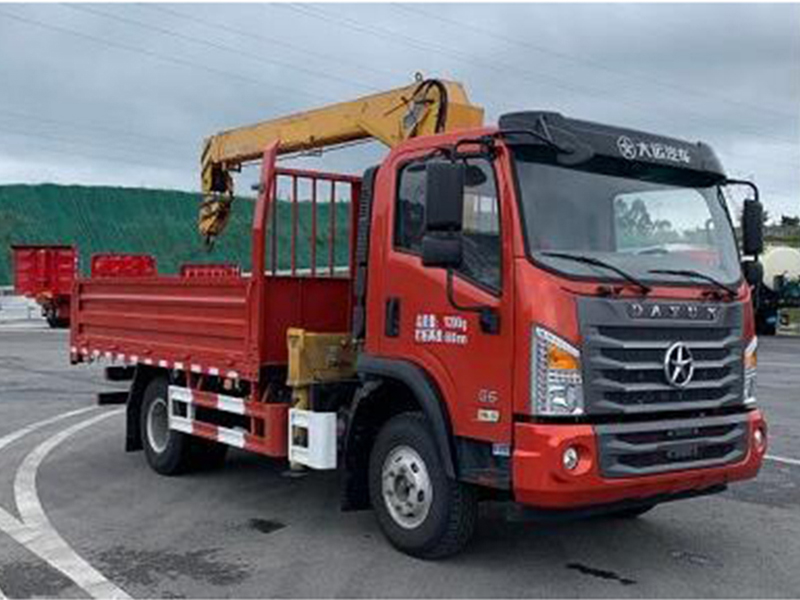

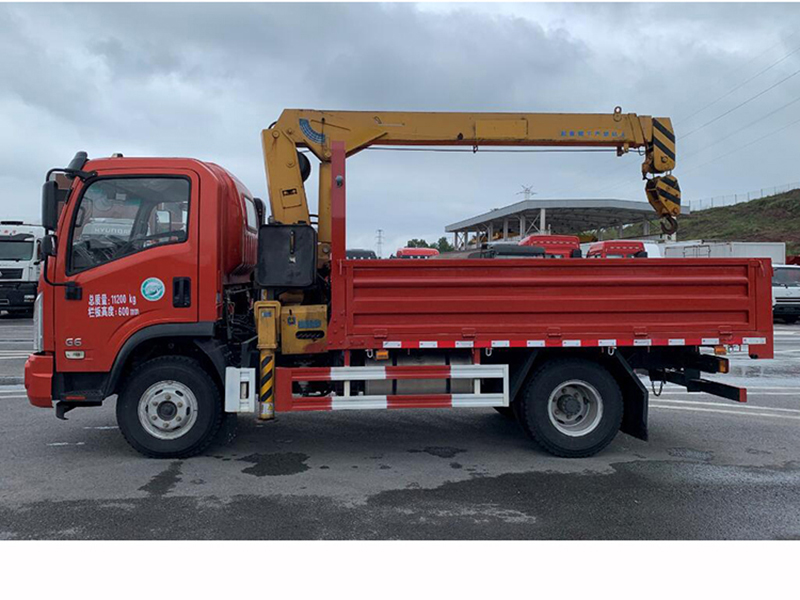

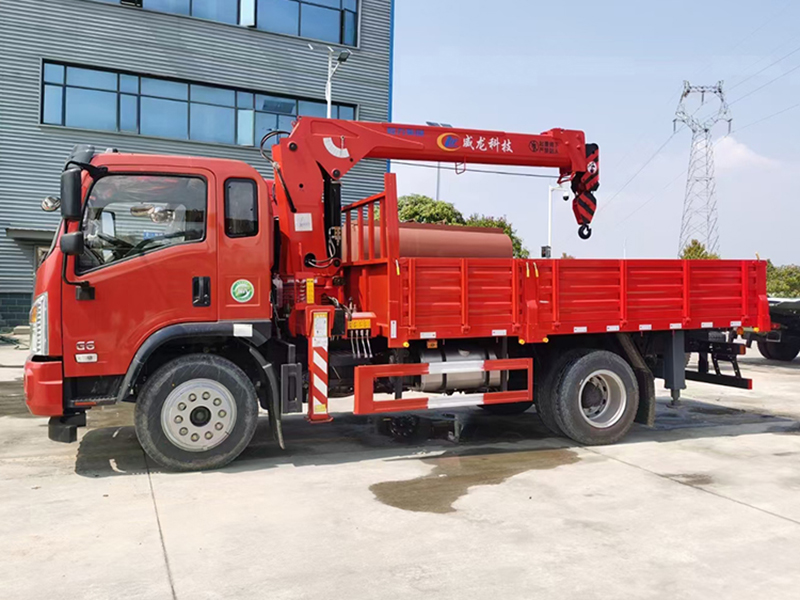

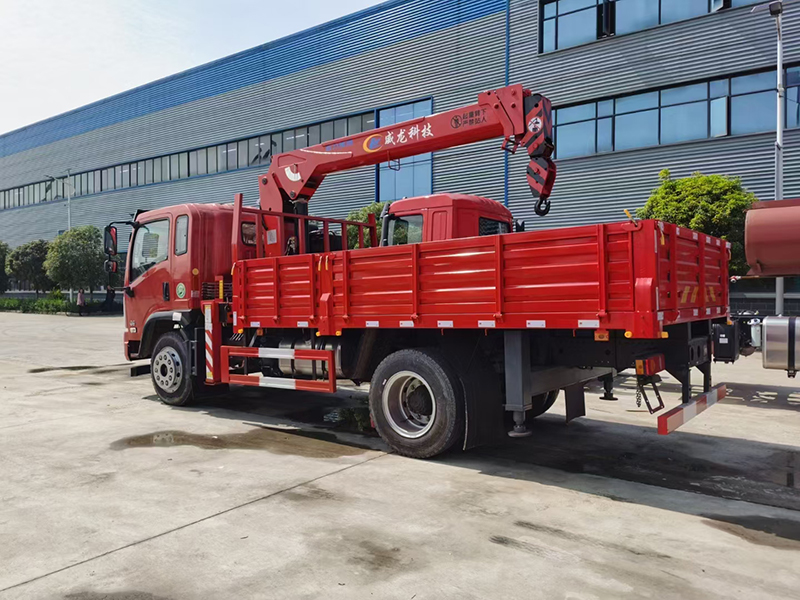

Dayun flatbed truck crane 5ton truck mounted crane telescopic boom
Crane truck is also called crane with truck , Truck mounted crane , crane mounted cargo truck , lorry mounted crane , truck mounted boom lift , truck with loading crane , boom crane , boom crane truck , articulated crane truck , Is used to lift the cargo , load , transport and unload heavy stuff .
There are telescopic boom cranes and knuckle boom cranes , covering a wide range of capacities as follow :
Telescopic boom crane :2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton
Knuckle boom crane : 1 ton , 2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton
Technical date :
Vehicle Parameters | |||
General | Vehicle Model | CLW5040JSQE | |
Vehicle Brand | XDR | ||
Chassis Brand | Dayun | ||
Overall Dimension(mm) | 5995×2150,2290×2980,3000 | ||
Box Dimension(mm) | 3300×2050×400 | ||
GVW/Curb/Rated loading Weight(kg) | 6495/4490/2050 | ||
Chassis Parameters | |||
Cab | Cab Seat | 2 | |
Air Conditioner | Optional | ||
Engine | Fuel Type | diesel | |
Engie Model | CY4100Q | ||
Engine Brand | Chaochai | ||
Power | 80hp | ||
Displacement(cc) | 3707 | ||
Emmission Standard | Euro3 | ||
Chassis | Drive Type | 4*2 | |
Transmission | 5 speed, Manual | ||
Wheelbase(mm) | 3300 | ||
Tyre Specification | 7.00-16 | ||
Tyre No.(pcs) | 6+1 | ||
Max Speed(km/h) | 90 | ||
Paint | Yellow | ||
Straight Crane structure parameters (changxing brand) | |||
working height(m) | 9 | Maximum working radius(m) | 7 |
Max Hoisting weight(ton) | 2 | Arm structure type | Three section |
Rotation | 360°continuous rotary | Outrigger | H type,front only |
![[pics:title]](/static/upload/image/20251009/1760012565257481.jpg)
![[pics:title]](/static/upload/image/20251009/1760012565736803.jpg)
![[pics:title]](/static/upload/image/20251009/1760012565889186.jpg)
![[pics:title]](/static/upload/image/20251009/1760012566355333.jpg)
