CHU SHENG
【Vehicle Technical Parameters】 | |

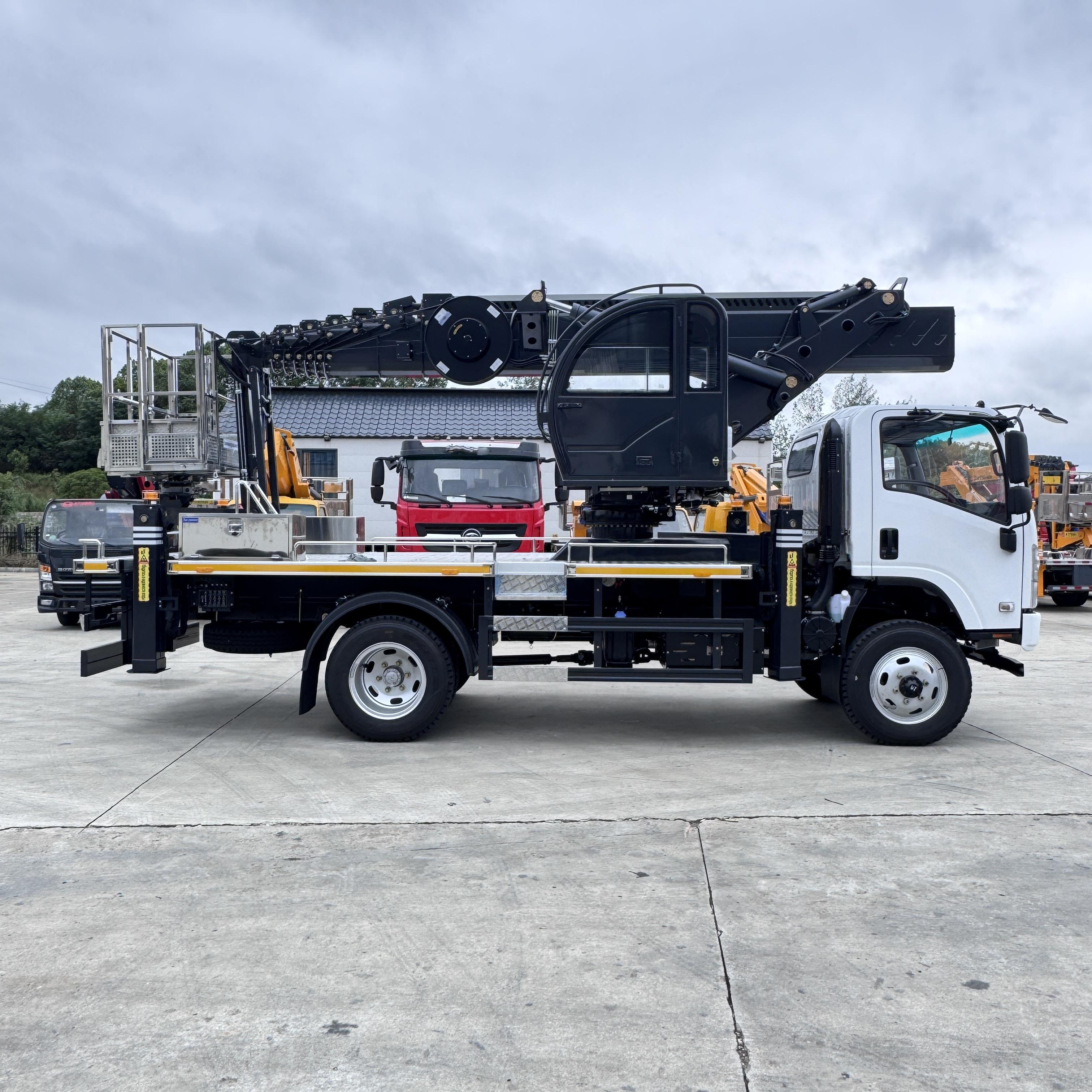

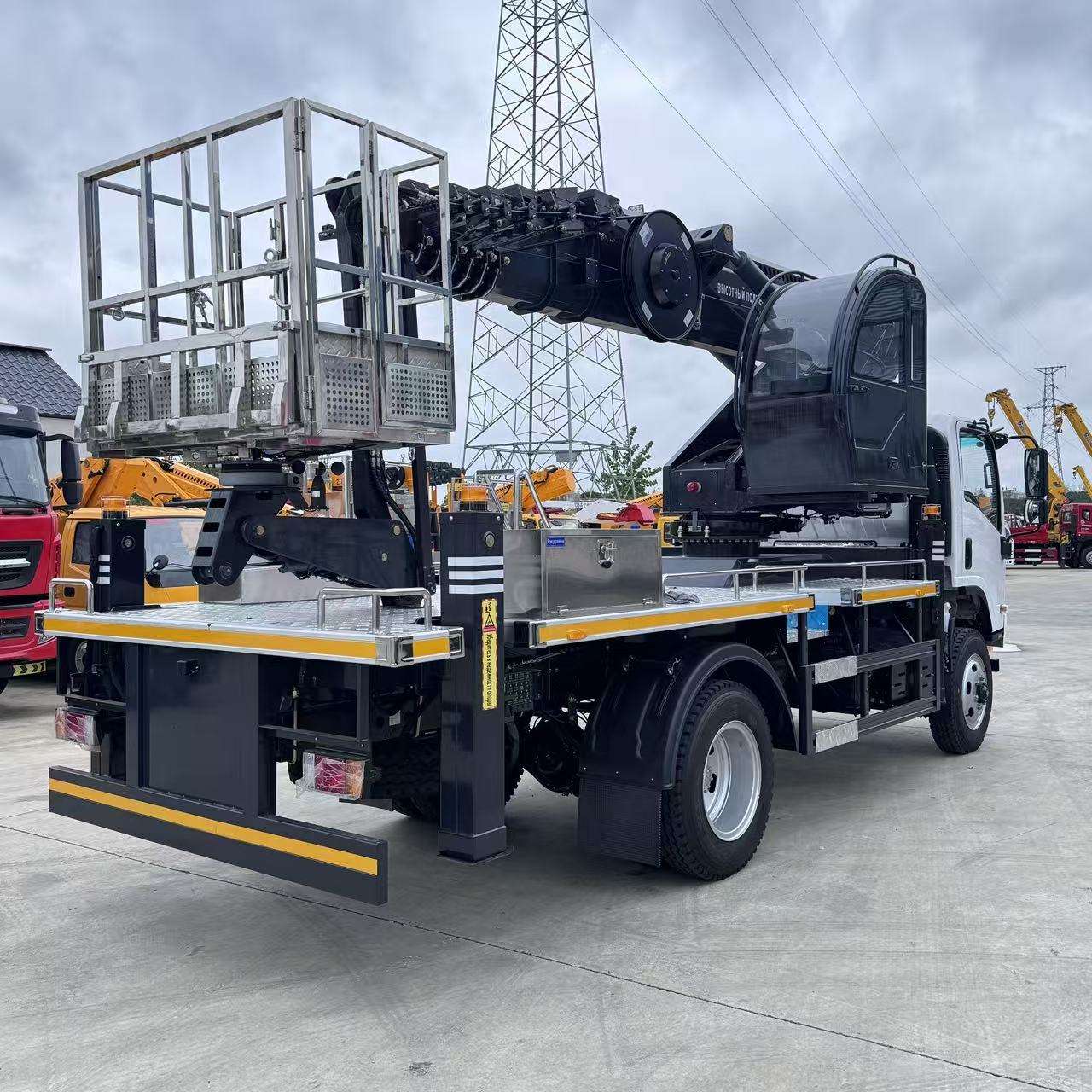

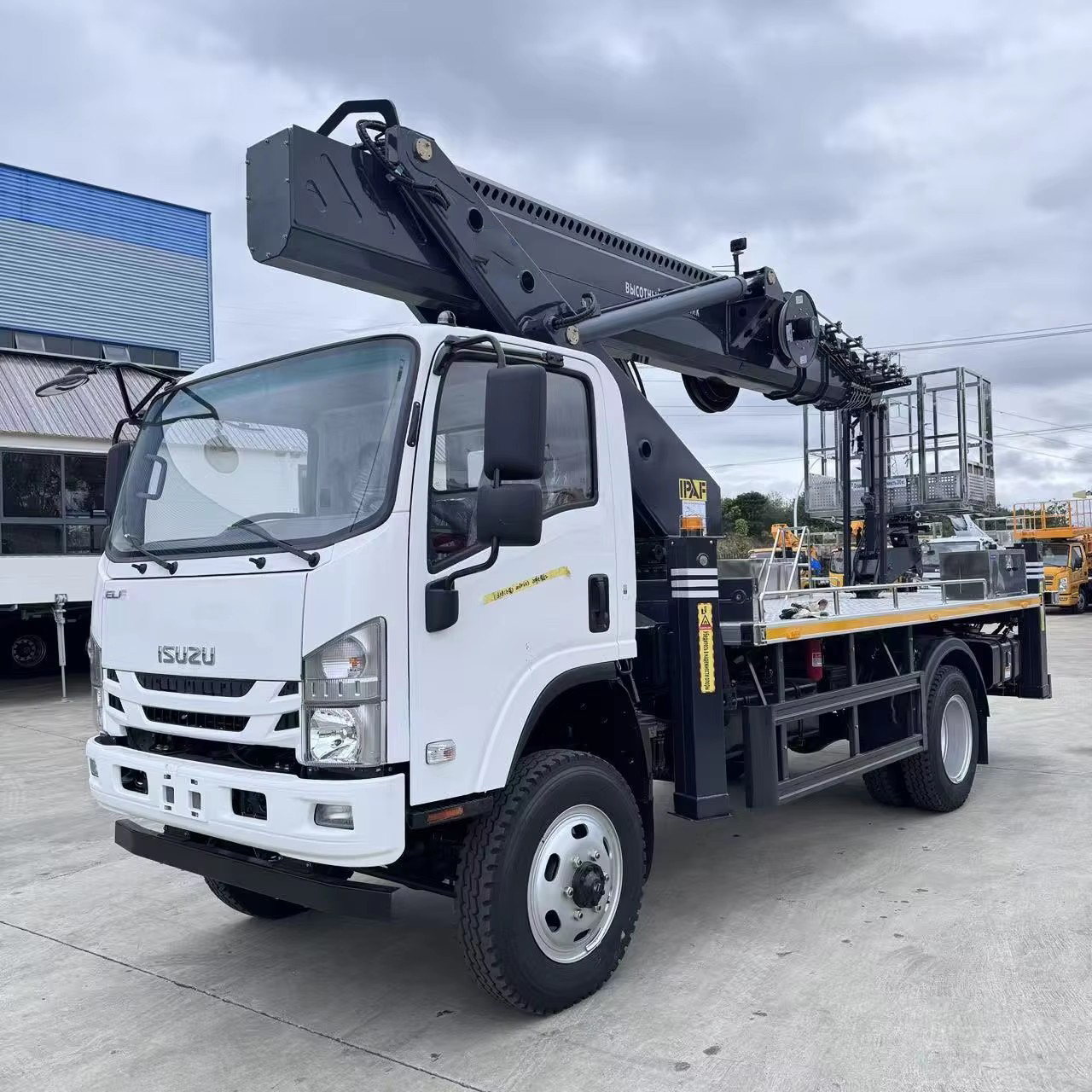

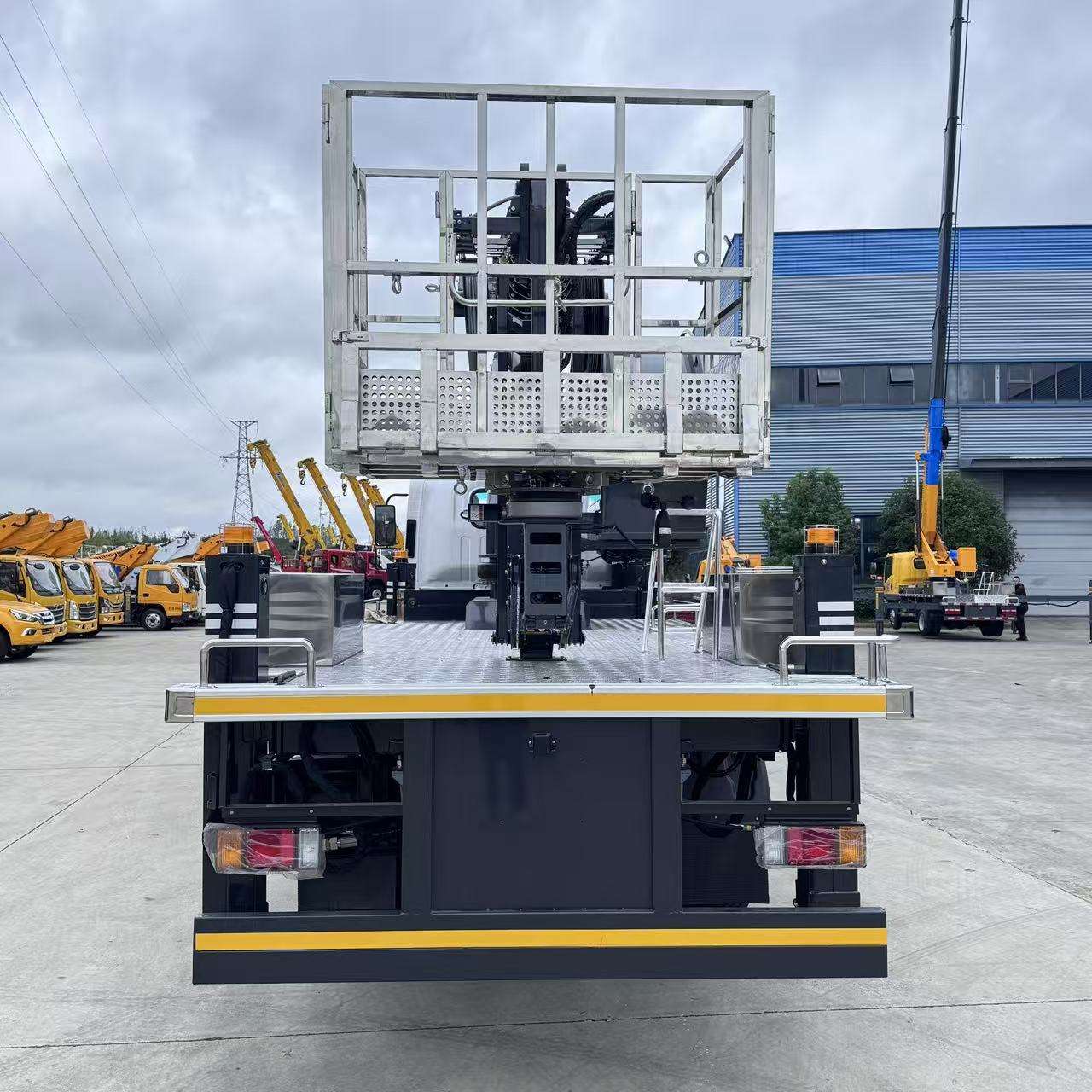

Product Name | Aerial Work Platform Truck |
Total Mass (Kg) | 13000 |
Maximum working height (m) | 33 |
Allowed Passengers | 2 |
Maximum working radius Amplitude (m) | 16 |
Leg Span (transverse/longitudinal) | 4500 |
Outrigger | Front V rear H type |
Slewing Gear | 360 ° Rotation |
Lifted weight (kg) | 1000 |
Overall Dimensions (mm) | 8300*2500*3990 |
Platform Rated Load(kg) | 400 |
Emergency Device | Emergency Pump |
Maximum speed (km/h) | 100 |
Warning Device | Engineering Strobe Light |
Operating Mode | Remote/Manual |
Horizontal Detection | Level Detector |
Jib Structure | Five section hexagonal |
【Chassis Technical Parameters】 | |
Brand Name | 1SUZU |
Fuel Type | Diesel Oil |
Engine power (kw) | 139 |
Number of Axles | 2 |
Number of Tires | 6 |
Front Axle/Rear Axle（t） | 3.5/8 |
Gearbox Model | 6-Speed Manual |
Wheelbase (mm) | 4500 |
Tire Size | 8.25R20 |
![[pics:title]](/static/upload/image/20251012/1760261261847378.jpg)
![[pics:title]](/static/upload/image/20251012/1760261256371727.jpg)
![[pics:title]](/static/upload/image/20251012/1760261266192914.jpg)
![[pics:title]](/static/upload/image/20251012/1760261256337392.jpg)
