CHU SHENG
【Vehicle Technical Parameters】 | |
Product Name | Aerial Work Platform Truck |
Total Mass (Kg) | 4300 |
Maximum working height (m) | 23 |
Allowed Passengers | 2 |
Maximum working radius Amplitude (m) | 12.5 |
Leg Span (transverse/longitudinal) | 3660/4300(mm) |
Outrigger | Front V rear H type |
Slewing Gear | 360 ° Rotation |
Lifted weight (kg) | 1000 |
Overall Dimensions (mm) | 5995*2100*3450 |
Platform Rated Load(kg) | 200 |
Emergency Device | Emergency Pump |
Maximum speed (km/h) | 100 |
Warning Device | Engineering Strobe Light |
Operating Mode | Remote/Manual |
Horizontal Detection | Level Detector |
Jib Structure | Five section hexagonal |
【Chassis Technical Parameters】 | |
Brand Name | Howo |
Fuel Type | Diesel Oil |
Engine power (kw) | 85 |
Number of Axles | 2 |
Number of Tires | 6 |
Front Axle/Rear Axle（t） | 2/3.5 |
Gearbox Model | 6-Speed Manual |
Wheelbase (mm) | 2800 |
Tire Size | 7.00R16 |

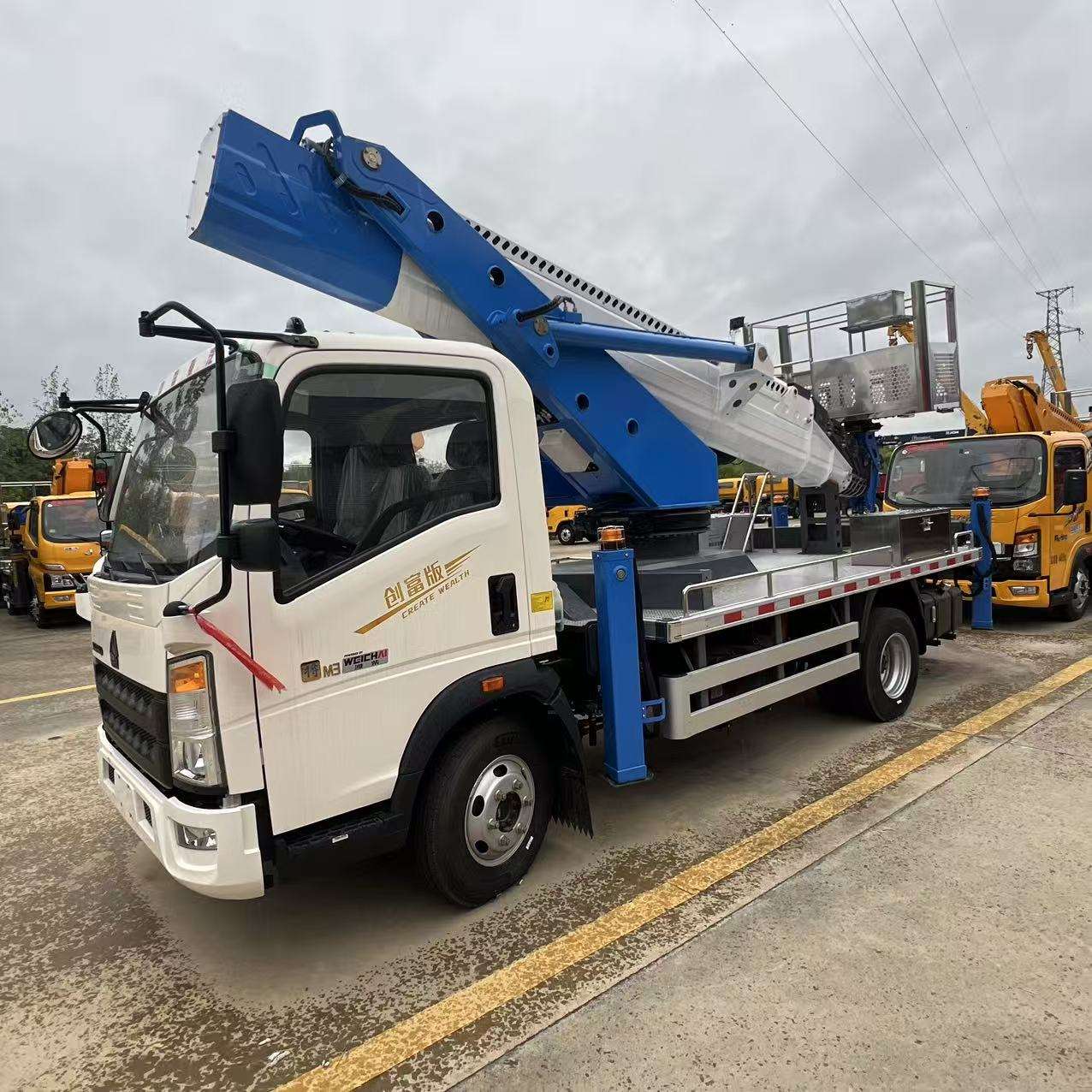

![[pics:title]](/static/upload/image/20251012/1760261646823248.jpg)

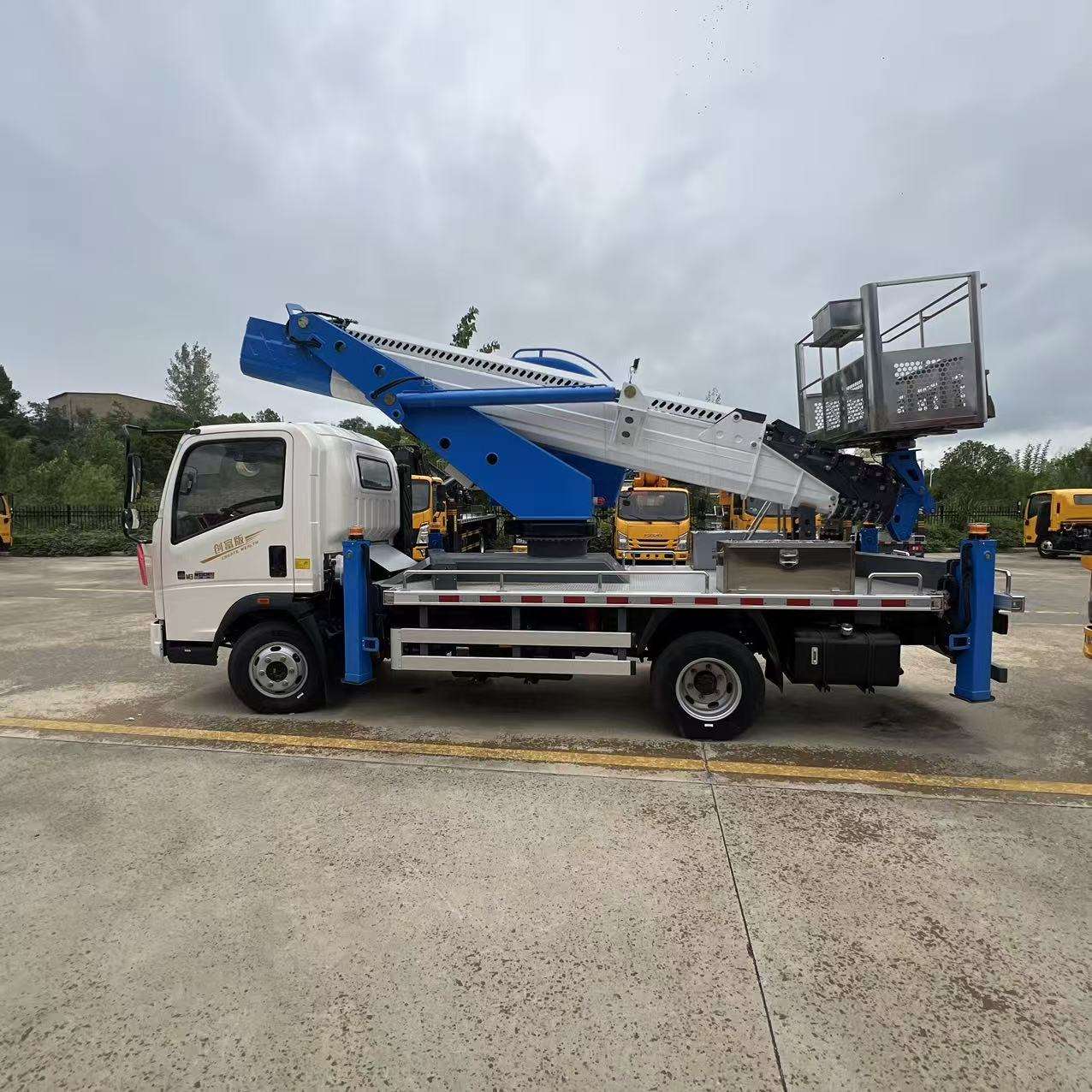

![[pics:title]](/static/upload/image/20251012/1760261646706771.jpg)

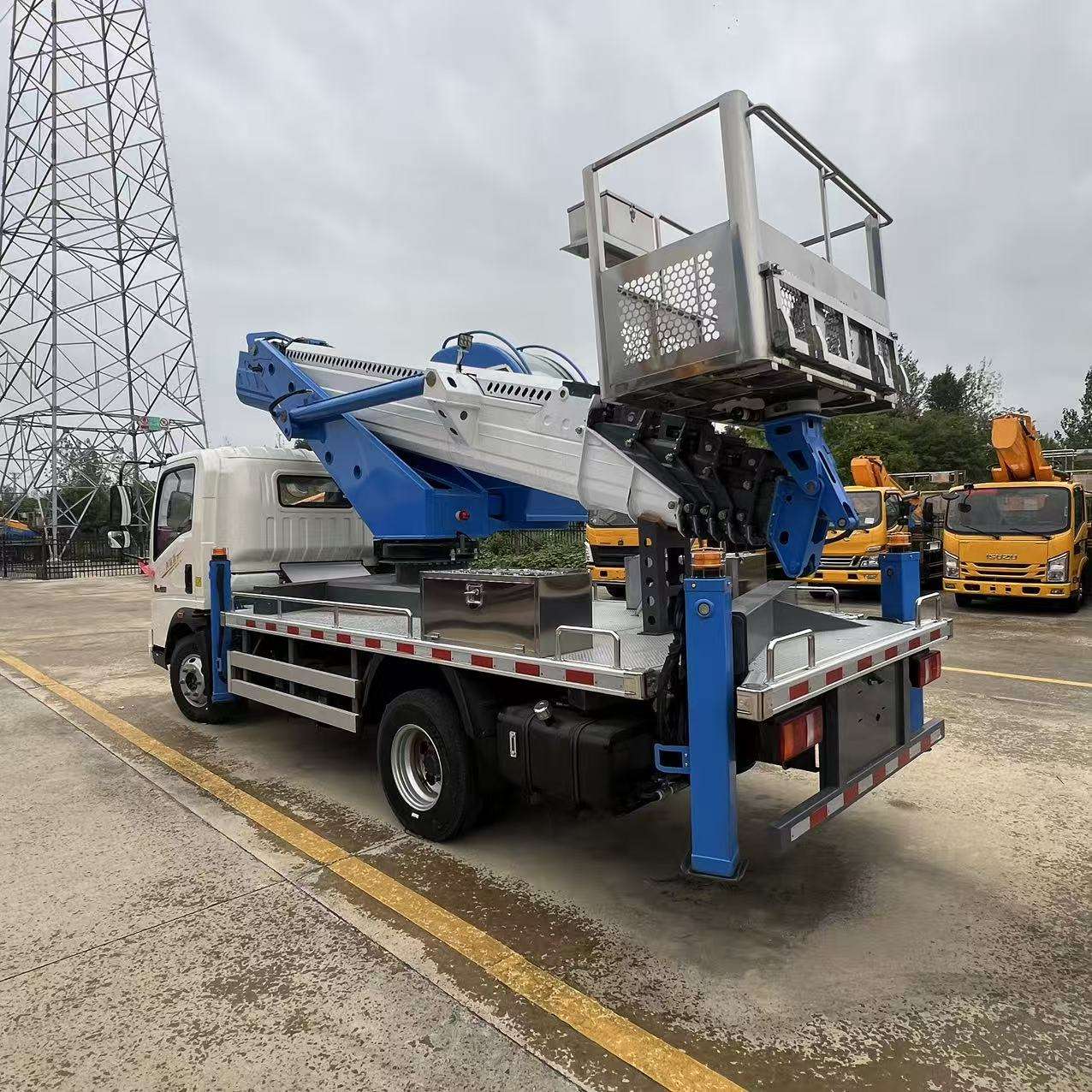

![[pics:title]](/static/upload/image/20251012/1760261645216899.jpg)

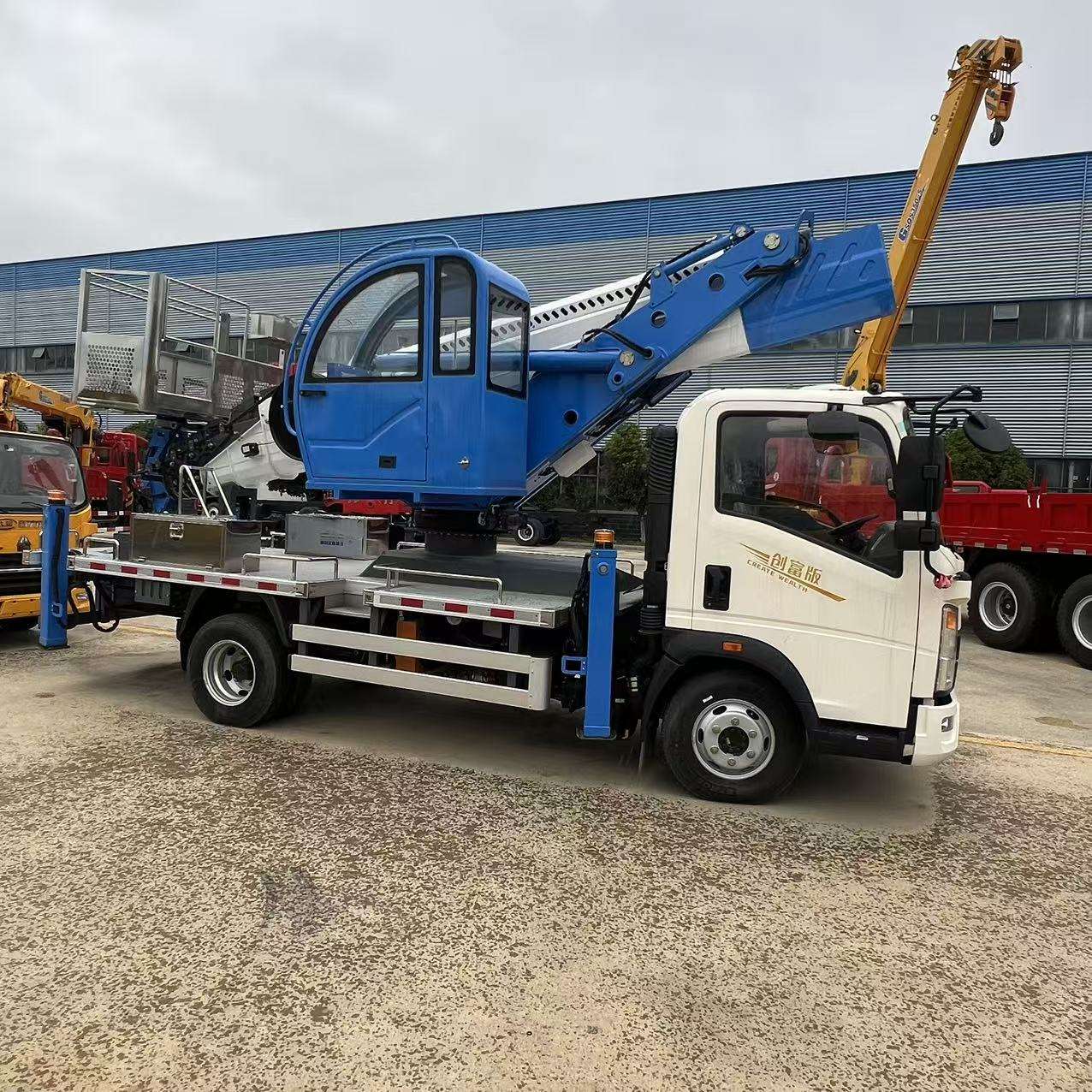

![[pics:title]](/static/upload/image/20251012/1760261647587669.jpg)
