【Vehicle Technical Parameters 】 | |

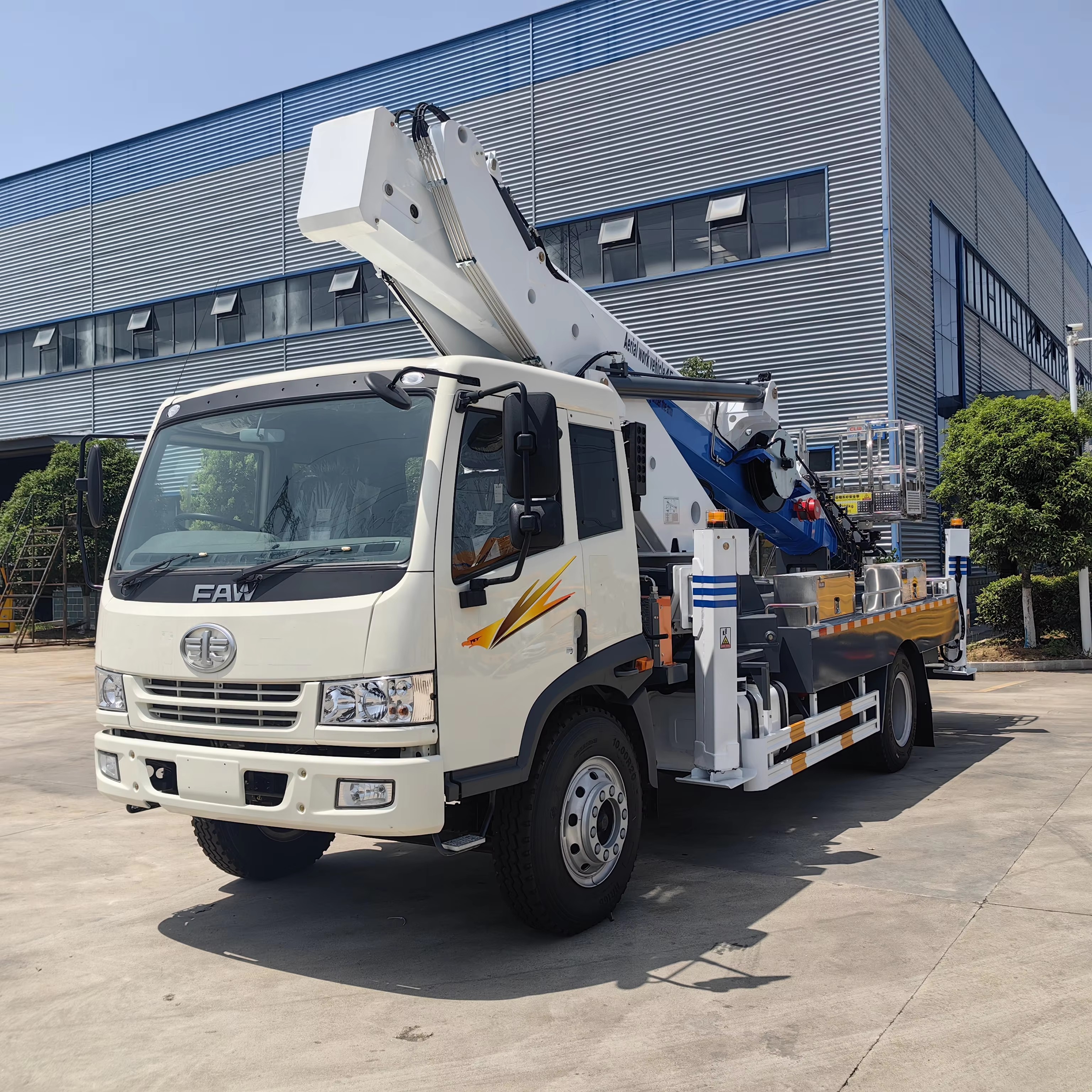

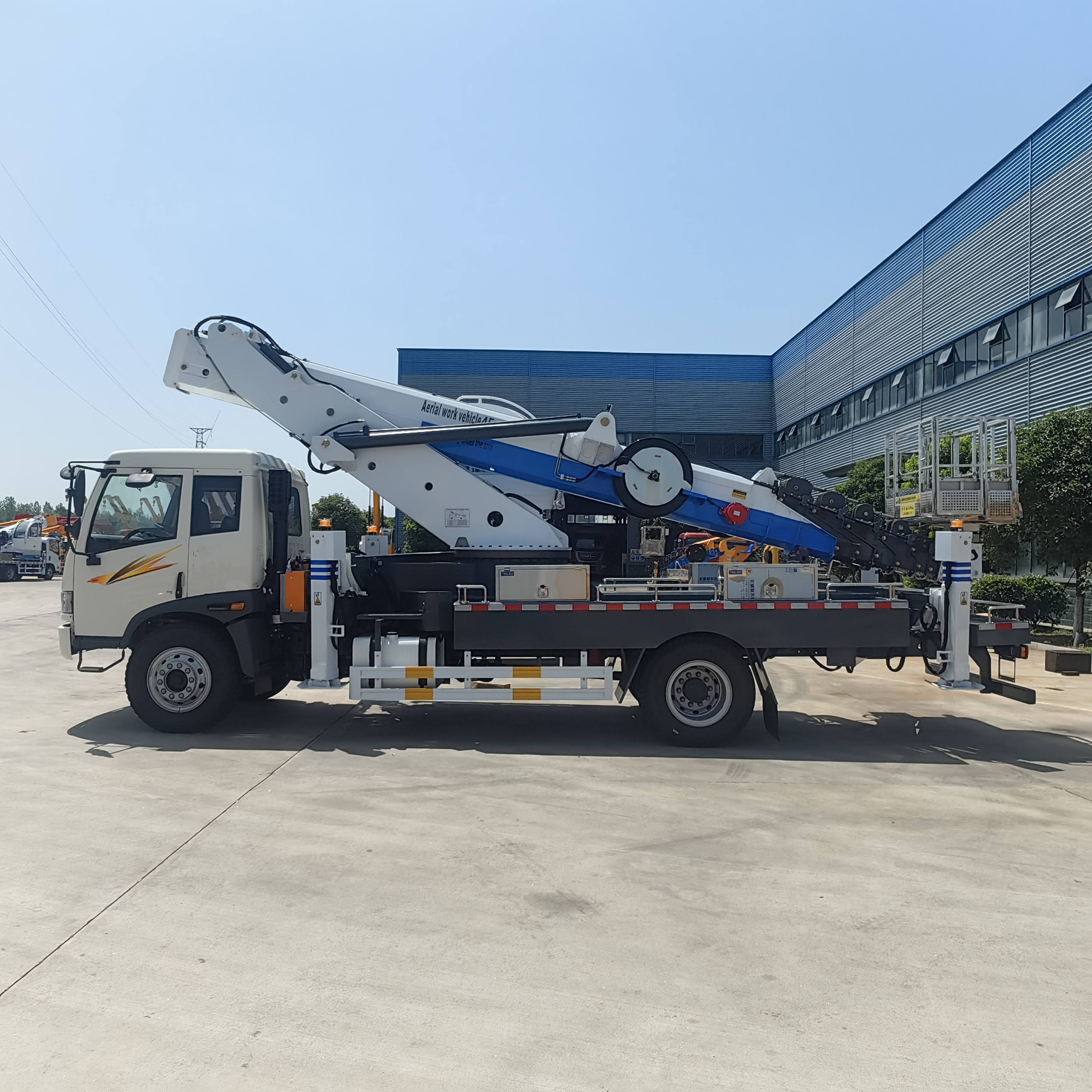

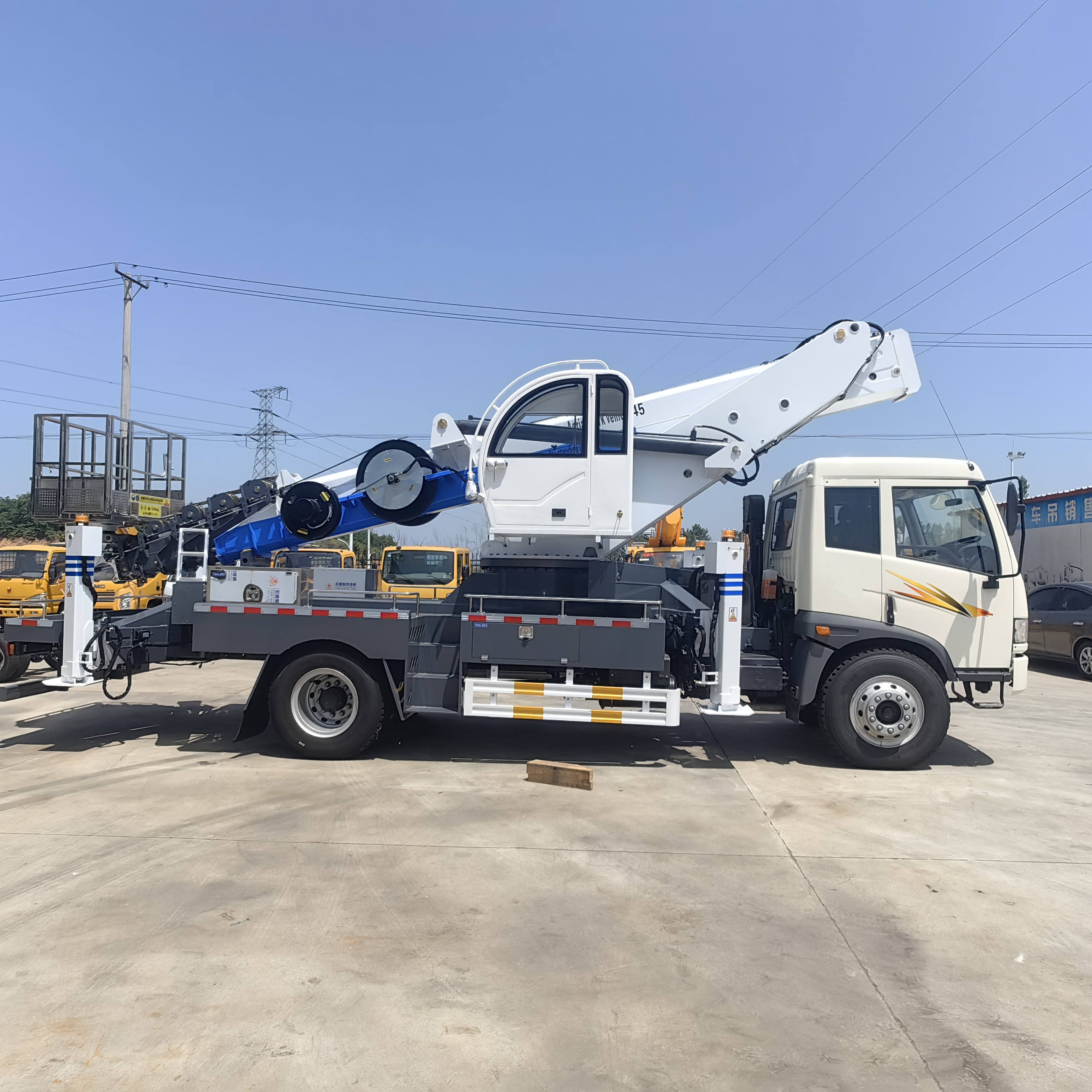

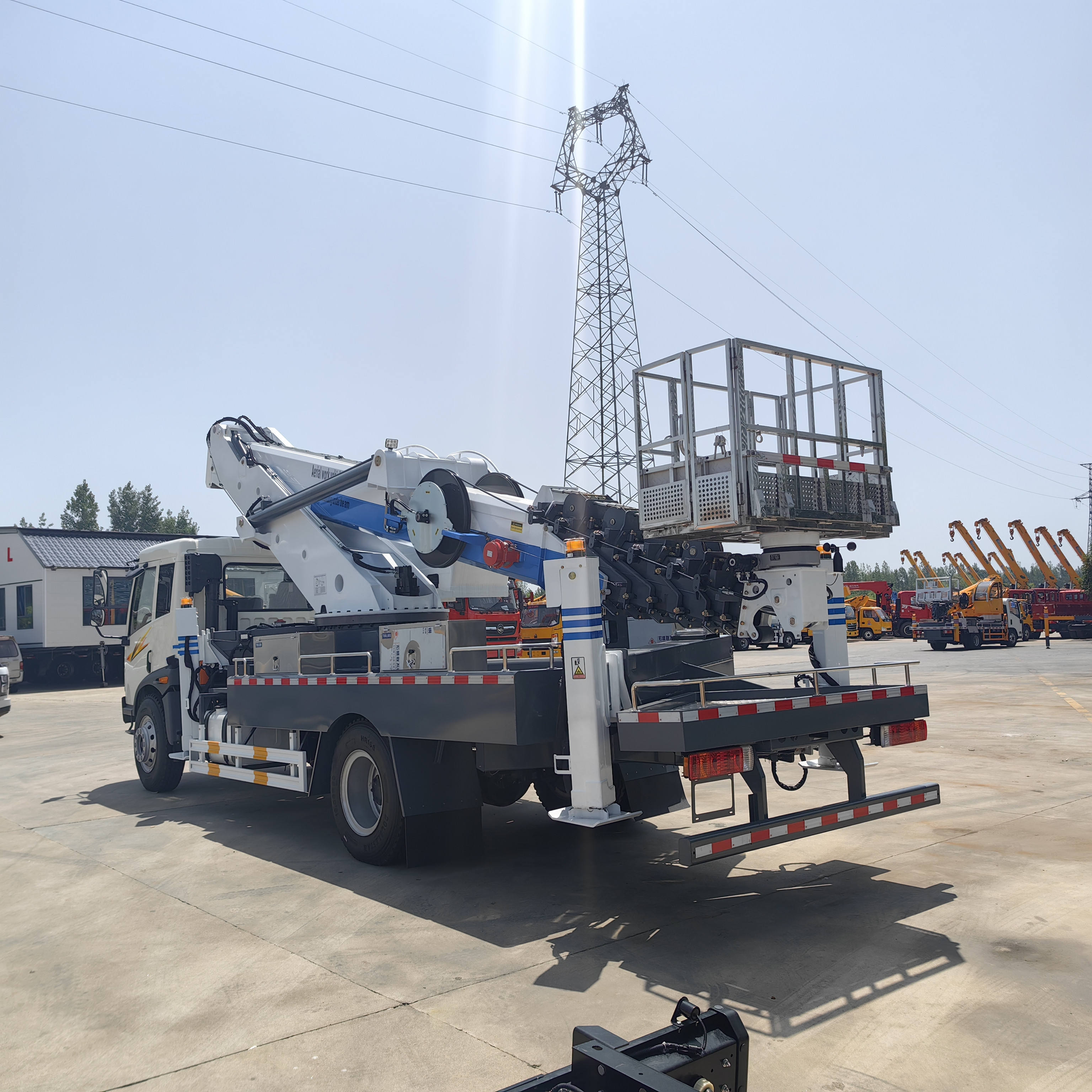

Product Name | Aerial work platform truck |
Total Mass (Kg) | 18000 |
Maximum Operating Height（m） | 45 |
Allowed Passengers | 2 |
Maximum Operating Radius Amplitude（m） | 24 |
Leg Span (transverse/longitudinal) | 3660/4300（mm） |
Outrigger | Front V and rear H type |
Slewing Gear | 360 ° Rotate |
Lifting Weight（kg） | 1000 |
Overall Dimensions (mm) | 6800*1933*2933 |
Platform Rated Load(kg) | 200 |
Emergency Device | Emergency pump |
Maximum Speed (km/h) | 100 |
Warning Device | Engineering strobe lights |
Operating Mode | Remote/Manual |
Horizontal Detection | Level detector |
Jib Structure | Five-section hexagon |
【Chassis Technical Parameters】 | |
Brand Name | FAW |
Fuel Type | diesel fuel |
Engine Power（KW） | 161 horsepower |
Number of Axles | 2 |
Number of tires | 6 |
Gearbox | 8 steps manual |
Wheelbase (mm) | 4700 |
Tire Size | 9.00R20 |
