CHU SHENG
【Vehicle Technical Parameters 】 | ||

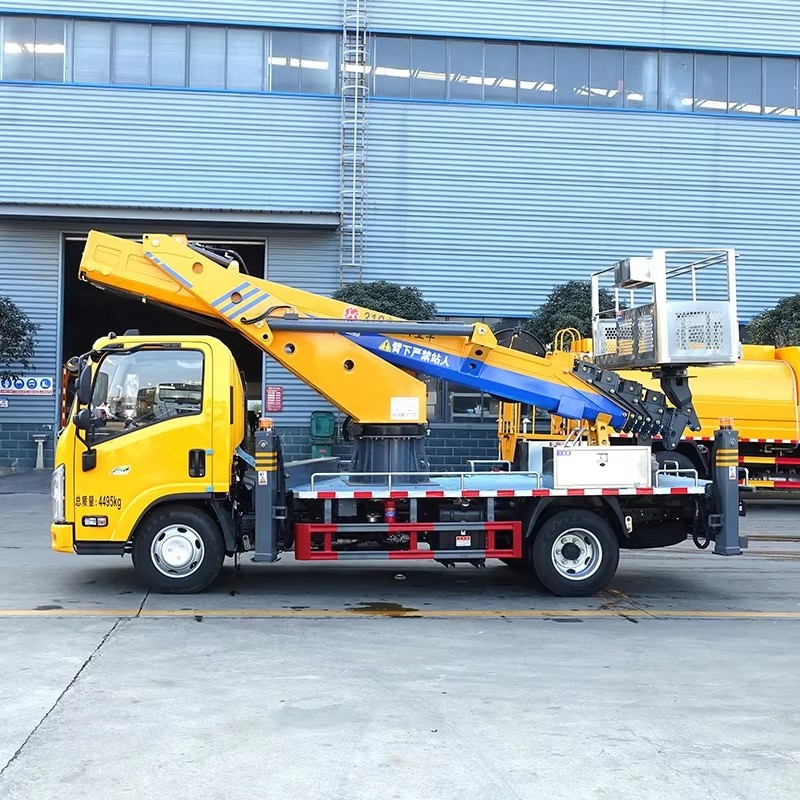

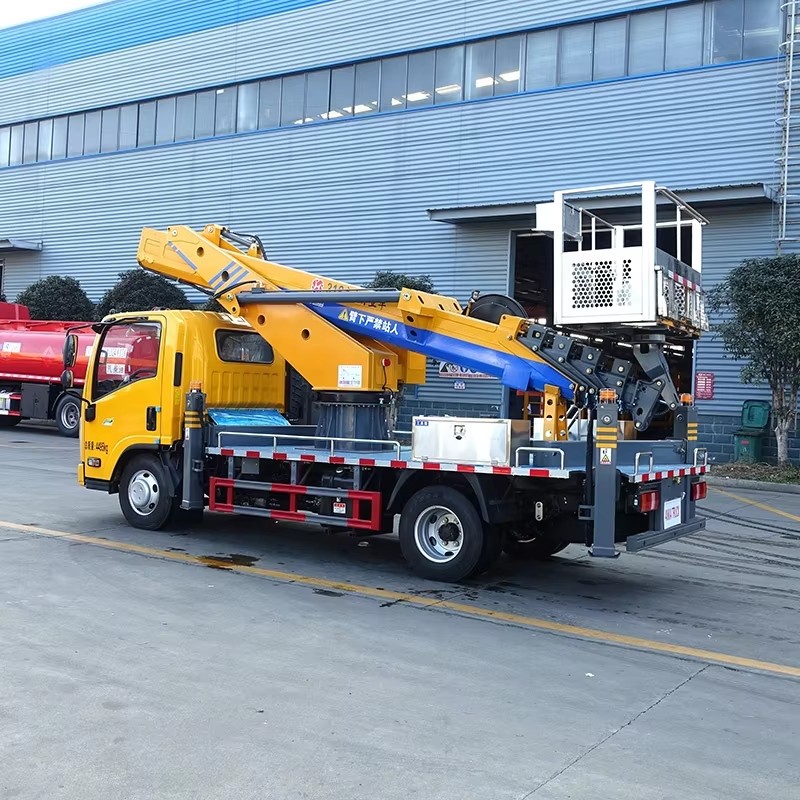

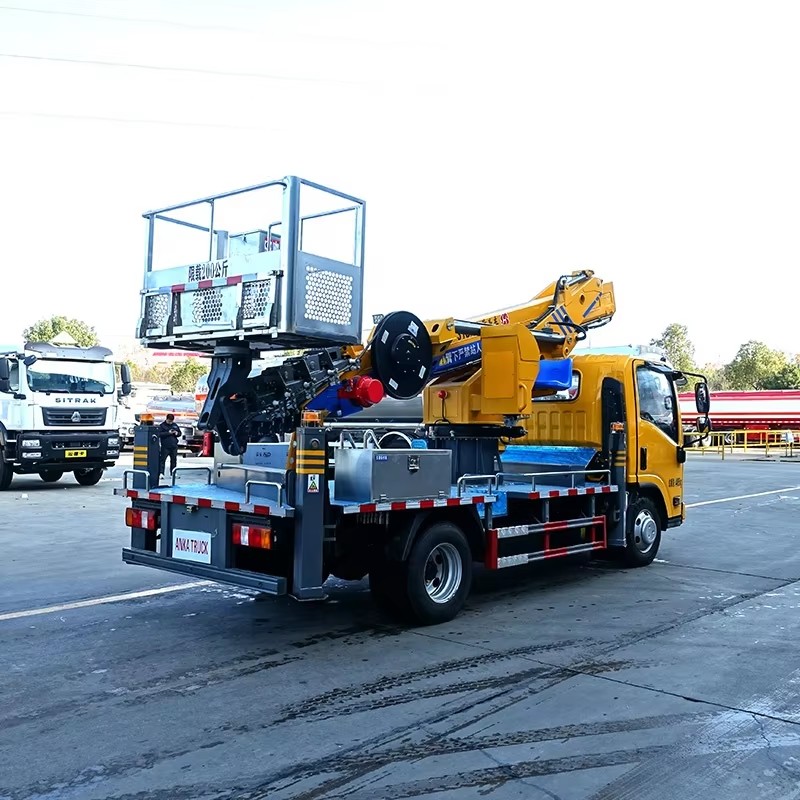

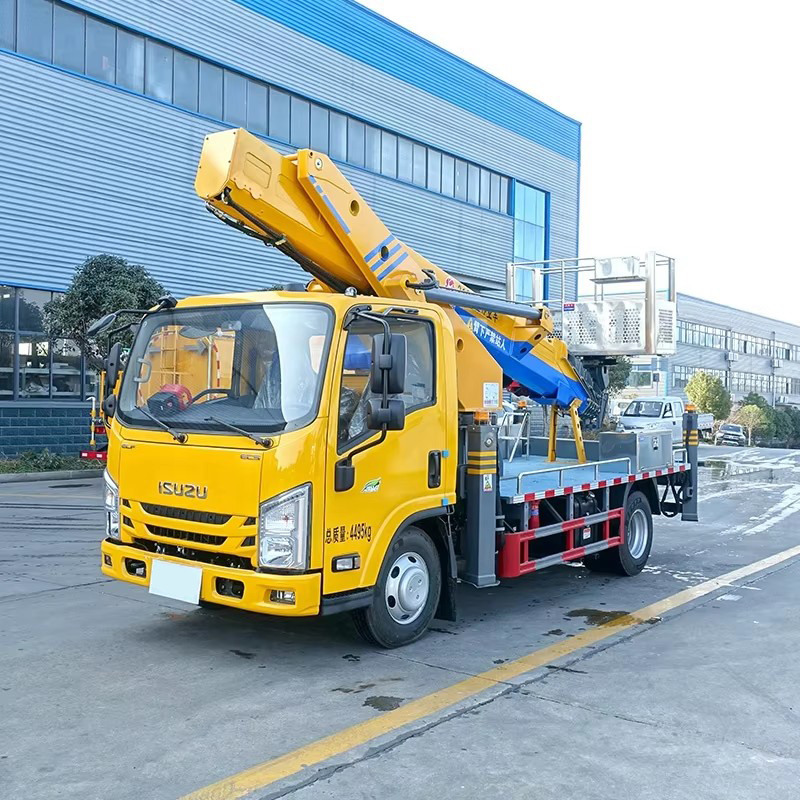

Product Name | Aerial Work Platform Truck | |
Total Mass (Kg) | 4300 | |
Maximum Operating Height（m） | 23 | |
Allowed Passengers | 2 | |
Maximum Operating Radius Amplitude（m） | 12.5 | |
Leg Span (transverse/longitudinal) | 3660/4300(mm) | |
Outrigger | Front V rear H type | |
Slewing Gear | 360 ° Rotation | |
Lifting Weight（kg） | 1000 | |
Overall Dimensions (mm) | 5995*2080*3100 | |
Platform Rated Load(kg) | 200 | |
Emergency Device | Emergency Pump | |
Maximum Speed (km/h) | 100 | |
Warning Device | Engineering Strobe Light | |
Operating Mode | Remote/Manual | |
Horizontal Detection | Level Detector | |
Jib Structure | Five section hexagonal | |
【Chassis Technical Parameters】 | ||
Brand Name | 1SUZU | |
Fuel Type | Diesel Oil | |
Engine Power（KW） | 70 | |
Number of Axles | 2 | |
Number of Tires | 6 | |
Front Axle/Rear Axle（t） | 2/3.5 | |
Gearbox Model | 6-Speed Manual | |
Wheelbase (mm) | 2800 | |
Tire Size | 7.00R16 | |
