Vehicle Technical Parameters | ||

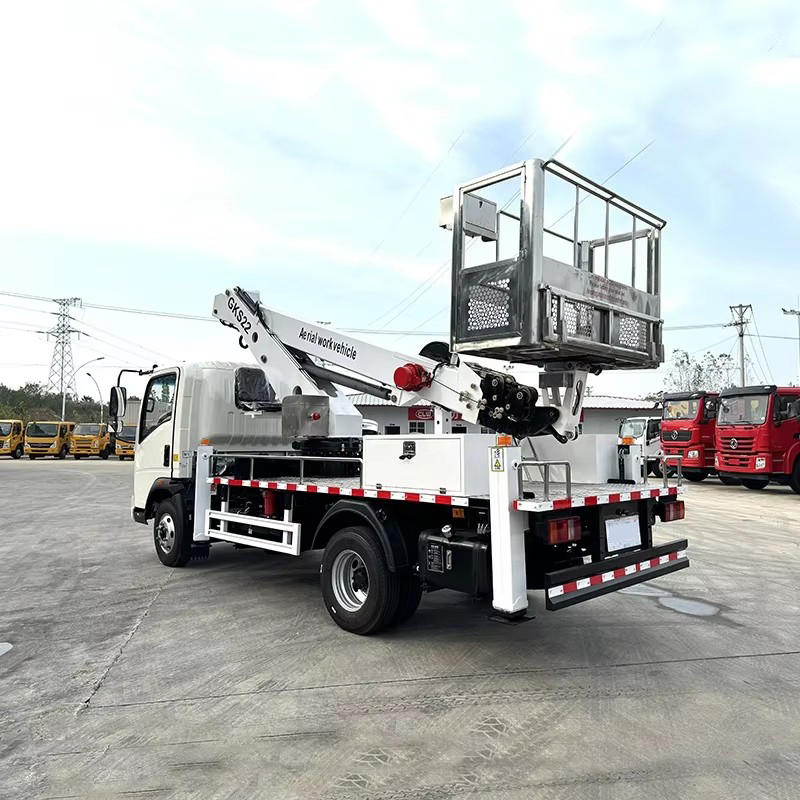

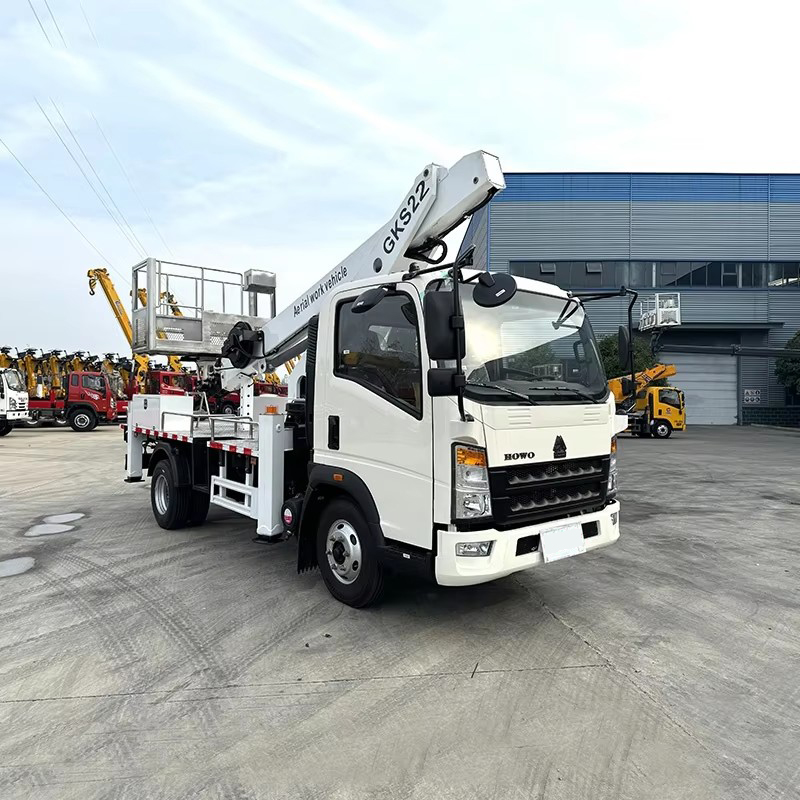

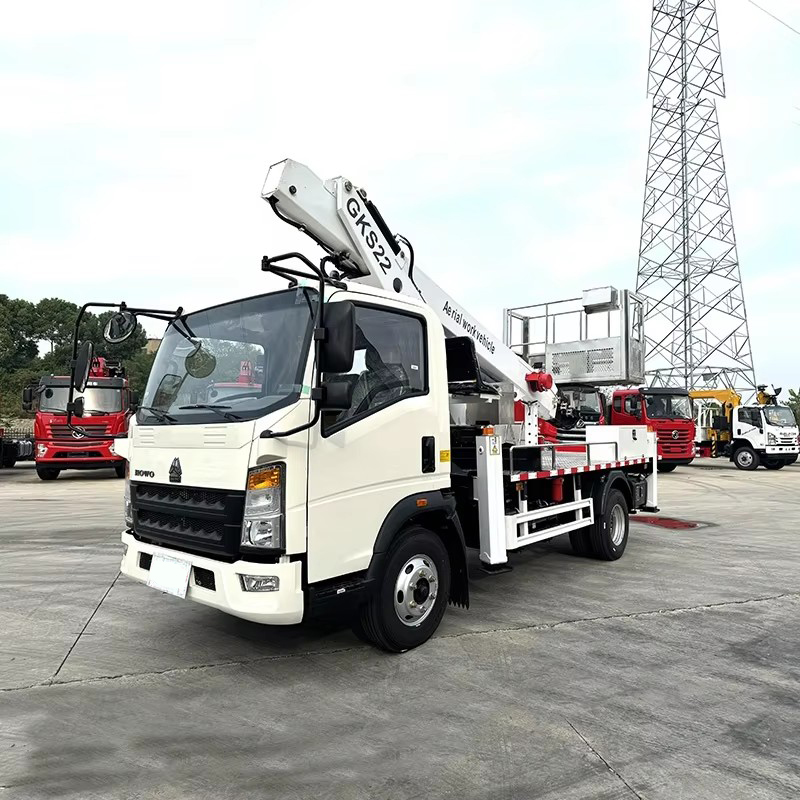

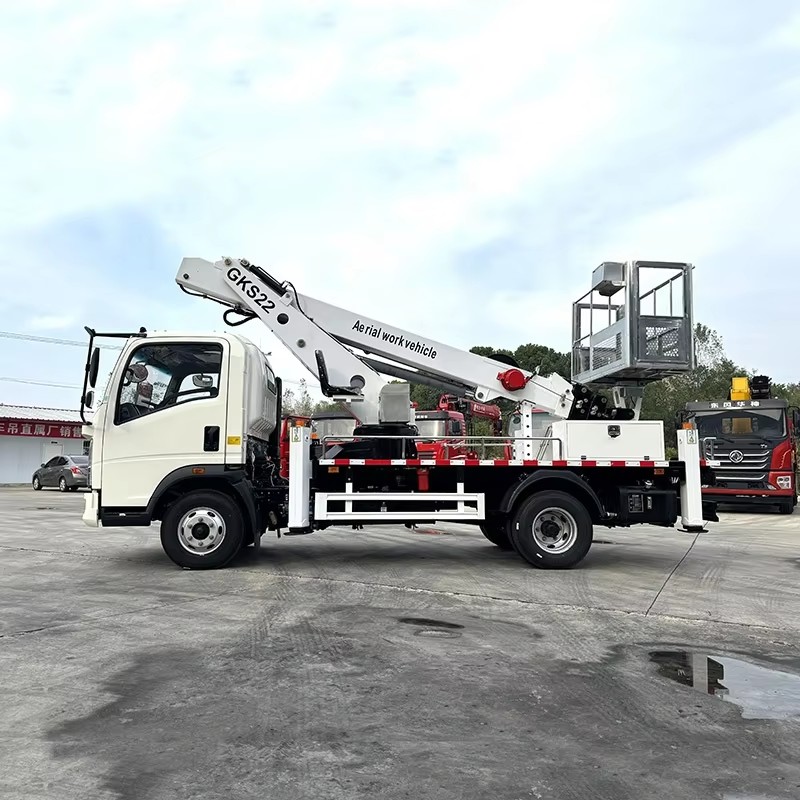

Product Name | Aerial Work Platform Truck | |
Total Mass (Kg) | 5300 | |
Maximum Operating Height(m) | 22 | |
Max Person Allowed in the Cab | 3 | |
Maximum Operating Radius Amplitude(m) | 10 | |
Leg Span (transverse/longitudinal) | 4600/4600(mm) | |
Outrigger | Front V rear H type | |
Slewing Gear | 360 ° Rotation | |
Overall Dimensions (mm) | 5995*1960*3000 | |
Platform Rated Load(kg) | 200 | |
Warning Device | Engineering Strobe Light | |
Operating Mode | Remote/Manual | |
Horizontal Detection | Level Detector | |
Jib Structure | Four section hexagonal shape | |
Chassis Technical Parameters | ||
Chassis Brand | Howo | |
Fuel Type | Diesel Oil | |
Engine Power(KW) | 95 | |
Number of Axles | 2 | |
Number of Tires | 6 | |
Front Axle/Rear Axle(t) | 1.8/3.5 | |
Gearbox Model | 5-Speed Manual | |
Wheelbase (mm) | 3280 | |
Tire Size | 7.00R16LT | |
![[pics:title]](/static/upload/image/20251023/1761191171368489.jpg)
![[pics:title]](/static/upload/image/20251023/1761191170433980.jpg)
![[pics:title]](/static/upload/image/20251023/1761191171706580.jpg)
![[pics:title]](/static/upload/image/20251023/1761191171873780.jpg)
