Vehicle Technical Parameters | ||

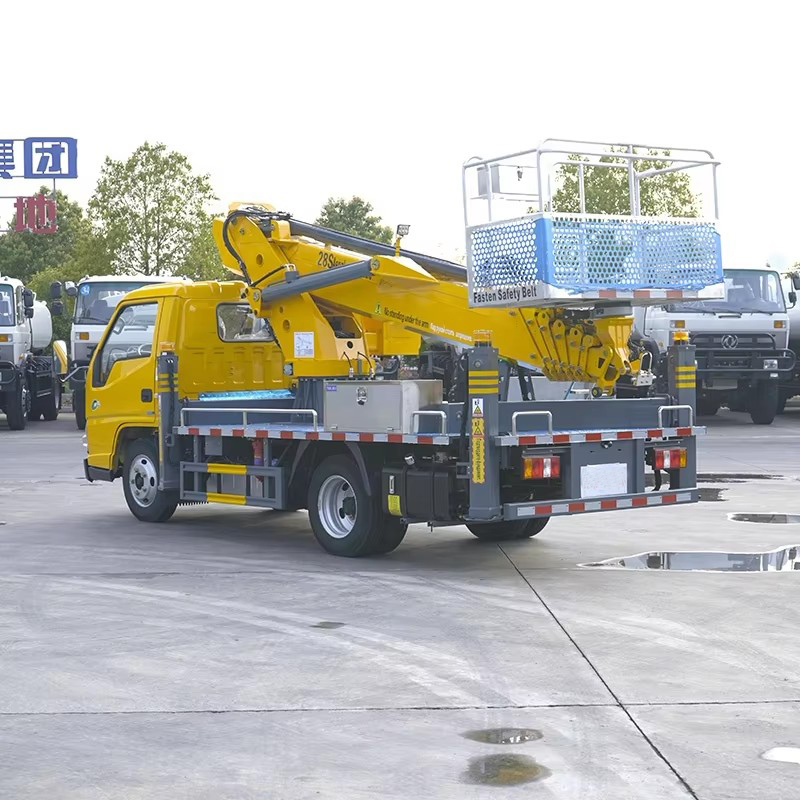

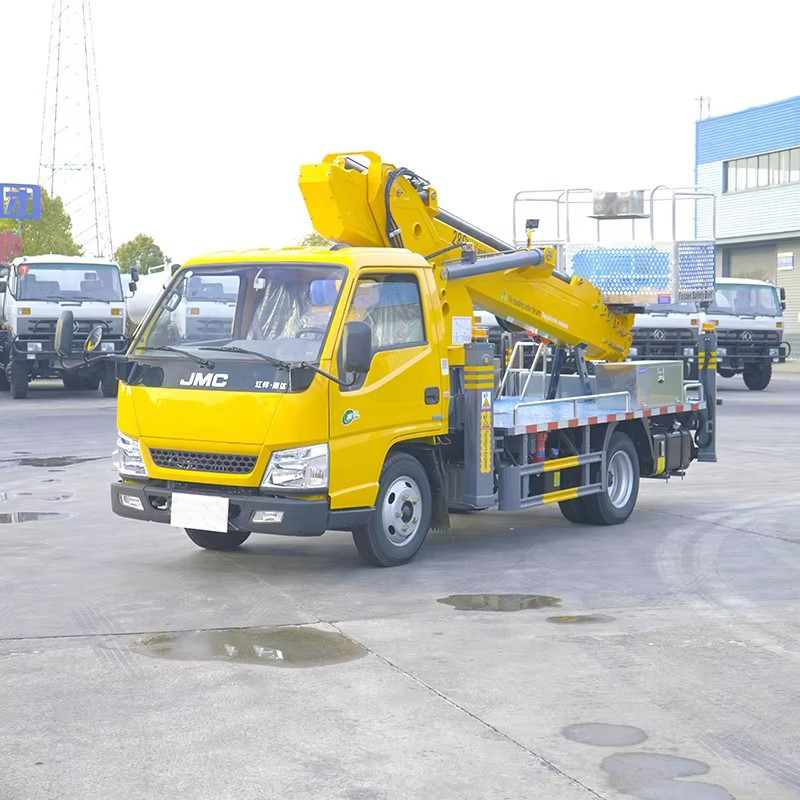

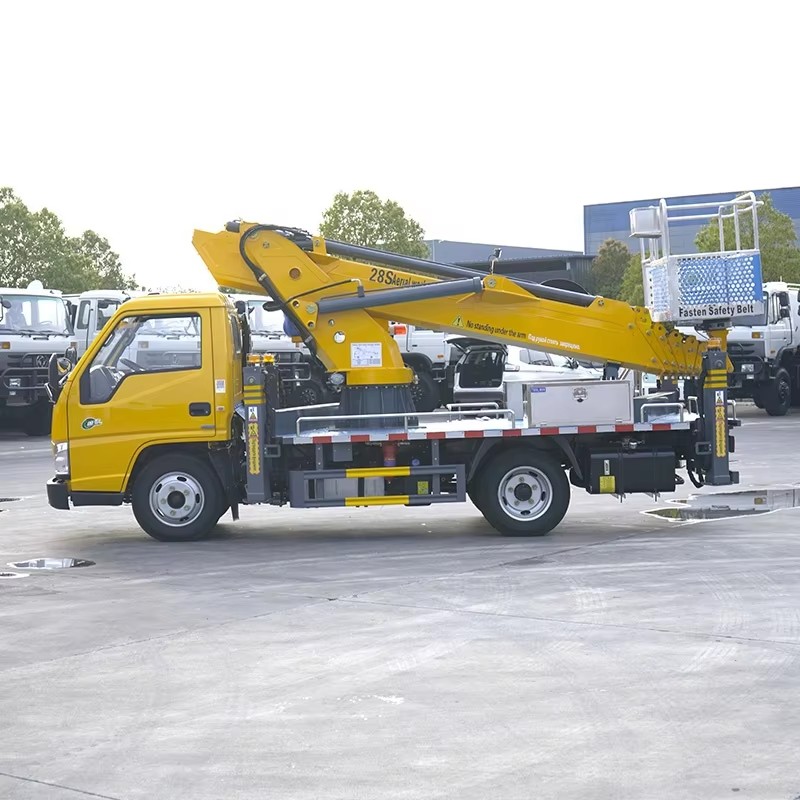

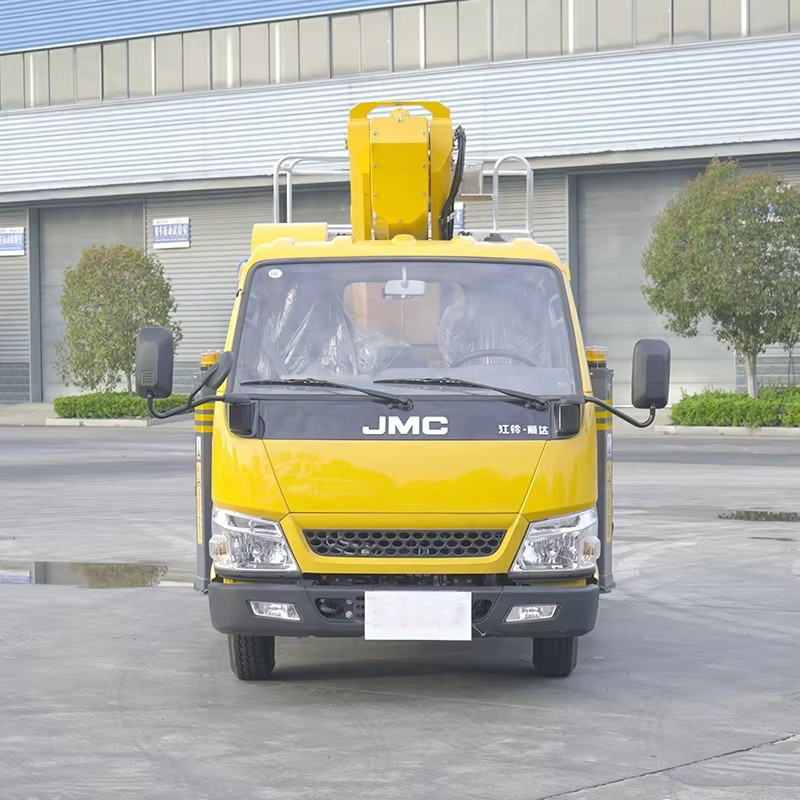

Product Name | Aerial Work Platform Truck | |
Total Mass (Kg) | 4800 | |
Maximum Operating Height(m) | 28 | |
Max Person Allowed in the Cab | 3 | |
Maximum Operating Radius Amplitude(m) | 11 | |
Leg Span (transverse/longitudinal) | 4600/4600(mm) | |
Outrigger | Front V rear H type | |
Slewing Gear | 360 ° Rotation | |
Overall Dimensions (mm) | 5995*1960*2100 | |
Platform Rated Load(kg) | 200 | |
Warning Device | Engineering Strobe Light | |
Operating Mode | Remote/Manual | |
Horizontal Detection | Level Detector | |
Jib Structure | Four section hexagonal shape | |
Chassis Technical Parameters | ||
Chassis Brand | JMC | |
Fuel Type | Diesel Oil | |
Engine Power(KW) | 88 | |
Number of Axles | 2 | |
Number of Tires | 6 | |
Front Axle/Rear Axle(t) | 1.8/3.5 | |
Gearbox Model | 6-Speed Manual | |
Wheelbase (mm) | 3280 | |
Tire Size | 7.00R16LT | |
