CHU SHENG
[Vehicle Technical Parameters] | |||
Product Name | Water tank truck/water truck/drink truck | ||
Tank Volume(m³) | 25000 | ||
Border dimensions (mm) | 10260*2550*3260 | ||
Tank thickness (mm) | 5 | ||
Tank Body Material | Q235 carbon steel | ||
Pump model | 50/110 | ||
Pump flow rate (m & sup3;/h) | 50 | ||
Water absorption depth (meters) | 7 | ||
Front spray width (meters) | 8 | ||
Rear nozzle width (meters) | 11 | ||
Tail flush width (meters) | 18 | ||
Water cannon range (meter) | 30-35 | ||
Truck paint | Sandblasting/rust-proof treatment | ||
Outlet ball valve | 50* stainless steel ball valve | ||
connect | Bolt connection | ||
【Chassis Technical Parameters] | |||
Chassis Brand | SHACMAN | ||
Brake | Air brake | ||
Type of fuel | Diesel | ||
Engine power (KW) | 257 | ||
Front axle/rear axle (t) | 5/13+13 | ||
Gearbox | 12-speed transmission | ||
Number of Axles | 3 | ||
Wheelbase (mm) | 4375+1400 | ||
Number of tires | 10 | ||
Tire specifications | 12.00R20 | ||

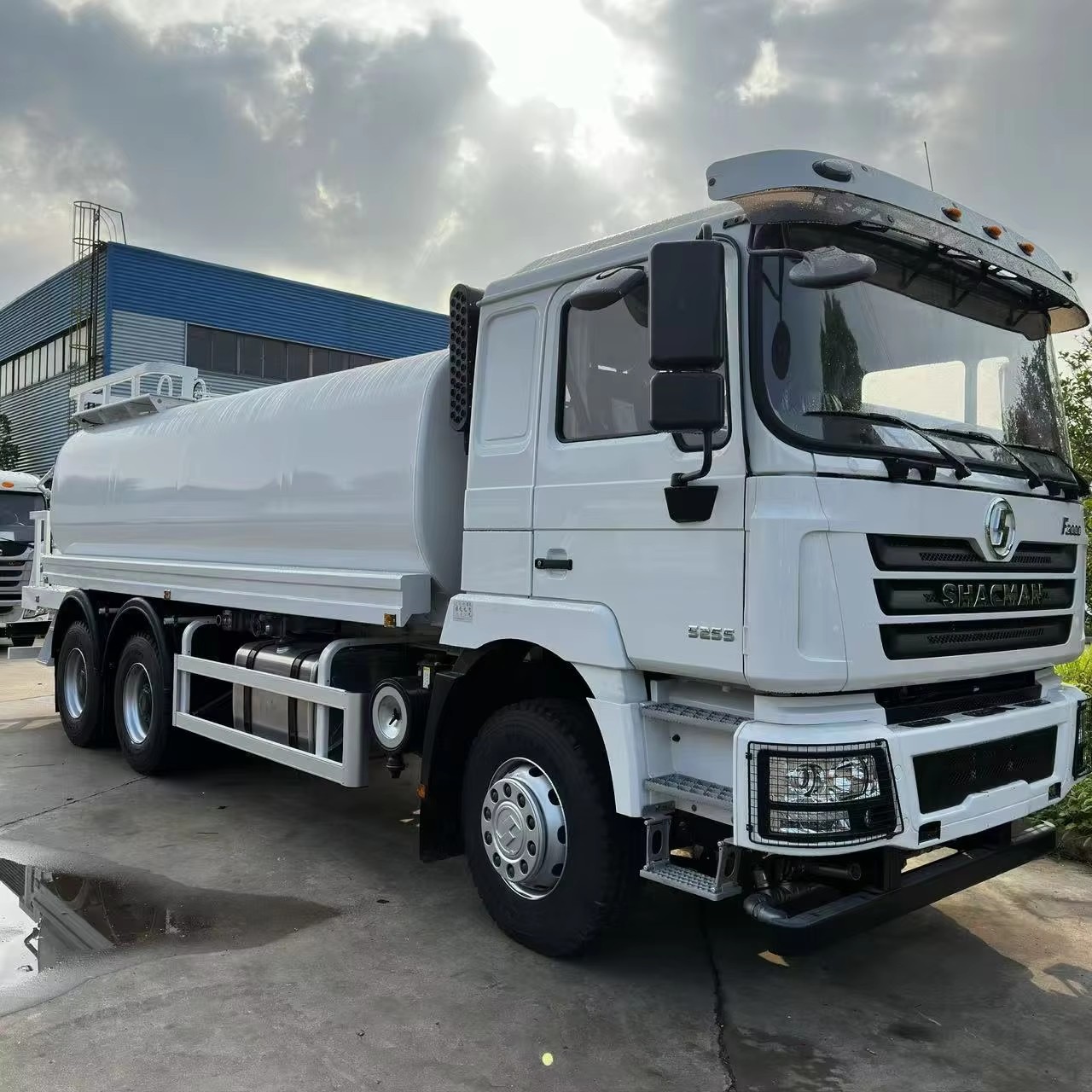

![[pics:title]](/static/upload/image/20251012/1760254501973846.jpg)

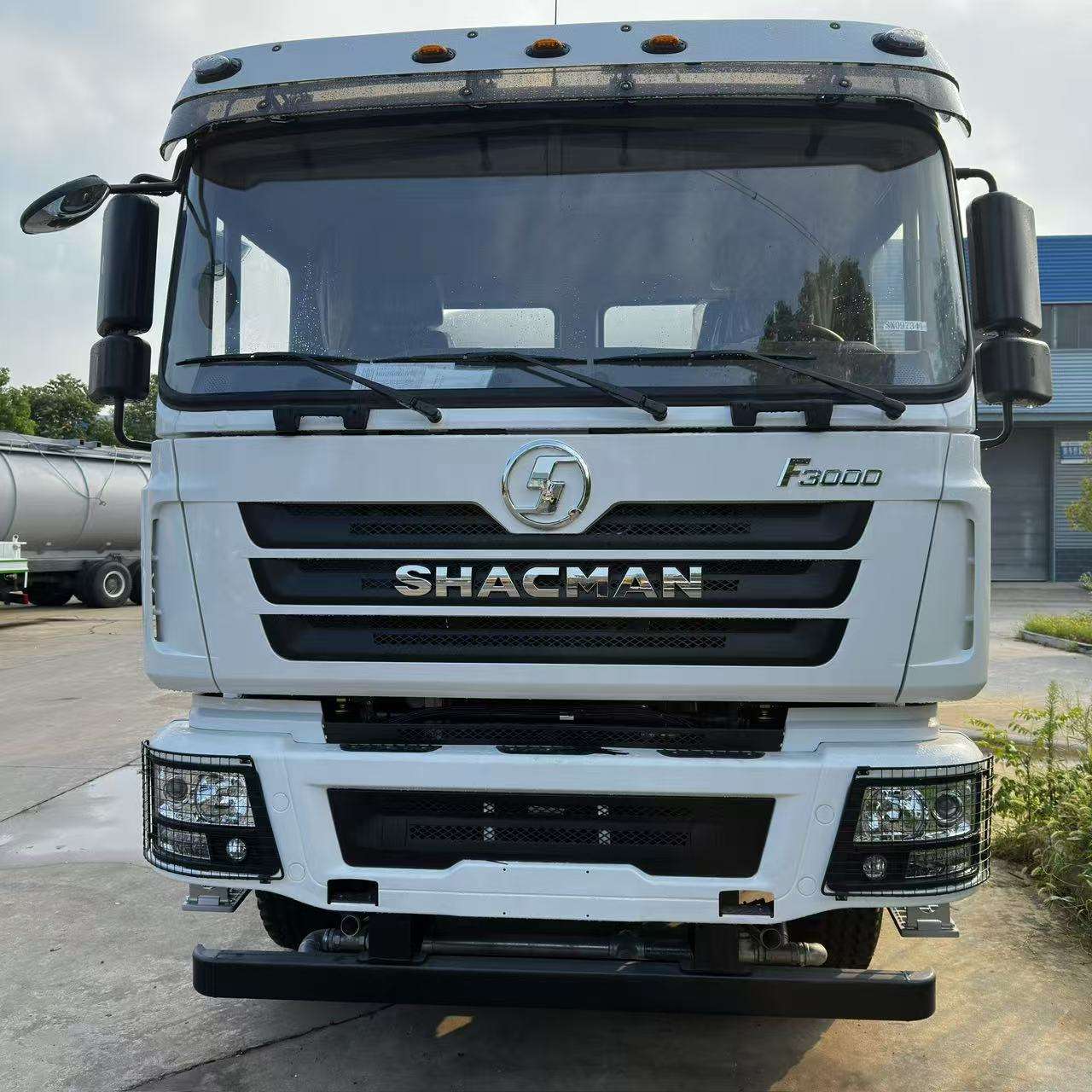

![[pics:title]](/static/upload/image/20251012/1760254501960335.jpg)

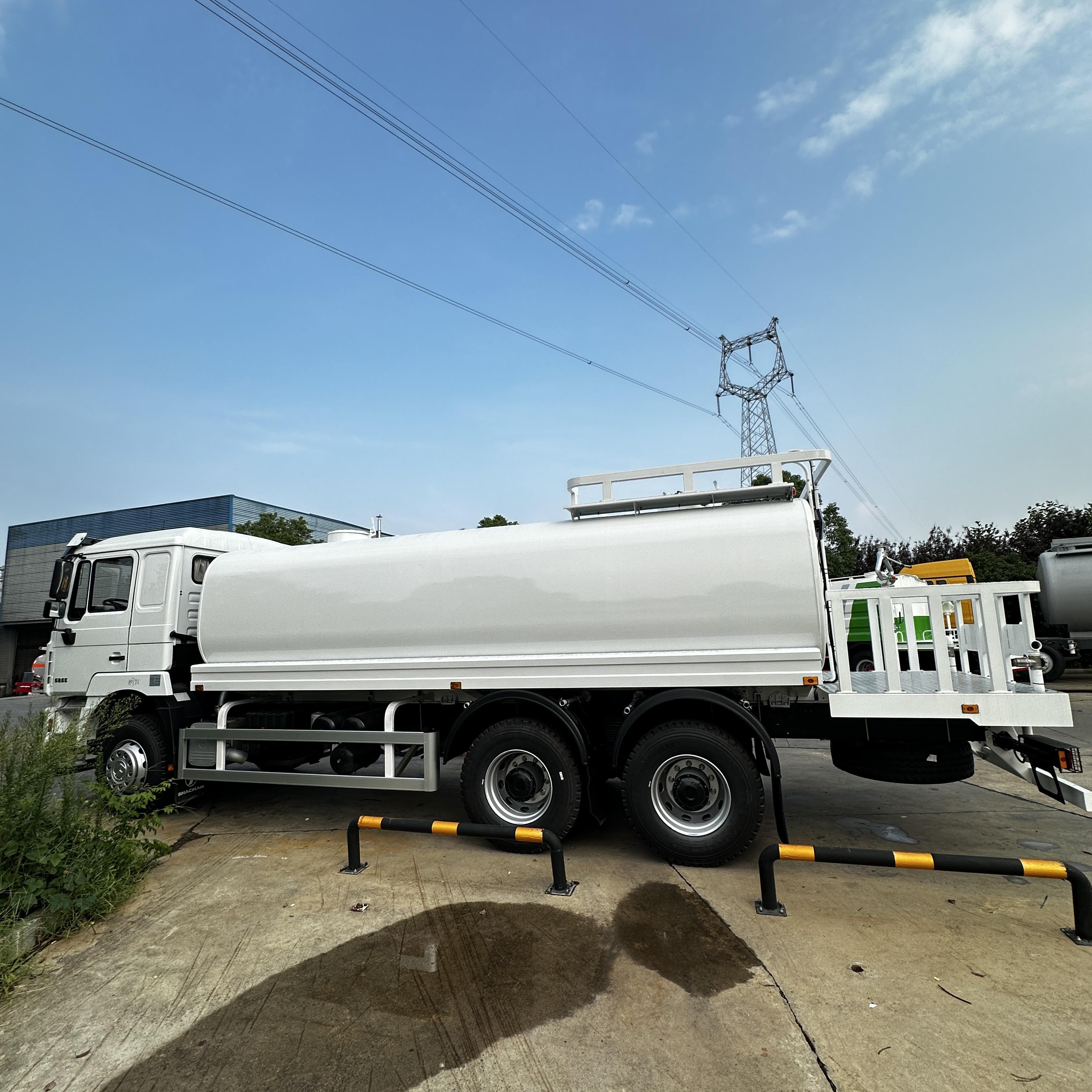

![[pics:title]](/static/upload/image/20251012/1760254502495536.jpg)

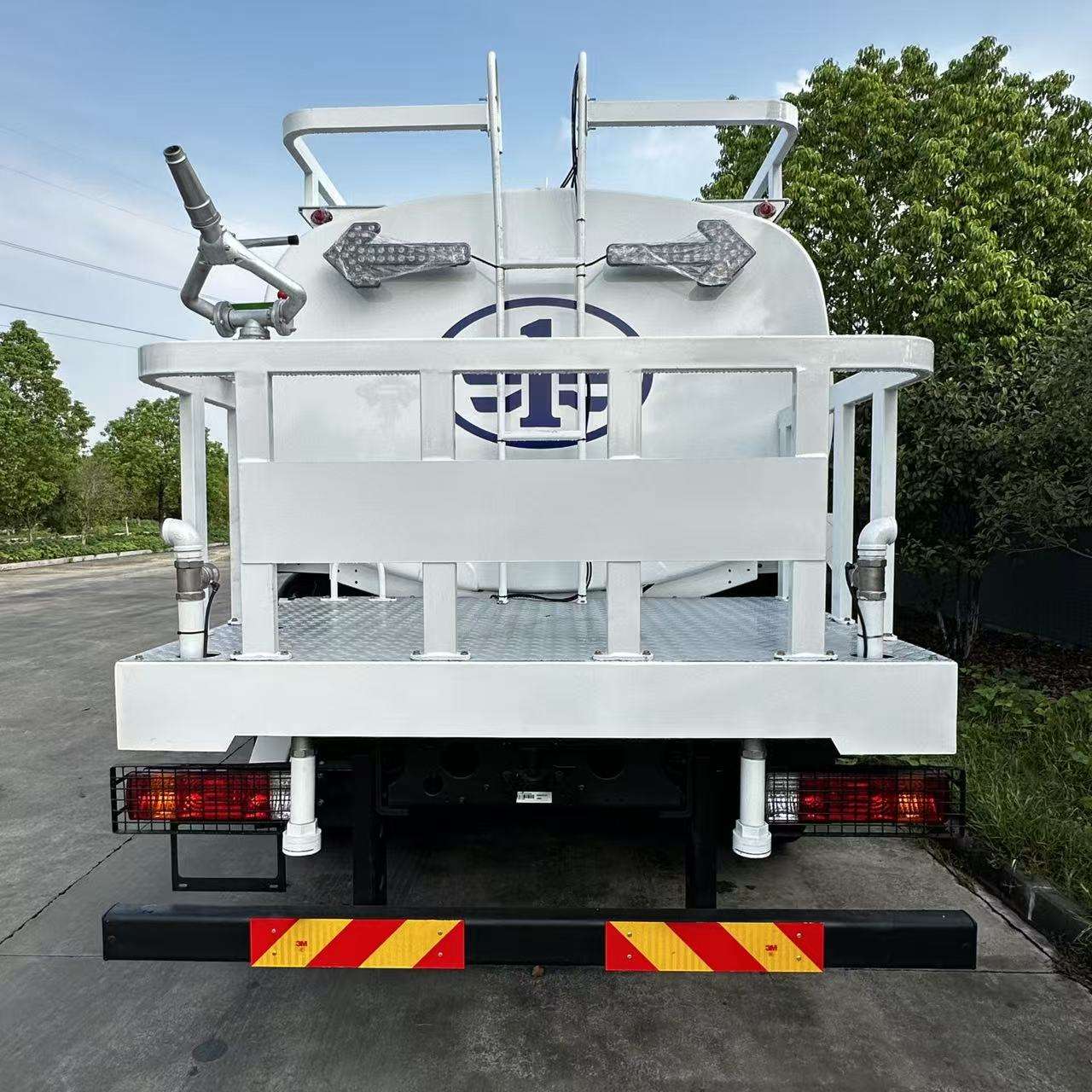

![[pics:title]](/static/upload/image/20251012/1760254501903787.jpg)
