CHU SHENG
[Vehicle Technical Parameters] | |
Product Name | Water tank truck/water truck/drink truck |
Tank Volume(m³) | 20000 |
Border dimensions (mm) | 10200*2500*3300 |
Tank thickness (mm) | 5 |
Tank Body Material | Q235 carbon steel |
Pump model | 50/110 |
Pump flow rate (m & sup3;/h) | 50 |
Water absorption depth (meters) | 7 |
Front spray width (meters) | 8 |
Rear nozzle width (meters) | 11 |
Tail flush width (meters) | 18 |
Water cannon range (meter) | 30-35 |
Truck paint | Sandblasting/rust-proof treatment |
Outlet ball valve | 50* stainless steel ball valve |
connect | Bolt connection |
【Chassis Technical Parameters] | |
Chassis Brand | FAW |
Brake | Air brake |
Type of fuel | Diesel |
Engine power (KW) | 257 |
Front axle/rear axle (t) | 5/13+13 |
Gearbox | 12-speed transmission |
Number of Axles | 3 |
Wheelbase (mm) | 4350+1350 |
Number of tires | 10 |
Tire specifications | 11.00R20 |

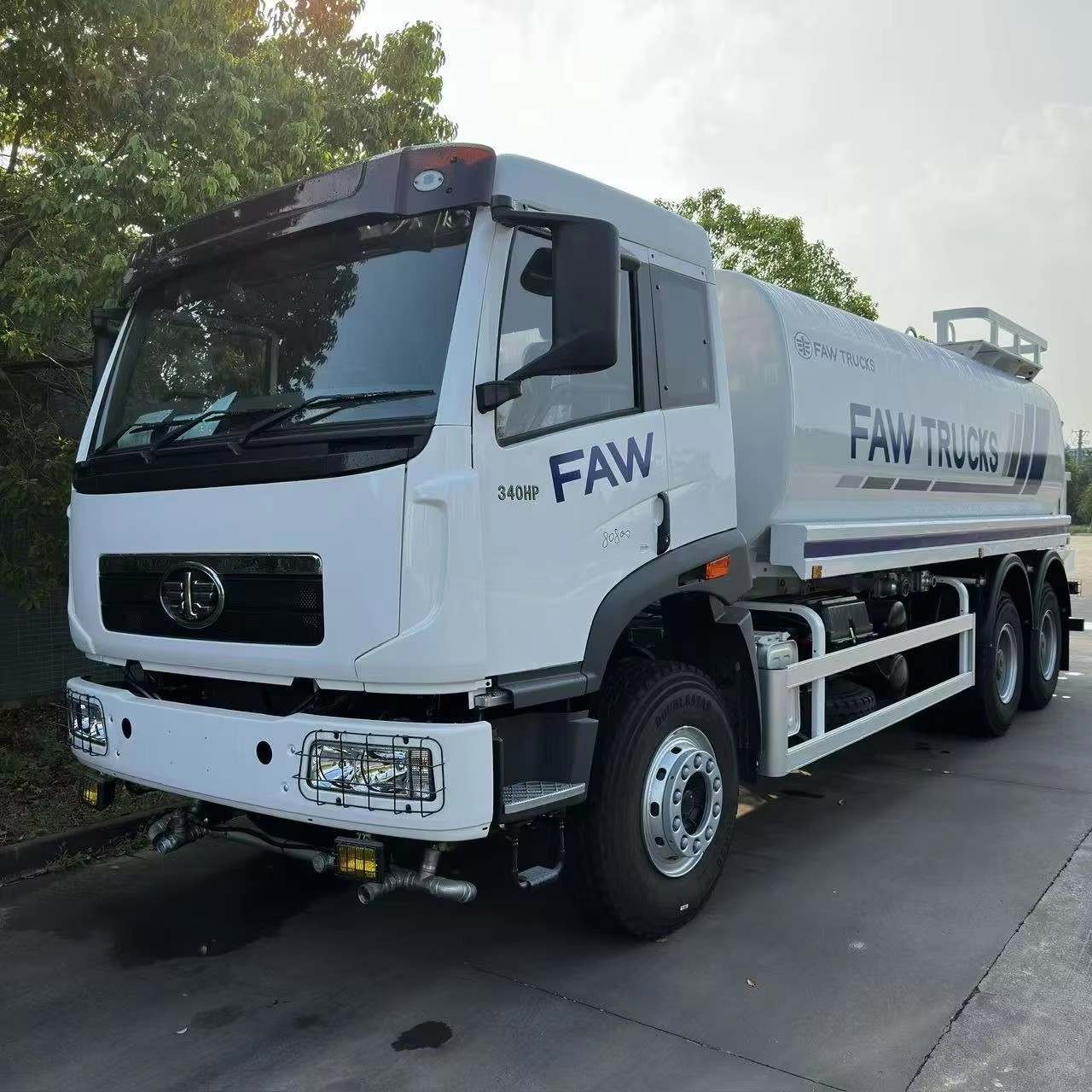

![[pics:title]](/static/upload/image/20251012/1760255077743358.jpg)

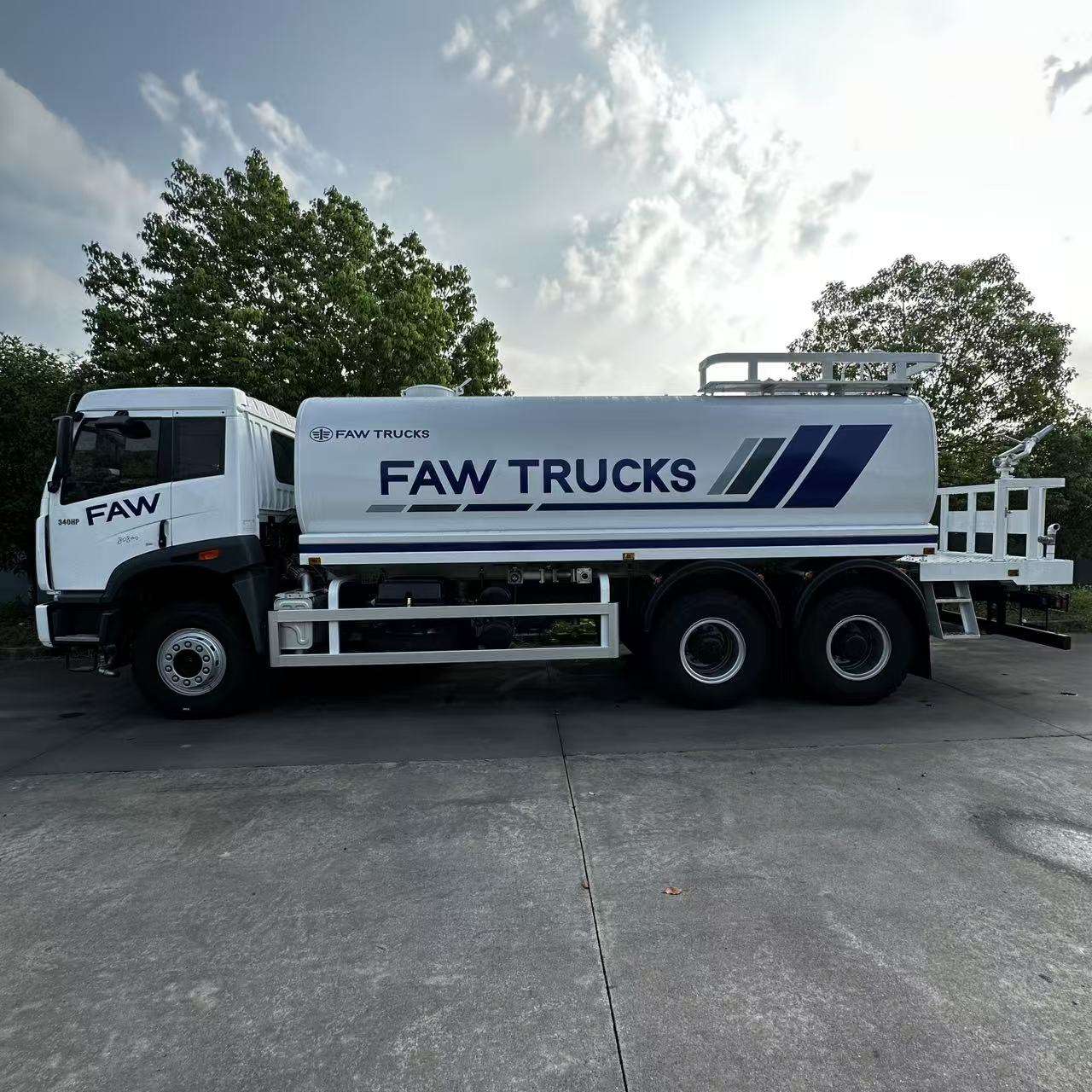

![[pics:title]](/static/upload/image/20251012/1760255075918439.jpg)

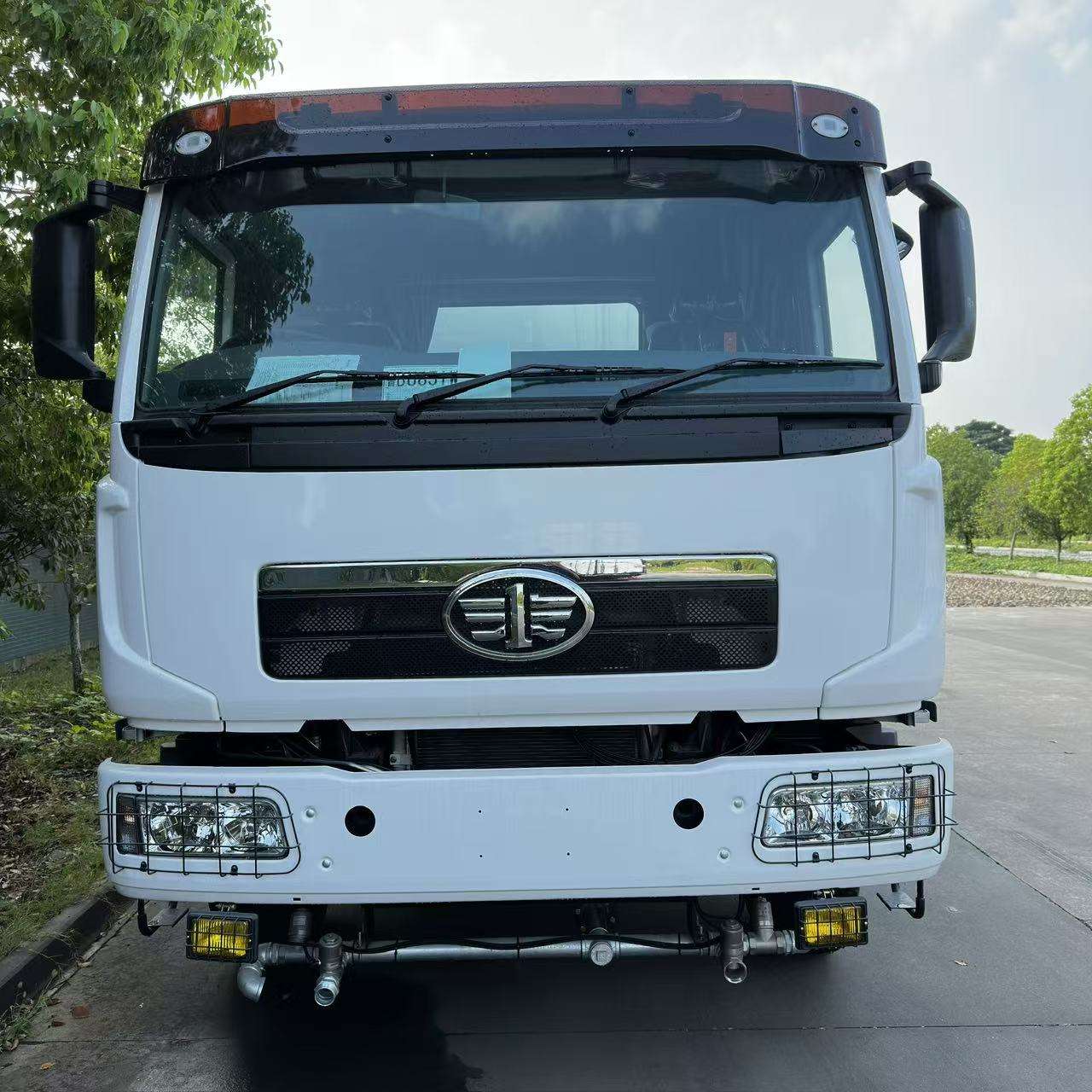

![[pics:title]](/static/upload/image/20251012/1760255074350280.jpg)

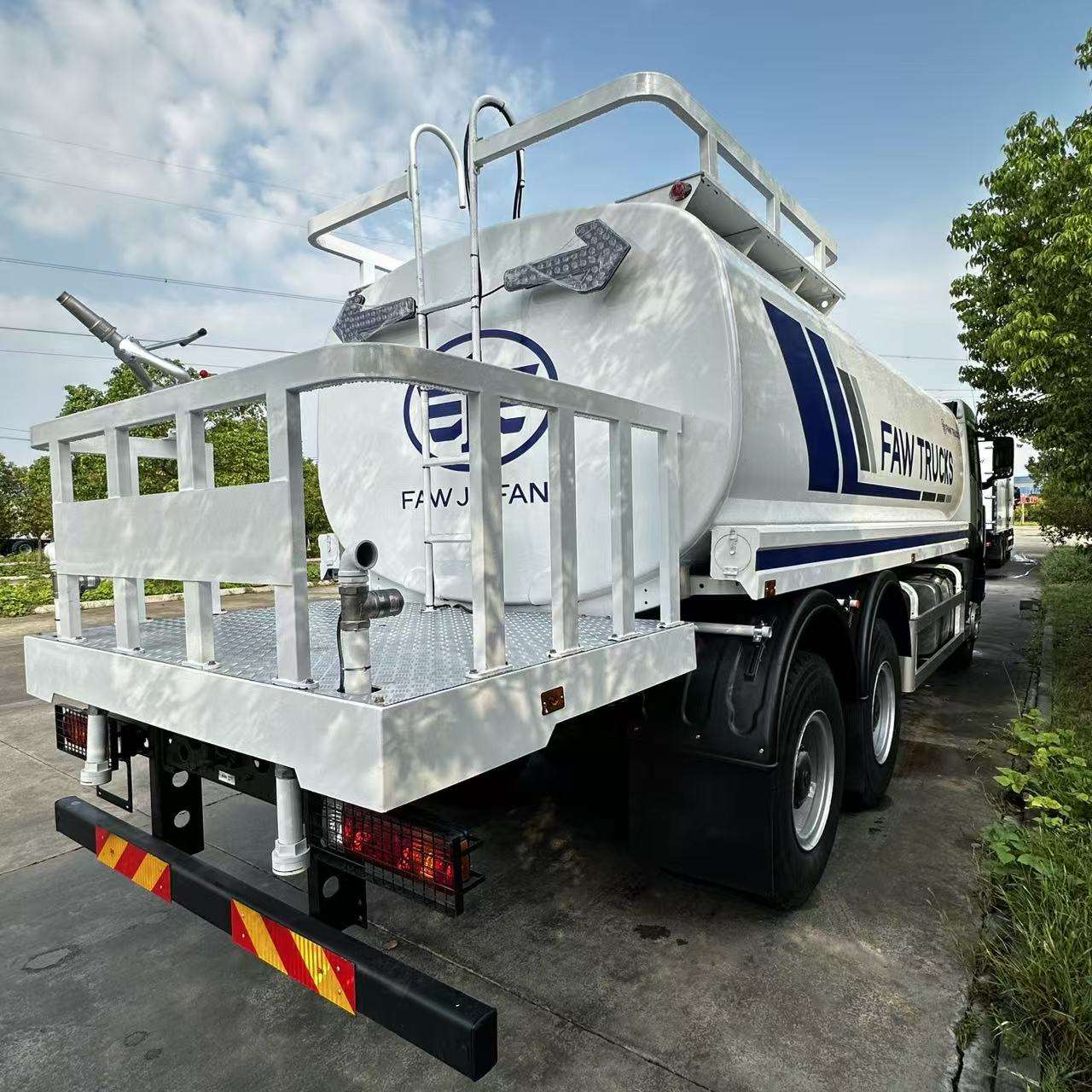

![[pics:title]](/static/upload/image/20251012/1760255074280745.jpg)
