[Vehicle Technical Parameters] | |

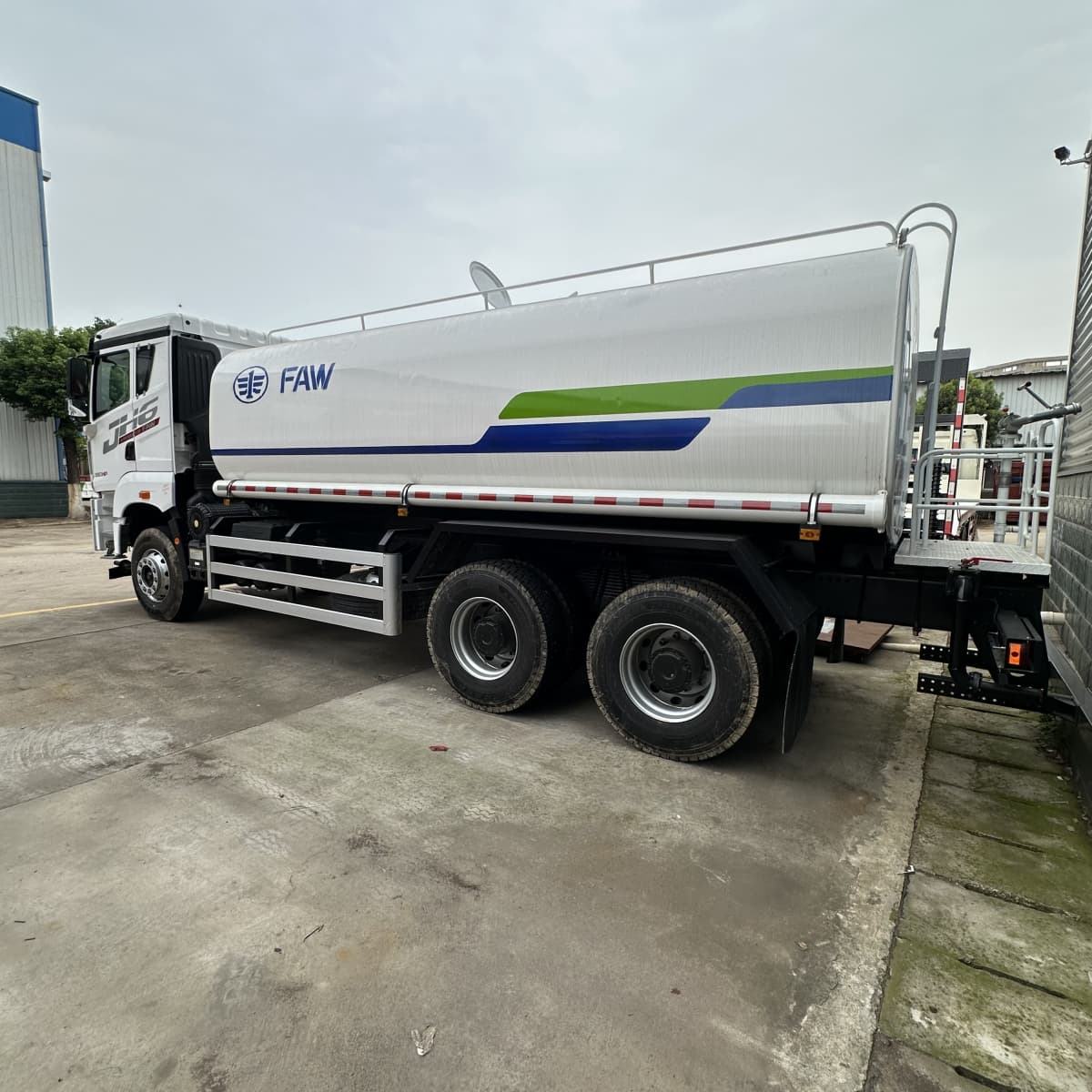

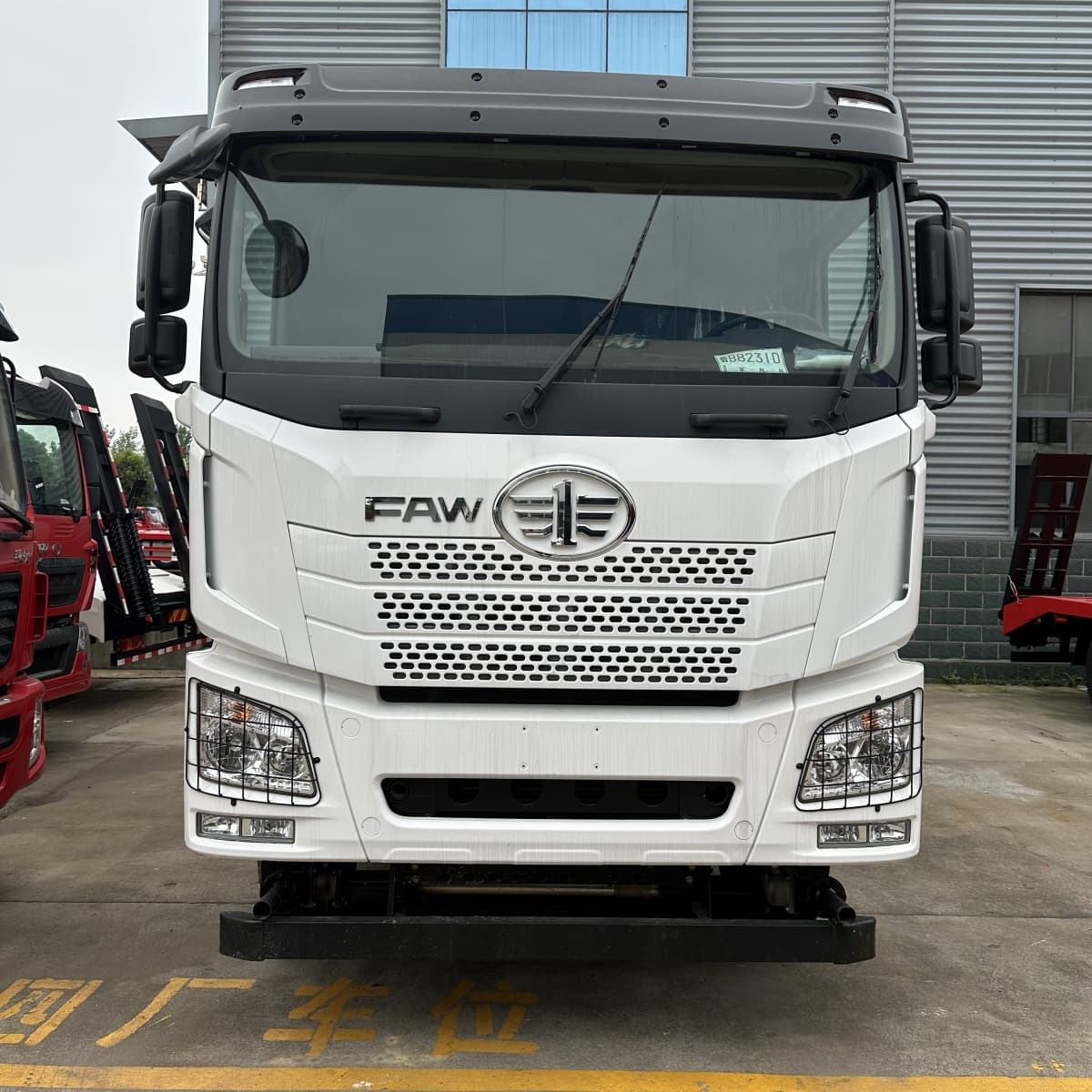

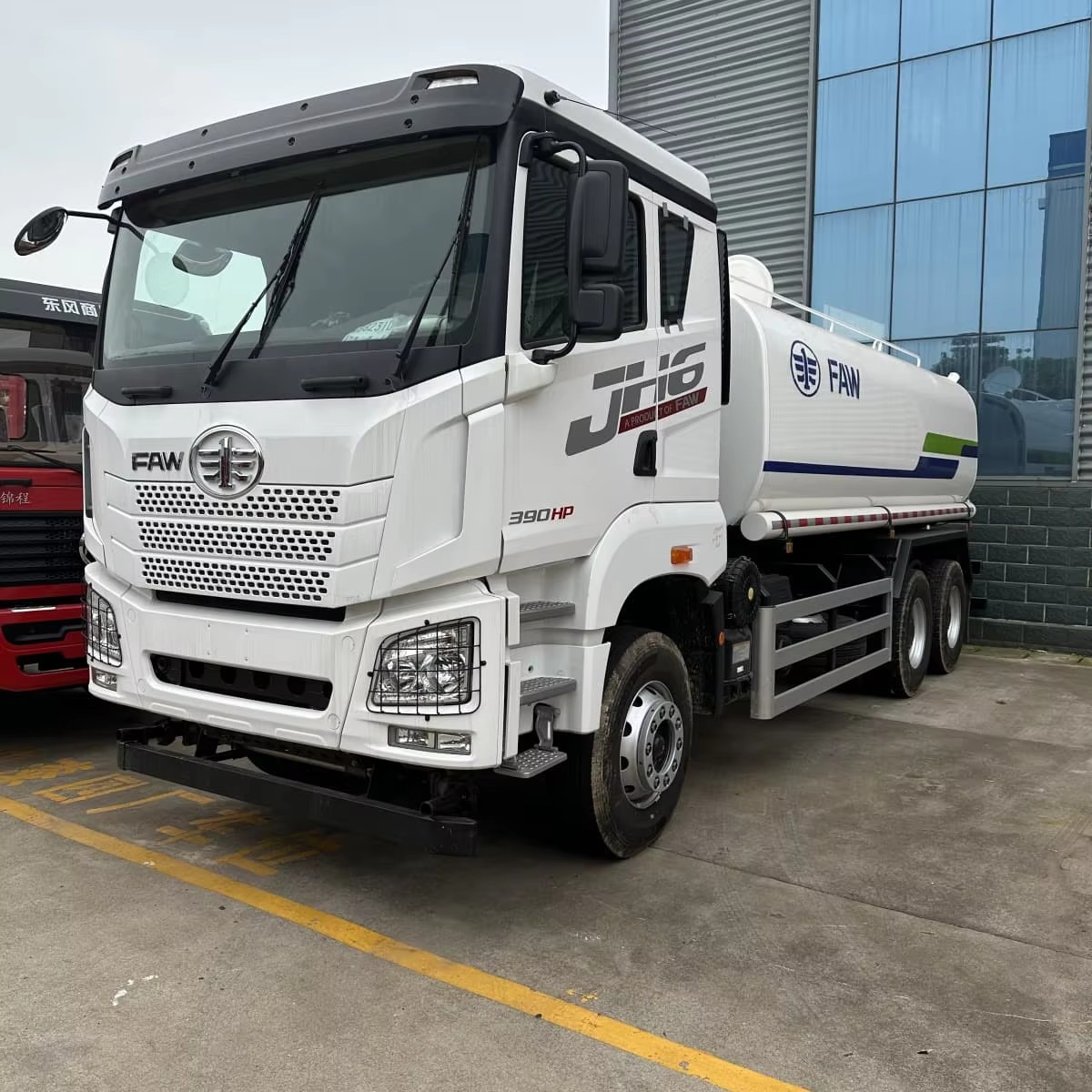

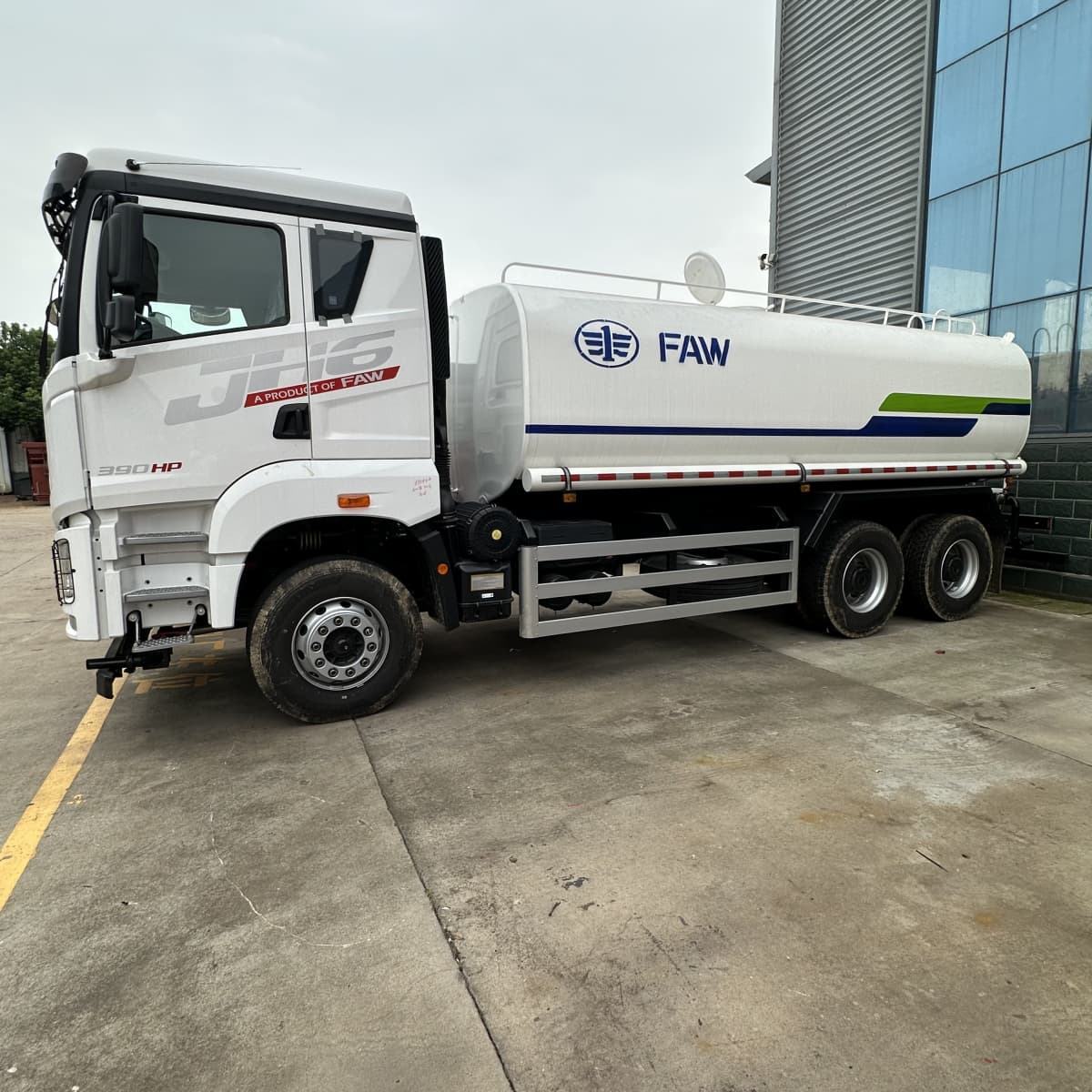

Product Name | Water tank truck/water truck/drink truck |
Volume (L) | 20000 |
Border dimensions (mm) | 12000*2460*3200 |
Tank thickness (mm) | 5 |
Tank material | Q235 carbon steel |
Pump model | 50/110 |
Pump flow rate (m & sup3;/h) | 50 |
Water absorption depth (meters) | 7 |
Front spray width (meters) | 5.5 |
Rear nozzle width (meters) | 11 |
Tail flush width (meters) | 18 |
Water cannon range (meter) | 30-35 |
Truck paint | Sandblasting/rust-proof treatment |
Outlet ball valve | 50* stainless steel ball valve |
connect | Bolt connection |
【Chassis Technical Parameters] | |
Chassis brand | HOWO |
Brake | Air brake |
Fuel type | diesel fuel |
Engine power (kilowatts) | 235 |
Front axle/rear axle (t) | 5.5/13 |
Transmission | 12-speed transmission |
Number of Axles | 3 |
Wheelbase (mm) | 1910+4250+1300 |
Number of tires | 10 |
Tire specifications | 12.00R20 |
