CHU SHENG
[Vehicle Technical Parameters] | |
Product Name | Water Tank Truck /Water Spary Truck/ Drink Water Tranpsort Truck |
Tank Volume(m³) | 20 |
Border dimensions (mm) | 9895 *2496 *2958 |
Tank thickness (mm) | 5 |
Tank Body Material | Q235 Carbon Steel |
Pump model | 60/90 |
Pump flow rate (m & sup3;/h) | 90 |
Water absorption depth (meters) | 7 |
Front spray width (meters) | 14 |
Rear nozzle width (meters) | 8 |
Water cannon range (meter) | 30 |
Outlet ball valve | 150 |
【Chassis Technical Parameters] | |
Chassis Brand | Shacman |
Brake | Air brake |
Type of fuel | Diesel Oil |
Engine power (KW) | WP7.270E61 199KW |
Front axle/rear axle (t) | 5/12 |
Gearbox | 12-speed gearbox |
Number of Axles | 18000 |
Wheelbase (mm) | 3878+1400mm |
Number of tires | 6*4 |
Tire specifications | 12.00R20 18PR |

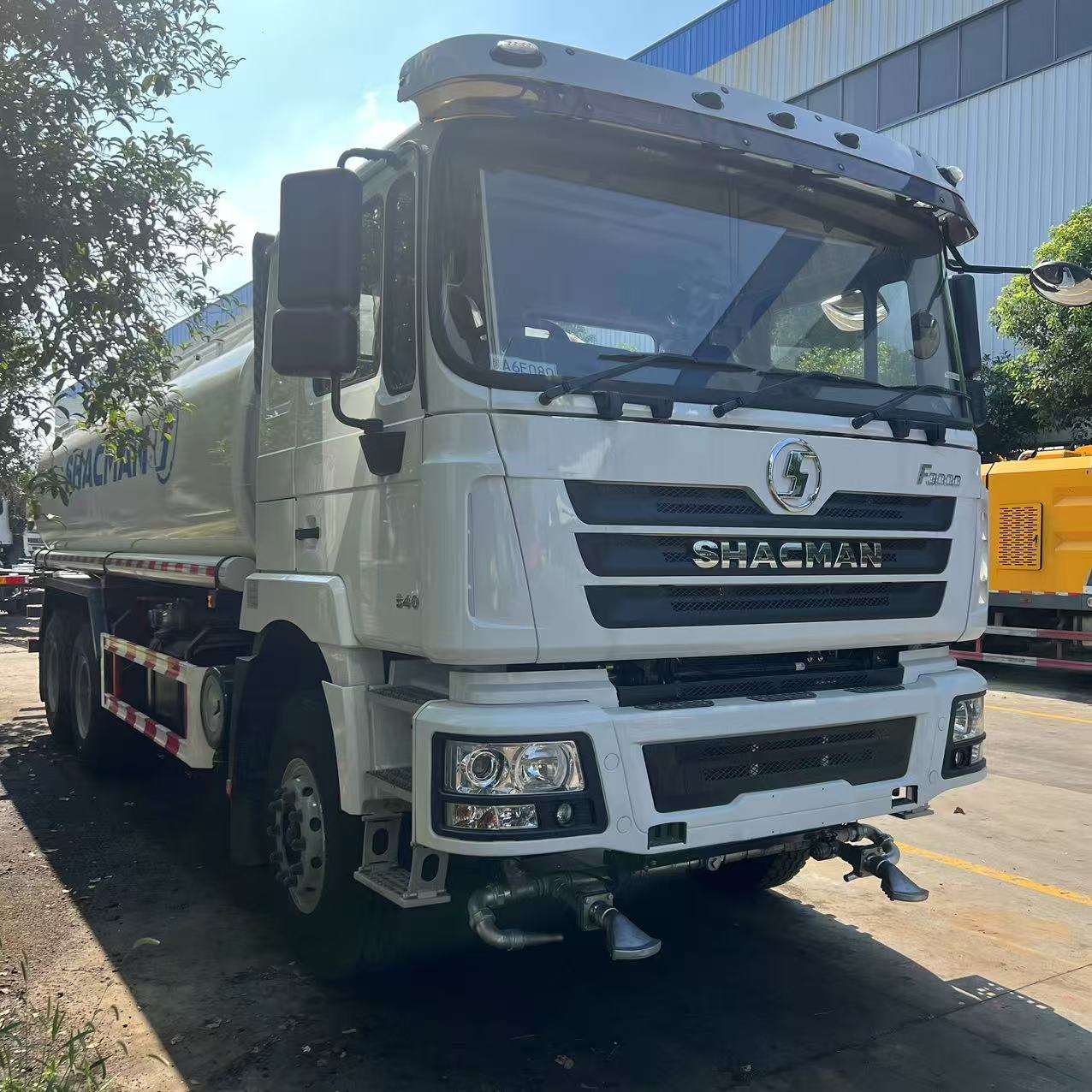

![[pics:title]](/static/upload/image/20251012/1760259431897425.jpg)

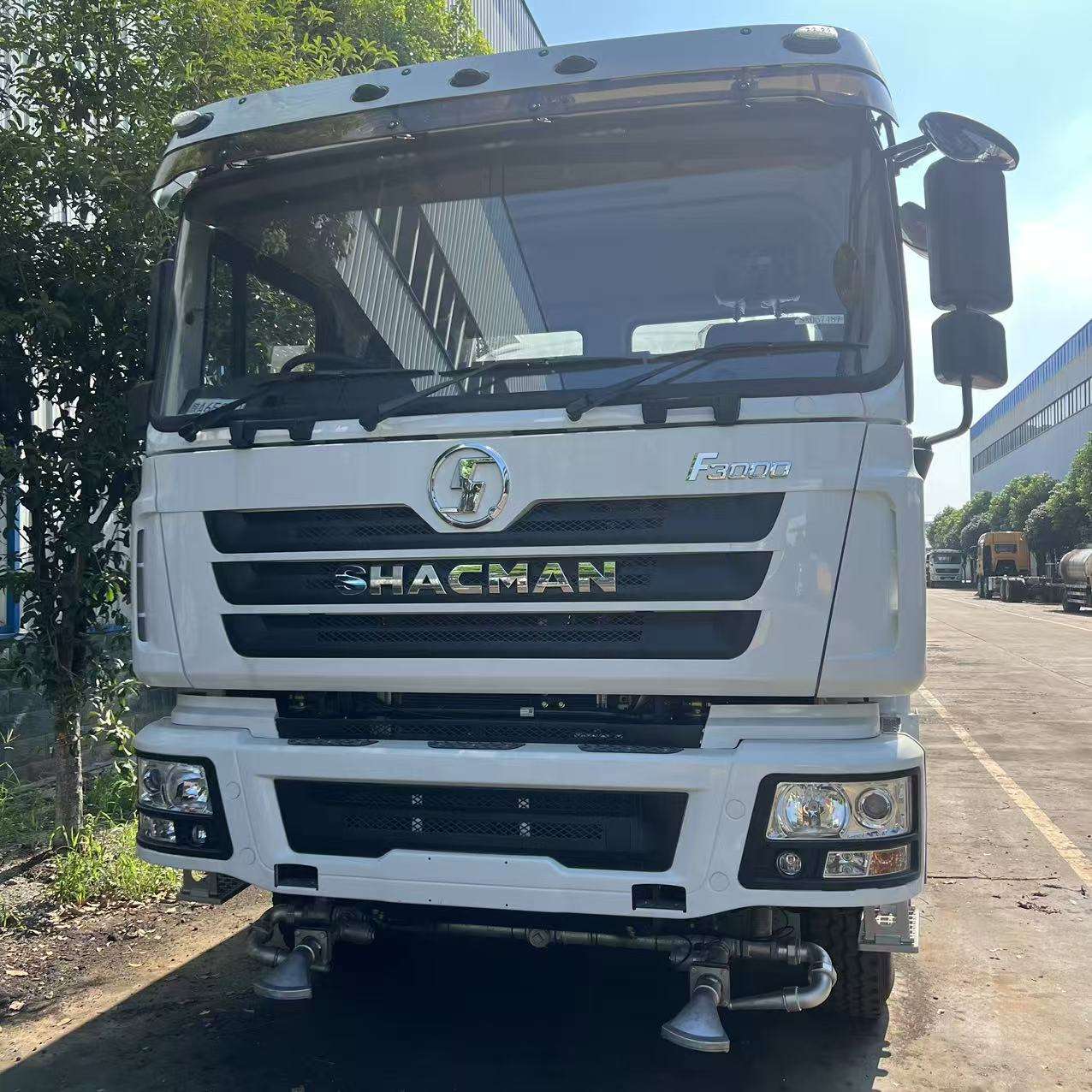

![[pics:title]](/static/upload/image/20251012/1760259430505712.jpg)

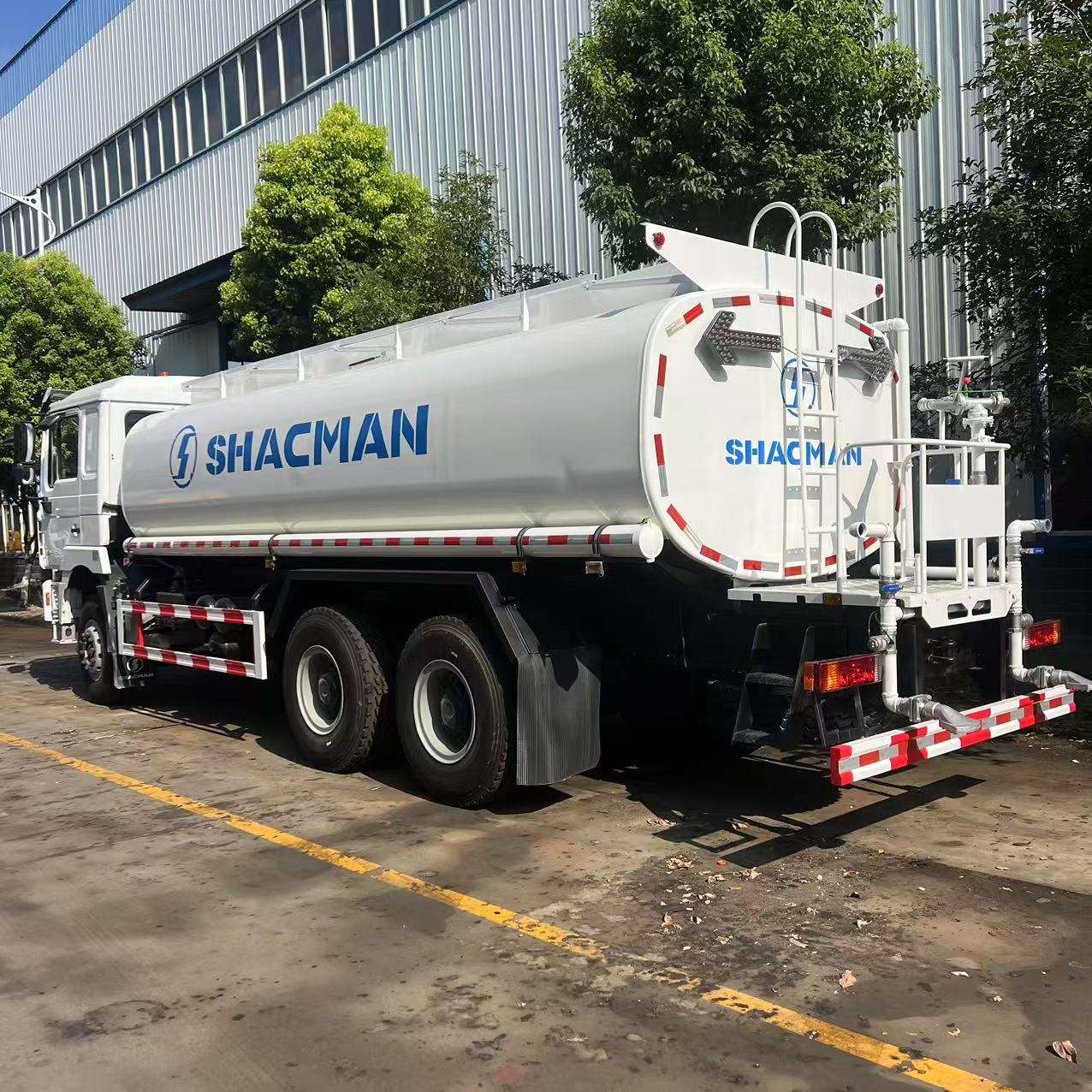

![[pics:title]](/static/upload/image/20251012/1760259431924889.jpg)

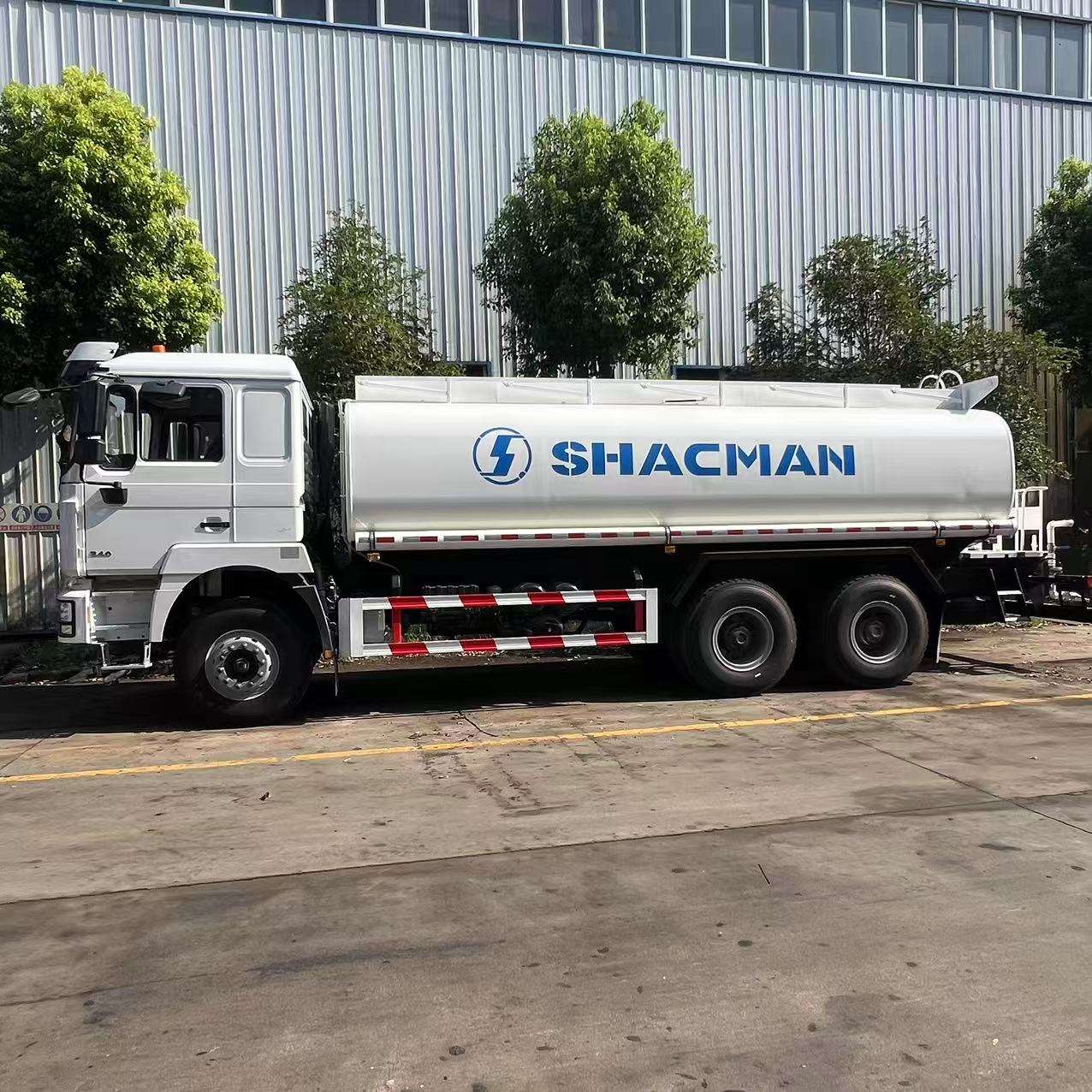

![[pics:title]](/static/upload/image/20251012/1760259432186489.jpg)
