【Vehicle Technical Parameters】 | ||

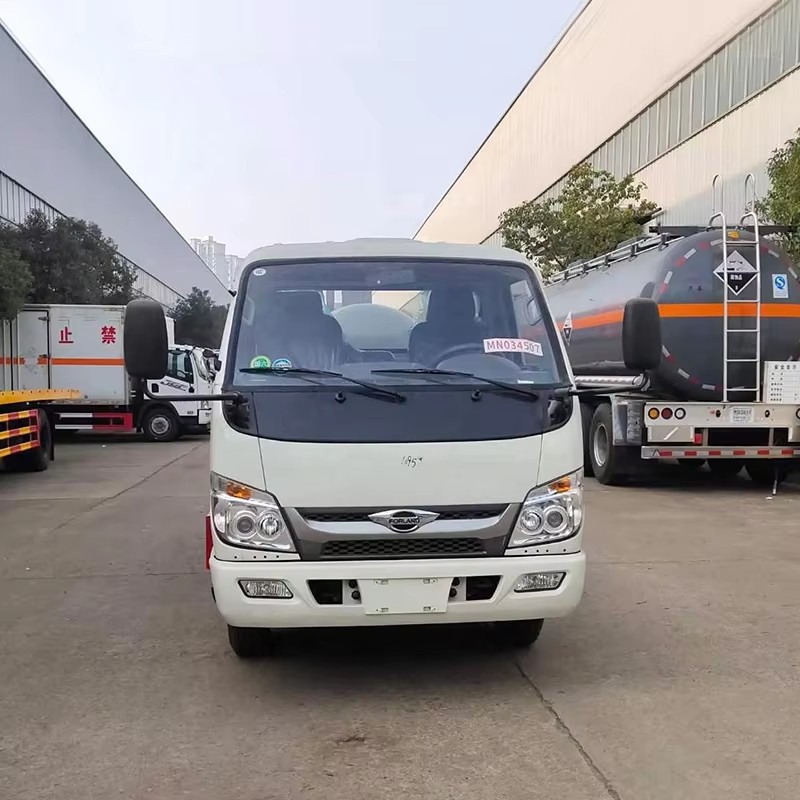

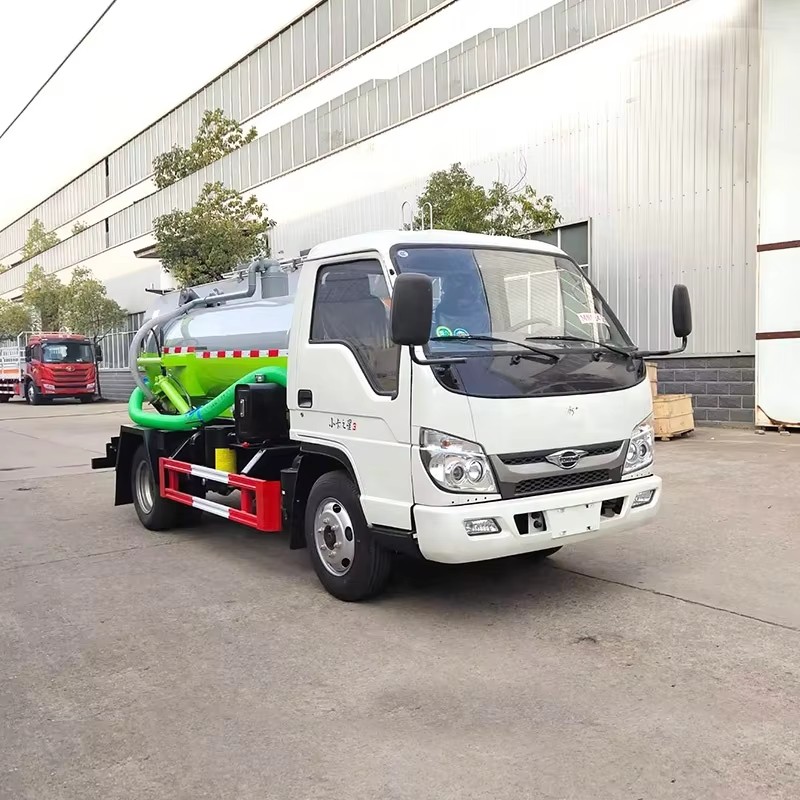

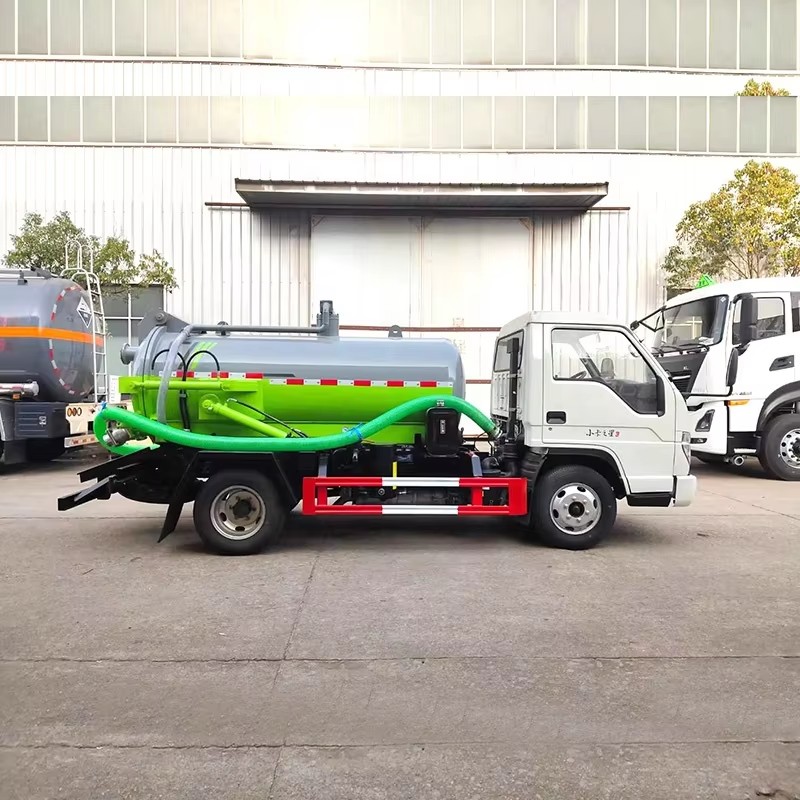

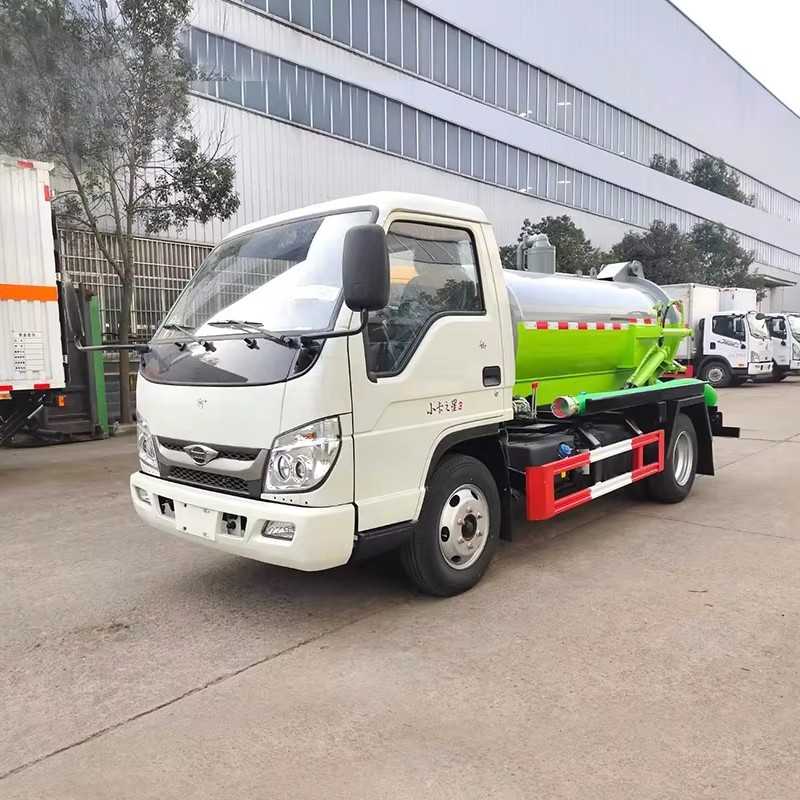

Product Name | Sewage Suction Truck | |
Curb Weight(Kg) | 2985 | |
Boundary Dimension(mm) | 5080×1850×2250 | |
Tank Volume(m³) | 2 | |
Tank Thickness（mm） | 5 | |
Tank Body Material | Q235 Carbon Steel | |
Vacuum Pump Type | Water Cycle/Oil Circulation | |
Vacuum Pump Pumping Speed（m³/h） | 28 | |
Suction Pipe Diameter（mm） | 100 | |
Vertical Suction(m) | 6～8 | |
The Way The Sewage is Discharged | Blowdown Valve/Lift the Tank | |
Operating Ambient Temperature（°C） | -20~45 | |
Cab Capacity | 2 Persons Allowed | |
【Chassis Technical Parameters】 | ||
Chassis Brand | Foton | |
Brake | Automatically Air-Cut Brake | |
Type of fuel | Diesel Oil | |
Engine Power（KW） | QuanChai 70KW/93HP | |
Front Axle/Rear Axle（t） | 1.5/2.5 | |
Gearbox | 5 Speed Manual Transmission | |
Number of Axes | 2 | |
Wheelbase (mm) | 2850 | |
Number of Tires | 6 | |
Tyre Specification | 6.00R15 | |
