【Vehicle Technical Parameters】 | ||

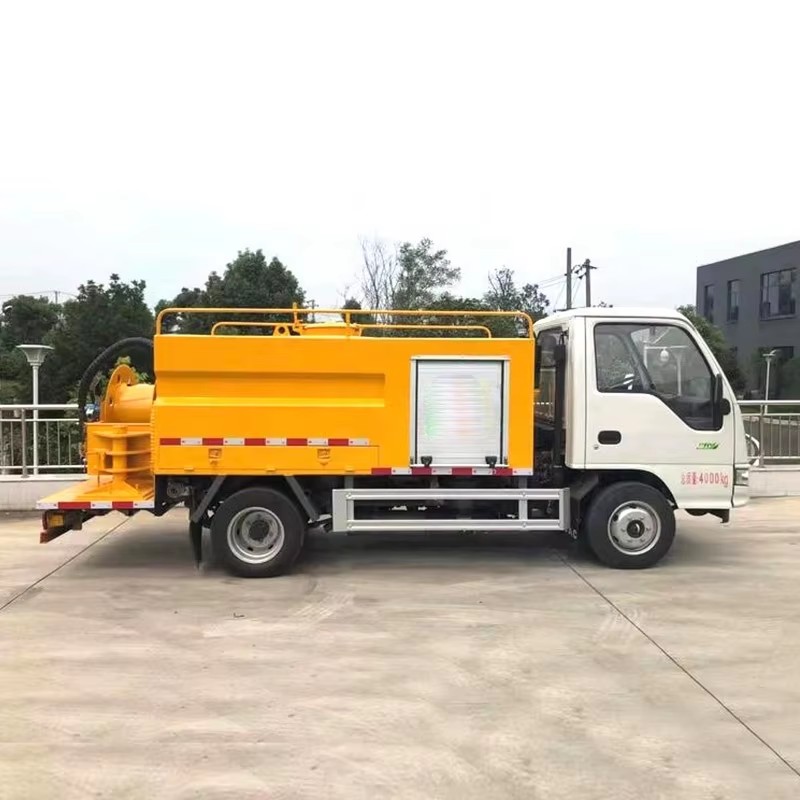

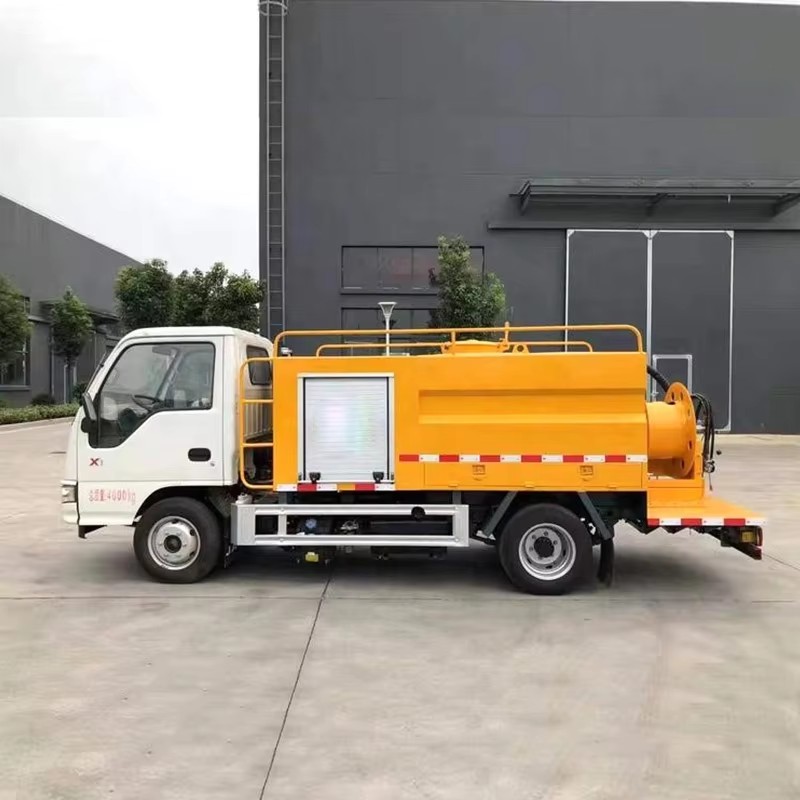

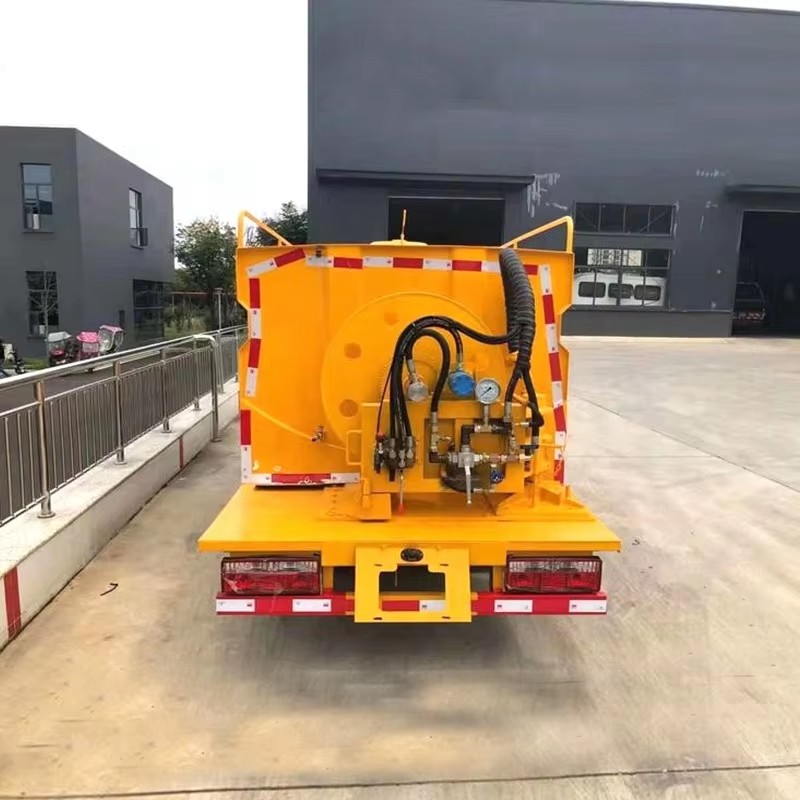

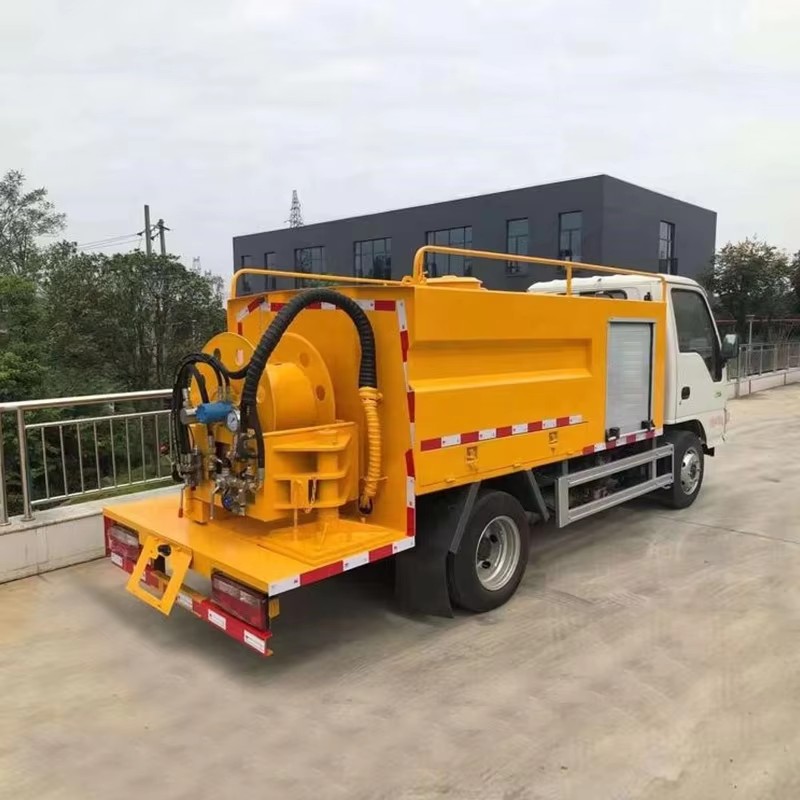

Product Name | Sewage Cleaning Truck | |
Kerb weight (Kg) | 3500 | |
Overall Dimensions (mm) | 5380×1660×2000 | |
Box Volume (m3) | 2.5 | |
Box Thickness (mm) | 8 | |
Box Body Material Quality | Q345 Manganese Steel | |
Working Environment Temperature (℃) | -20~45 | |
Sewage Tank Capacity (L) | 1000 | |
Sewage pump | SK-21b | |
Speed (r.p.m.) | 590 | |
Pressure (Mpa) | 0-1 | |
Water consumption (L /min)i/min | 140~180 | |
Operating Mode | Automatic+Manual | |
High pressure pump flow(L /min) | 54 | |
Stress( Mpa) | 8 | |
Cab Capacity | 3 Persons Allowed | |
【Chassis Technical Parameters】 | ||
Chassis Brand | JAC | |
Brake | Air Brake/Oil Brake | |
Type of fuel | Diesel | |
Engine Power（KW） | 215 | |
Front Axle/Rear Axle（t） | 2.5/5 | |
Gearbox | 5-Speed Manual | |
Number of Axes | 3 | |
Wheelbase (mm) | 2850 | |
Number of Tires | 6 | |
Tire Specification | 185R15LT 8PR | |
