【Vehicle Technical Parameters】 | ||

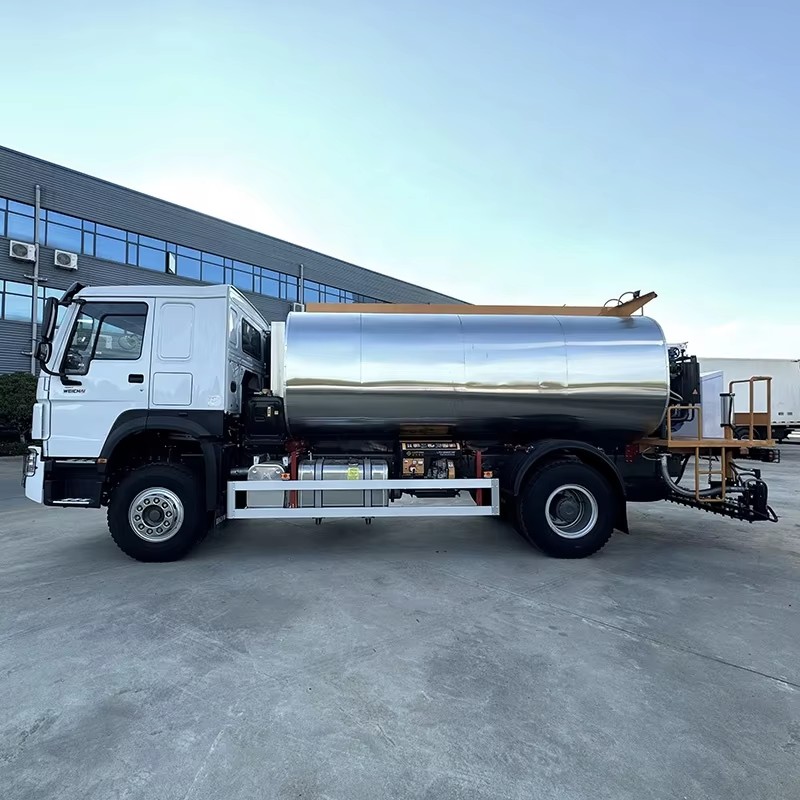

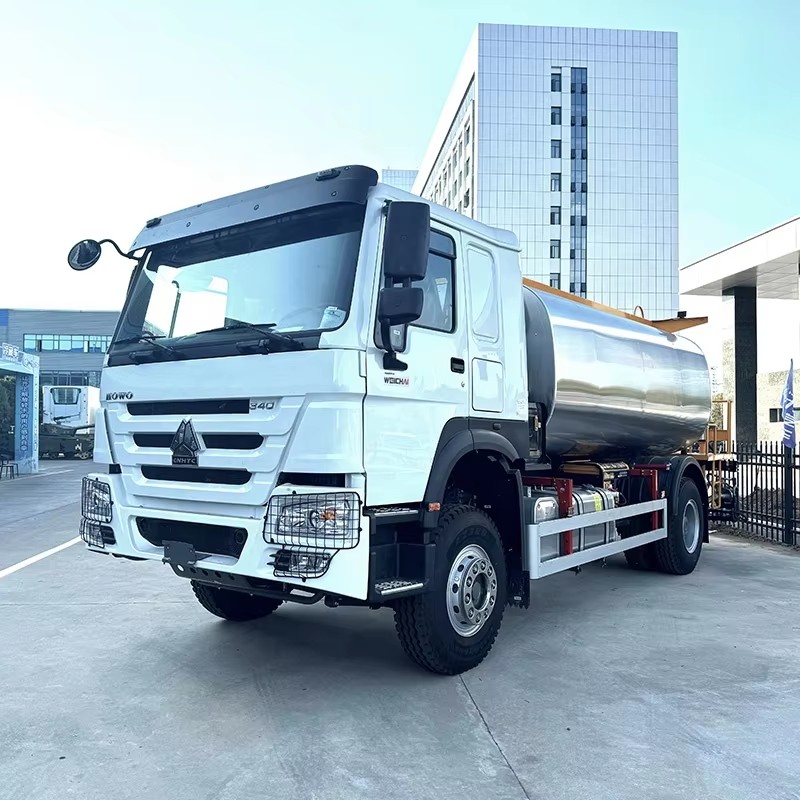

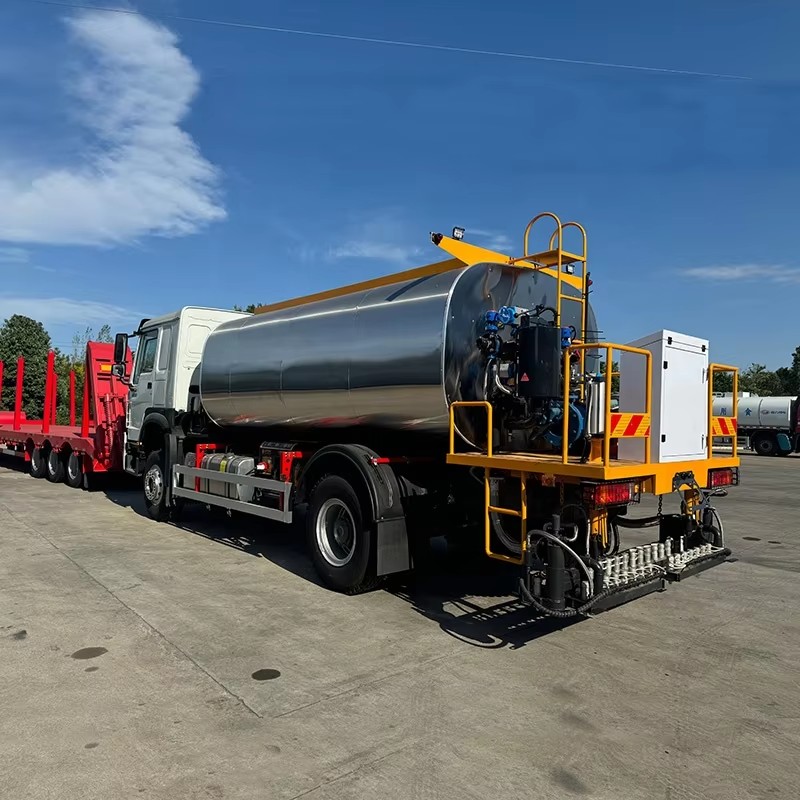

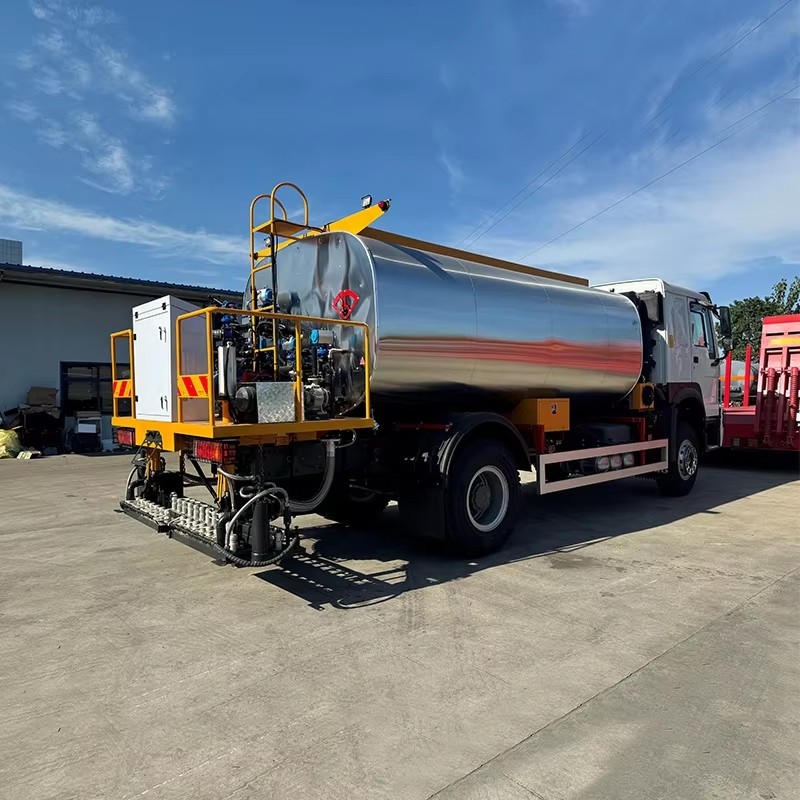

Product Name | Asphalt Distributor Truck | |
Curb Weight(Kg) | 11580 | |
Boundary Dimension(mm) | 9560×2550×3350 | |
Volume of Asphalt Tank(m³) | 8 | |
Insulating Layer Thickness（mm） | 50 | |
Asphalt Pump Flow（L/min） | QGB680 | |
Spray Width（mm） | 4500 | |
Spraying Quantity（L/m2） | 0.3～3 | |
Working Speed（km/h） | 1.5～20 | |
Nozzle Number | 34 | |
Asphalt Heating System | Heat Transfer Oil Heating | |
Mode of Operation | Computer Control/Manual Control | |
Operating Ambient Temperature（°C） | -20~45 | |
Max Passengers Allowed | 3 | |
【Chassis Technical Parameters】 | ||
Chassis Brand | Howo | |
Brake | Automatically Air-Cut Brake | |
Type of fuel | Diesel Oil | |
Engine Power（KW） | Wei Chai 340,WP6.210E32 | |
Front Axle/Rear Axle（t） | 4.8/11.5 | |
Gearbox | 8 Speed Manual Transmission | |
Number of Axes | 2 | |
Wheelbase (mm) | 5700 | |
Number of Tires | 6 | |
Tyre Specification | 11R22.5 | |
