[Overall Technical Parameters ] | ||

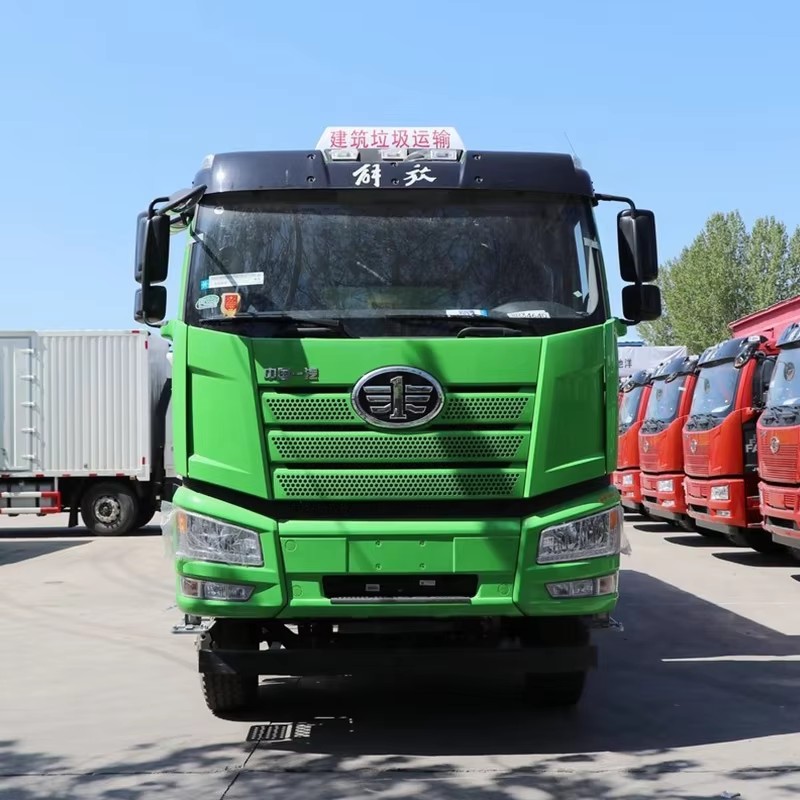

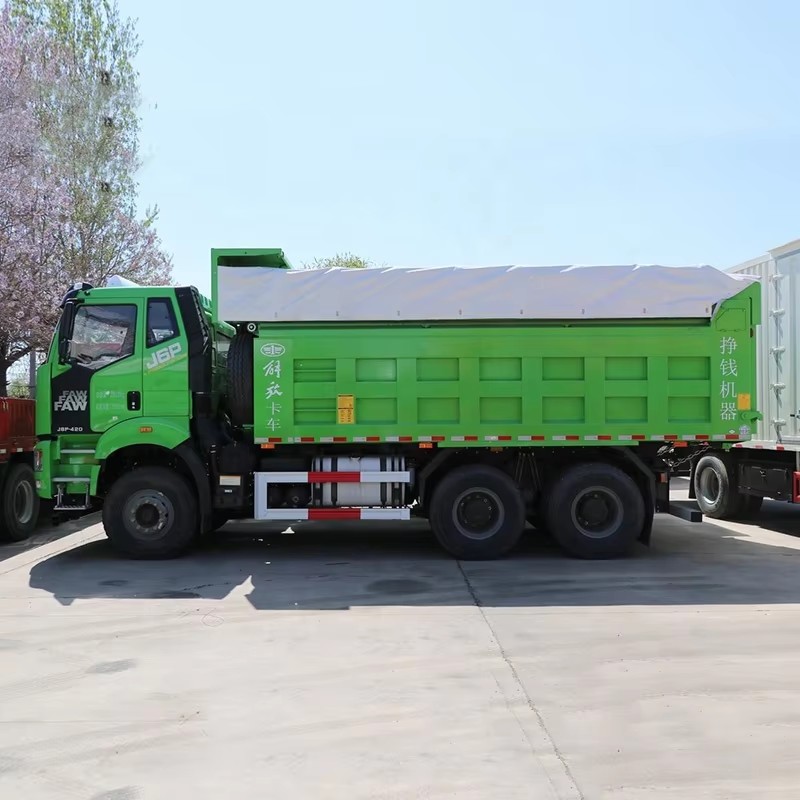

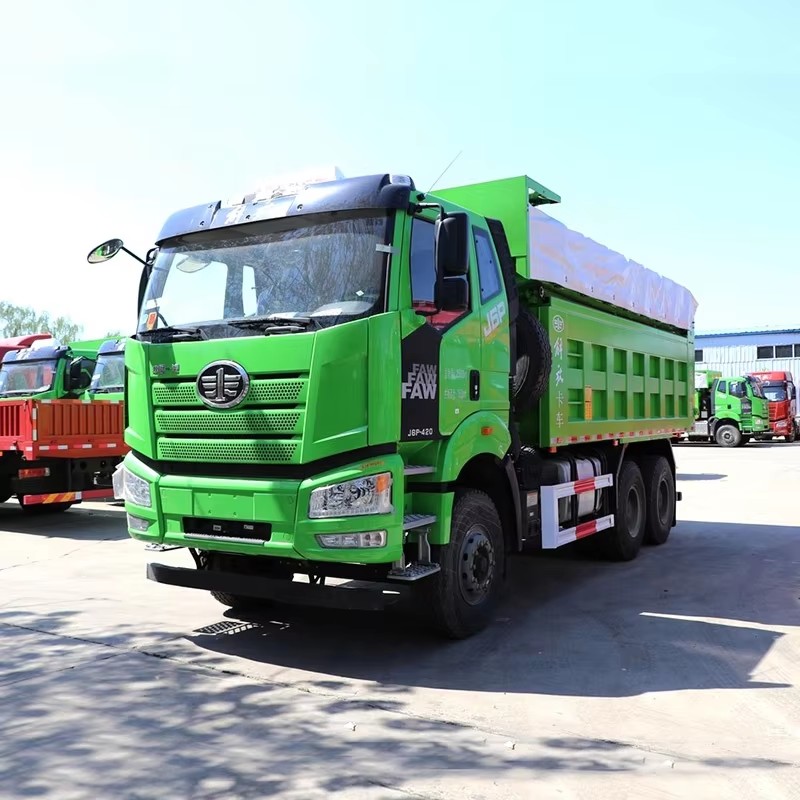

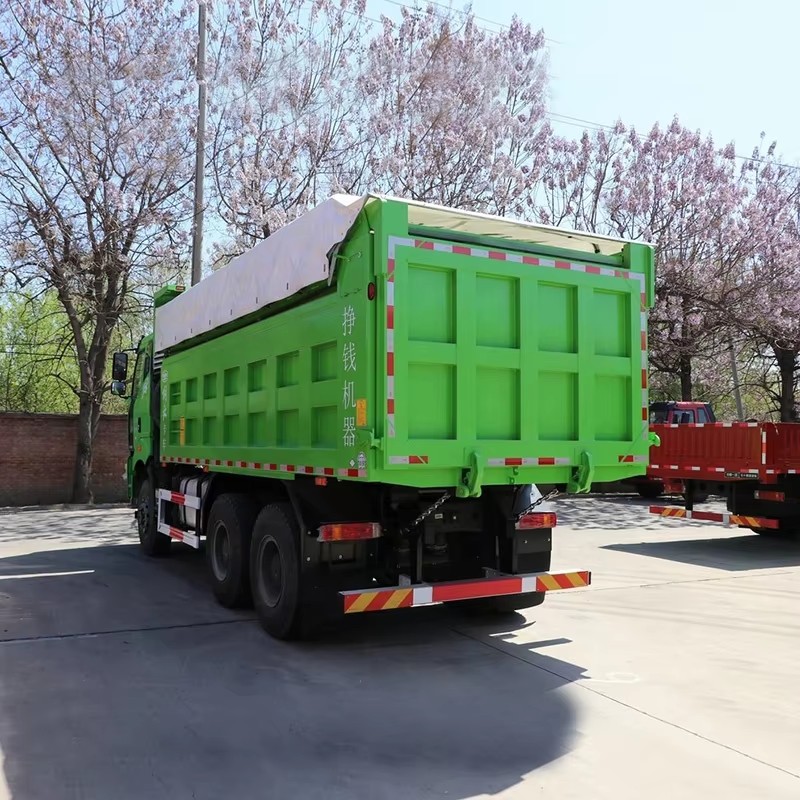

Product Name | Dump Truck Mining Tipper Truck | |
Overall Dimensions(mm) | 8700x2550x3400 | |
Curb weight(Kg) | 12500 | |
Loading Capacity(Kg) | 12370 | |
Total Mass(Kg) | 25000 | |
Cargo Tank Dimension（mm） | 5800x2300x1500 | |
Cargo Tank Volume(m³) | 20 | |
Tank Body Material | Carbon Steel | |
Cargo Tank thickness（mm） | Side 6 Bottom 8 | |
Cargo Tank Lifting method | Hydraulic Cylinder Lifting | |
Number of Cylinders（pcs） | 1 | |
Position of Cylinder | Girder Front/Middle | |
Cylinder Diameter（mm） | 180 | |
Door Position | Rear/Side/Top | |
[Chassis Technical Parameters] | ||
Chassis brand | FAW | |
Drive Method | 6*4 | |
Driving Position | Left or Right Hand Drive | |
Steering Device | Power Assisted Steering | |
Wheelbase(mm) | 4050+1350 | |
Engine Brand and Model | Xichai Power/CA12TAX230M | |
Max engine power(Kw) | 309 | |
Engine Displacement(ml) | 11050 | |
Engine emission standard | Euro 6 | |
Number of Engine cylinders | 6 | |
Fuel Type | Diesel | |
Gearbox | 12 Speed Forward 1 Reverse | |
Front/Rear Axle(T) | 7/7/18 | |
Suspension | Multi leaf springs | |
Brake Systerm | Front/Rear Drum full air braking | |
Wheels and Tire Spec | 12+1/( 12.00R20LT) | |
Cab Configuration | Single row cab, air conditioning, radio, MP3 and USB port | |
Rated Voltage | 24V,DC | |
