CHU SHENG
Vehicle Technical Parameters | ||
Product Name | Dump Truck | |
Overall Dimensions(mm) | 5790×2020×2680 | |
Curb Weight(Kg) | 6075 | |
Loading Capacity(Kg) | 4995 | |
Total Mass(Kg) | 11200 | |
Cargo Tank Dimension（mm） | 3800×2200×800 | |
Cargo Tank Volume(m³) | 6.5 | |
Tank Body Material | Carbon Steel | |
Cargo Tank thickness（mm） | Side 3 Bottom 4 | |
Cargo Tank Lifting Method | Hydraulic Cylinder Lifting | |
Number of Cylinders（pcs） | 2 | |
Cylinder Position | Girder in the Middle | |
Cylinder Diameter（mm） | 100 | |
Door Position | Rear/Side/Top | |
Chassis Technical Parameters | ||
Chassis Brand | Howo | |
Drive Form | 4*2 | |
Steering Wheel | Left Hand Drive | |
Steering Device | Power Assisted Steering | |
Wheelbase(mm) | 3200 | |
Engine Brand and Model | Weichai Power/WP3NQ160E61 | |
Max Engine Power(Kw) | 120 | |
Engine Displacement(ml) | 2970 | |
Engine Emission Standard | Euro 3 | |
Number of Engine Cylinders | 4 | |
Fuel Type | Diesel | |
Gearbox | 8 Speed Forward 1Reverse | |
Front/Rear Axle(t) | 4/7 | |
Suspension | Multi Leaf Springs | |
Brake System | Front/Rear Drum Full Air Braking | |
Wheels and Tyre Size | 6+1/( 8.25R16LT) | |
Cab Configuration | Single Row Cab, Air Conditioning, Radio, MP3 and USB Port | |
Rated Voltage | 24V,DC | |
Cab Color | White,other color is optional | |

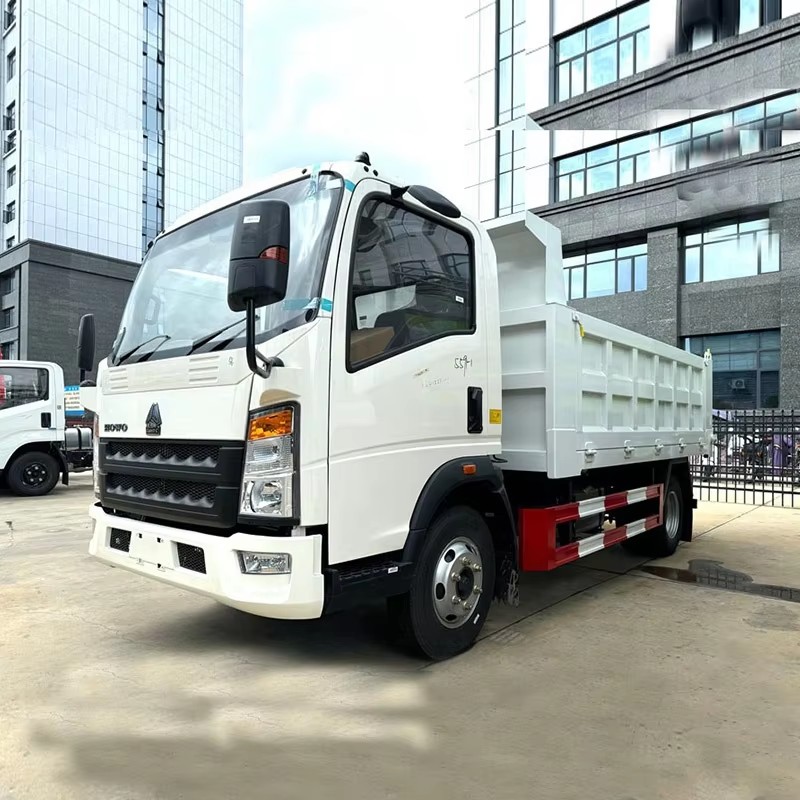

![[pics:title]](/static/upload/image/20251024/1761293018961114.jpg)

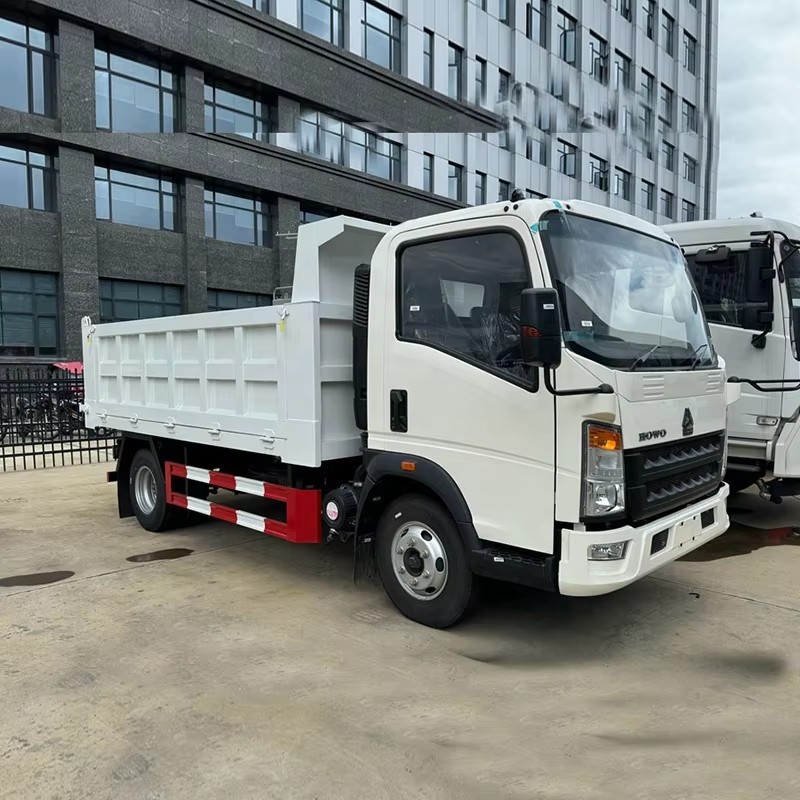

![[pics:title]](/static/upload/image/20251024/1761293017344369.jpg)

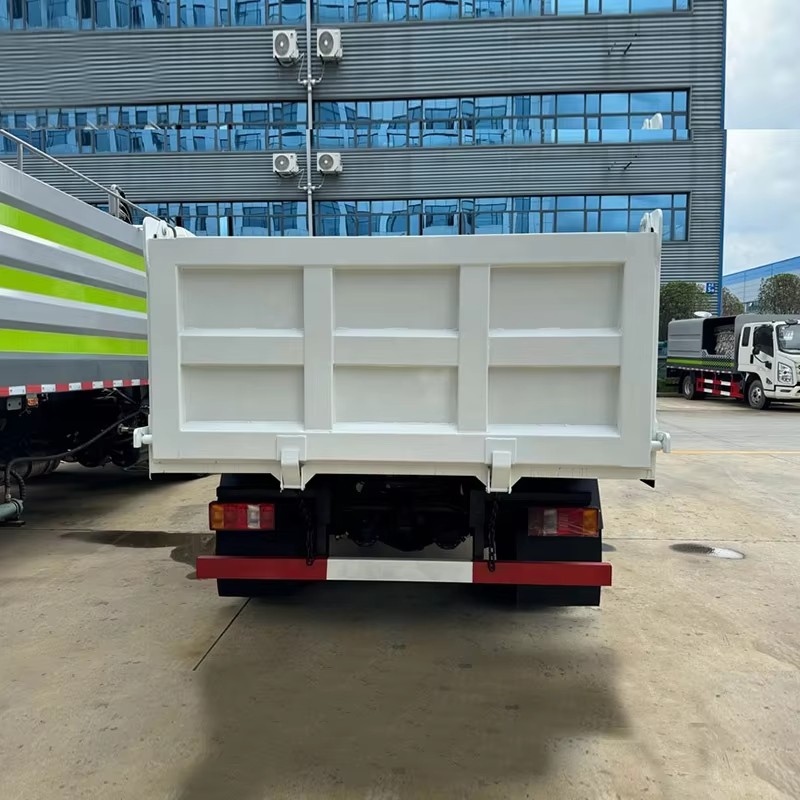

![[pics:title]](/static/upload/image/20251024/1761293018164791.jpg)

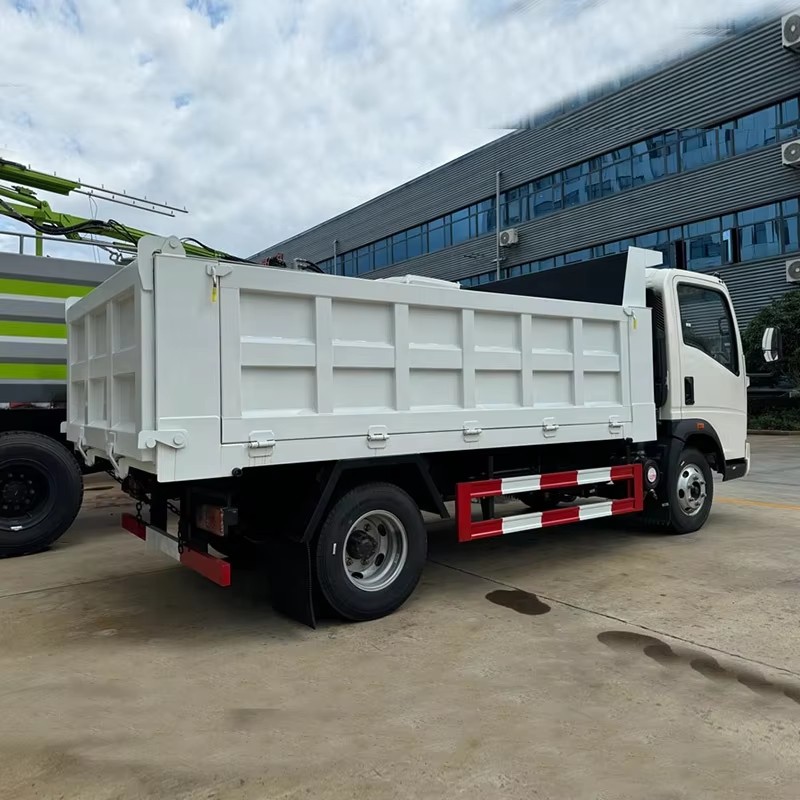

![[pics:title]](/static/upload/image/20251024/1761293018669674.jpg)
