Oil transportation vehicle
[Vehicle Technical Parameters] | |

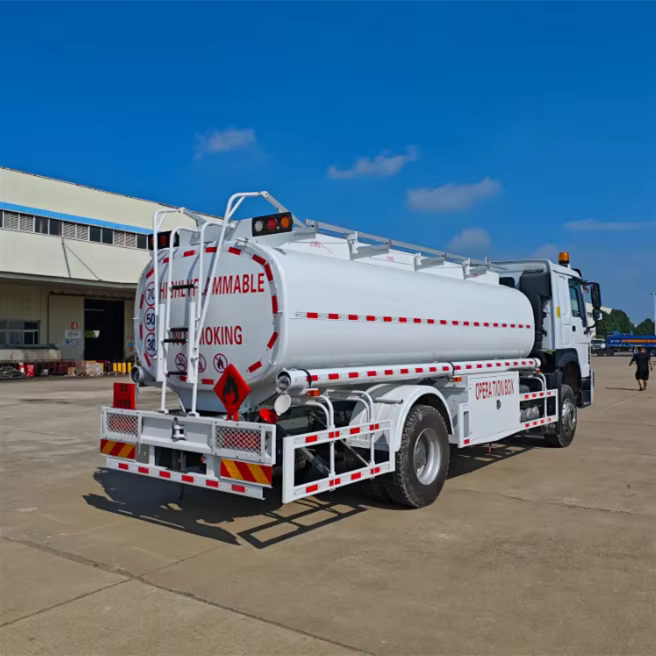

Product Name | Fuel Tank Truck |
Curb Weight(Kg) | 18000 |
Boundary Dimension(mm) | 8950*2250*2750mm |
Tank Volume(m³) | 18 |
Tank Thickness（mm） | 5 |
Tank Body Material | Carbon Steel |
Compartment | 2-6 As Customer Need |
Operating Ambient Temperature（°C） | -20~45 |
Manhole Cover | European Standard |
Emergency Shut Off Valve | Include |
Oil Gas Recovery Unit | Include |
Anti-Overflow Alarm Device | Include |
Fuel Loading method | Bottom Filling |
Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | As Required |
[Chassis Technical Parameters] | |
Chassis Brand | HOWO |
Drive Form | 6*4 LHD RHD Optional |
Steering Device | Power Assisted Steering |
Wheelbase(mm) | 4700 |
Engine Brand | SINOTRUK/MC07H.35-60 |
Horse Power(Kw) | 139KW |
Fuel Type | Diesel |
Gearbox | 8 Speed Manual |
Front/Rear Axle(t) | 5/13 |
Suspension | Multi Leaf Springs |
Brake System | Front/Rear Drum Full Air Braking |
Cab Configuration | air conditioning, radio, MP3 and USB port,A |
