Oil transportation vehicle
[Vehicle Technical Parameters] | |

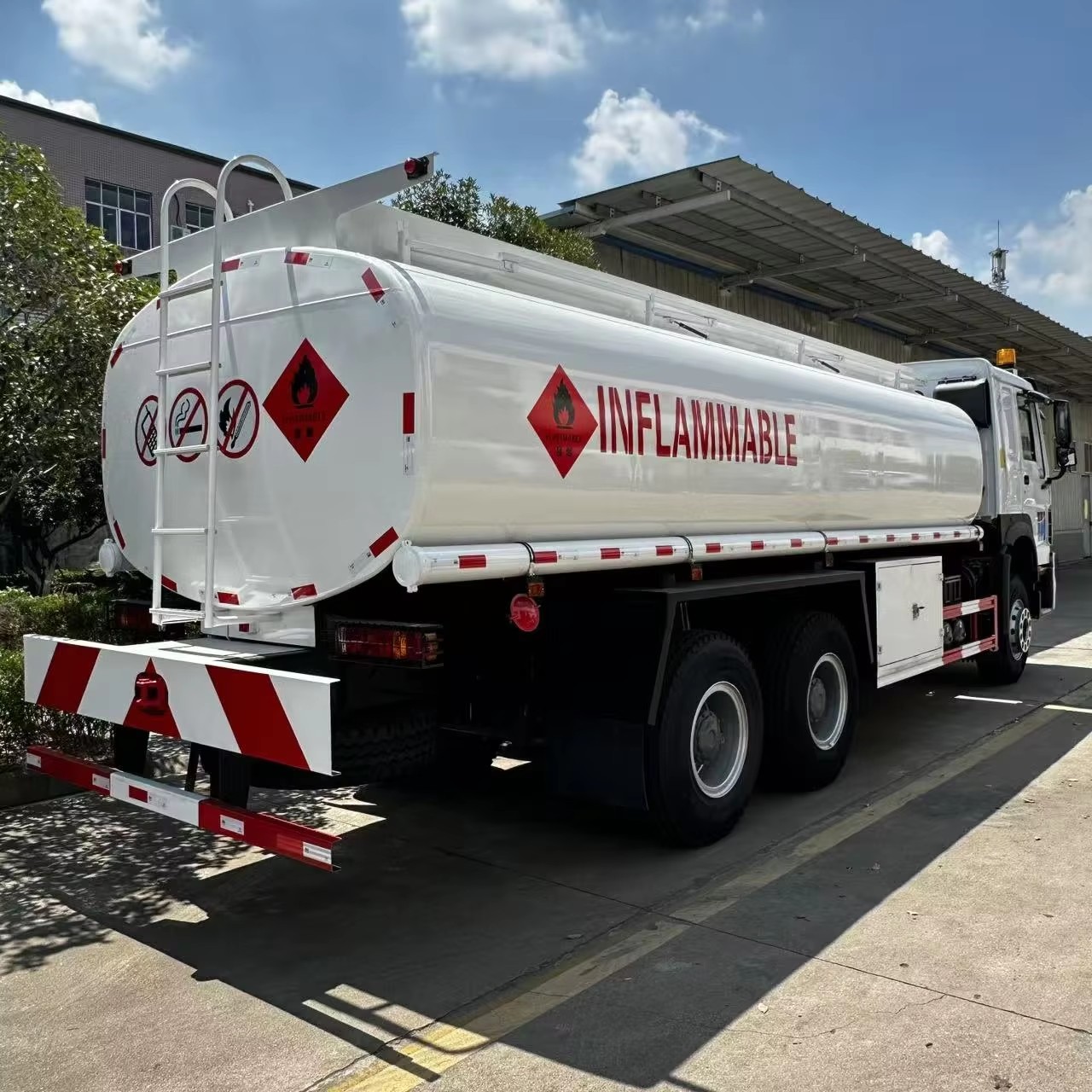

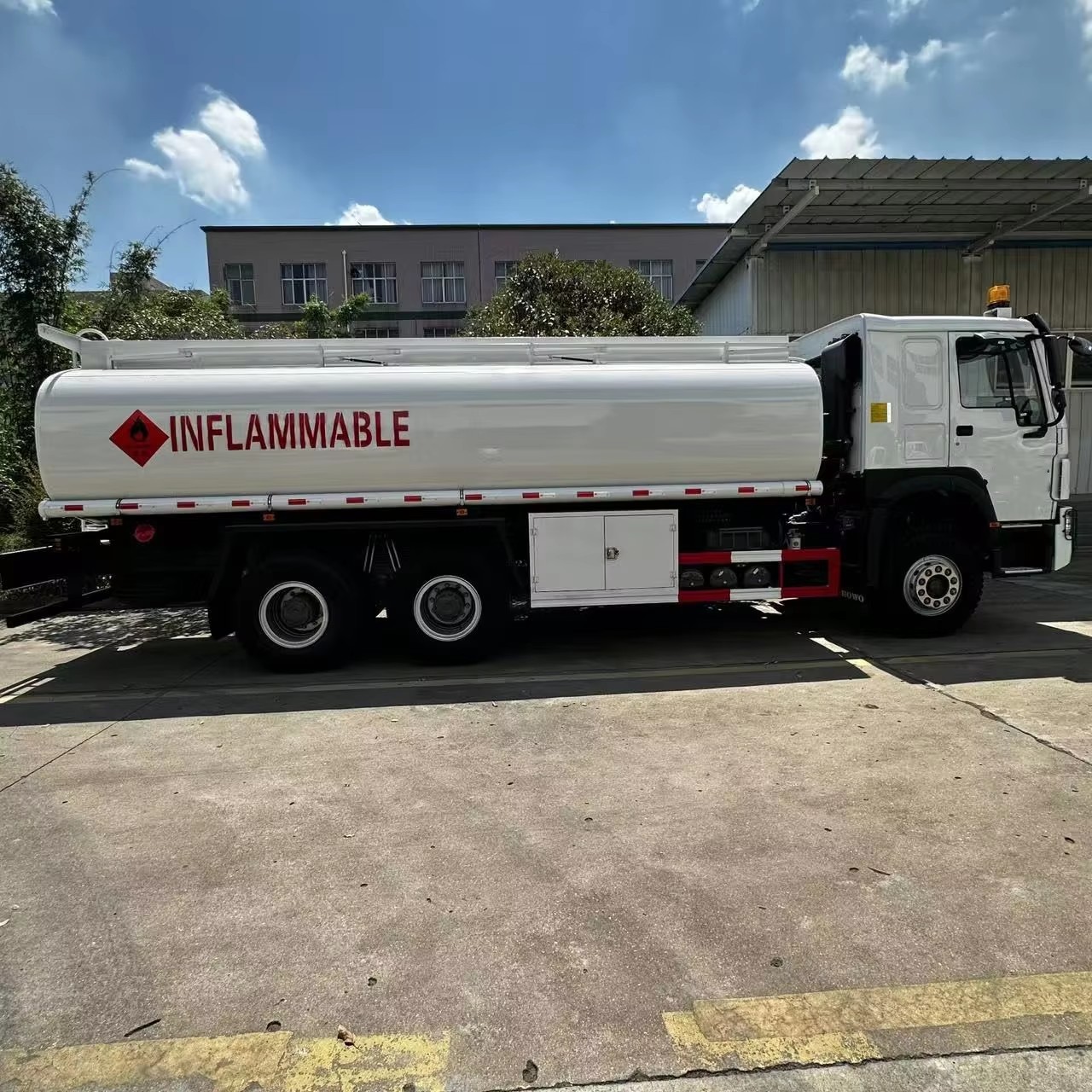

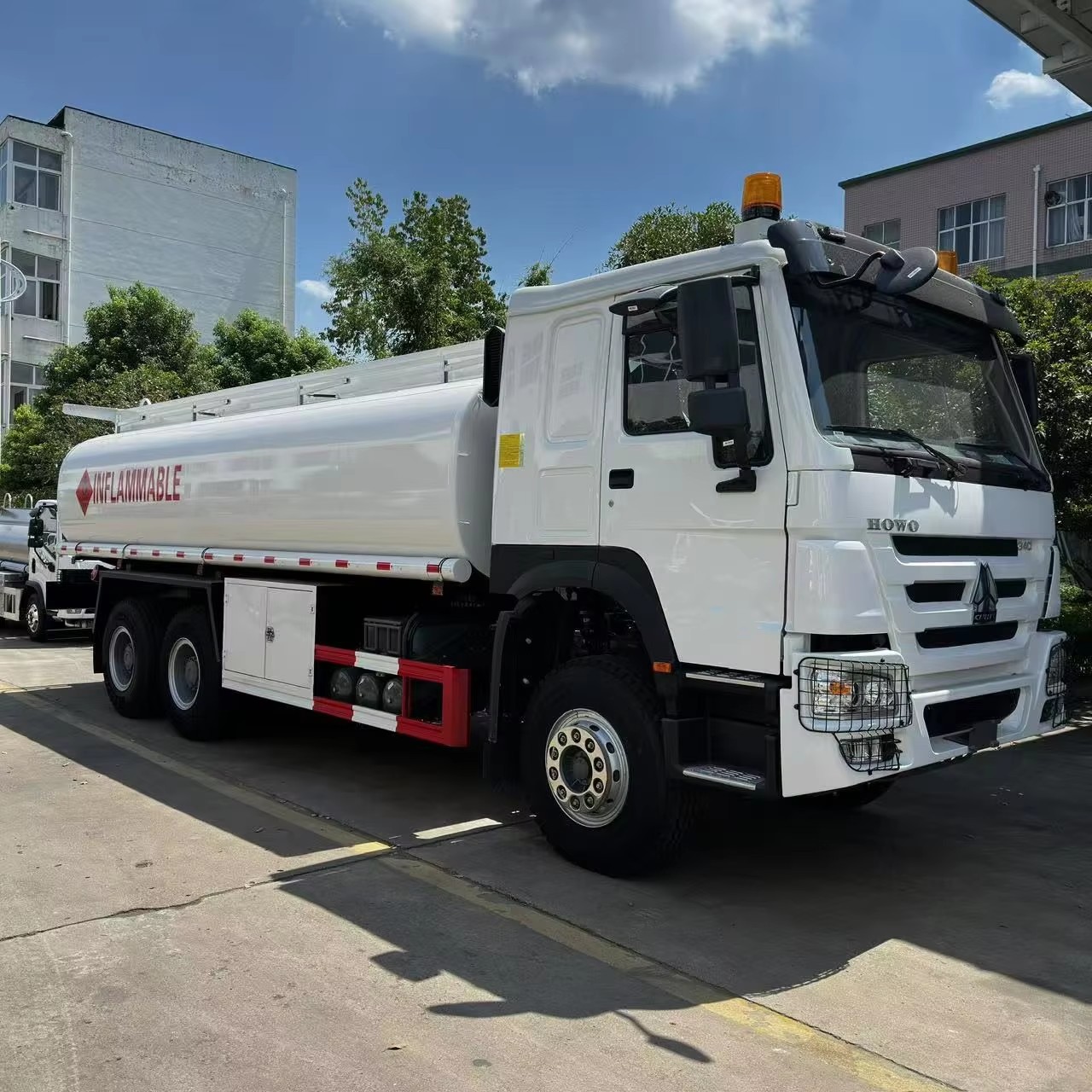

Product Name | Fuel Tank Truck |
Curb Weight(Kg) | 12400 |
Boundary Dimension(mm) | 9980*2550*3500 |
Tank Volume(m³) | 30 |
Tank Thickness（mm） | 5 |
Tank Body Material | Carbon Steel |
Compartment | 2-6 As Customer Need |
Operating Ambient Temperature（°C） | -20~45 |
Manhole Cover | European Standard |
Emergency Shut Off Valve | Include |
Oil Gas Recovery Unit | Include |
Anti-Overflow Alarm Device | Include |
Fuel Loading method | Bottom Filling |

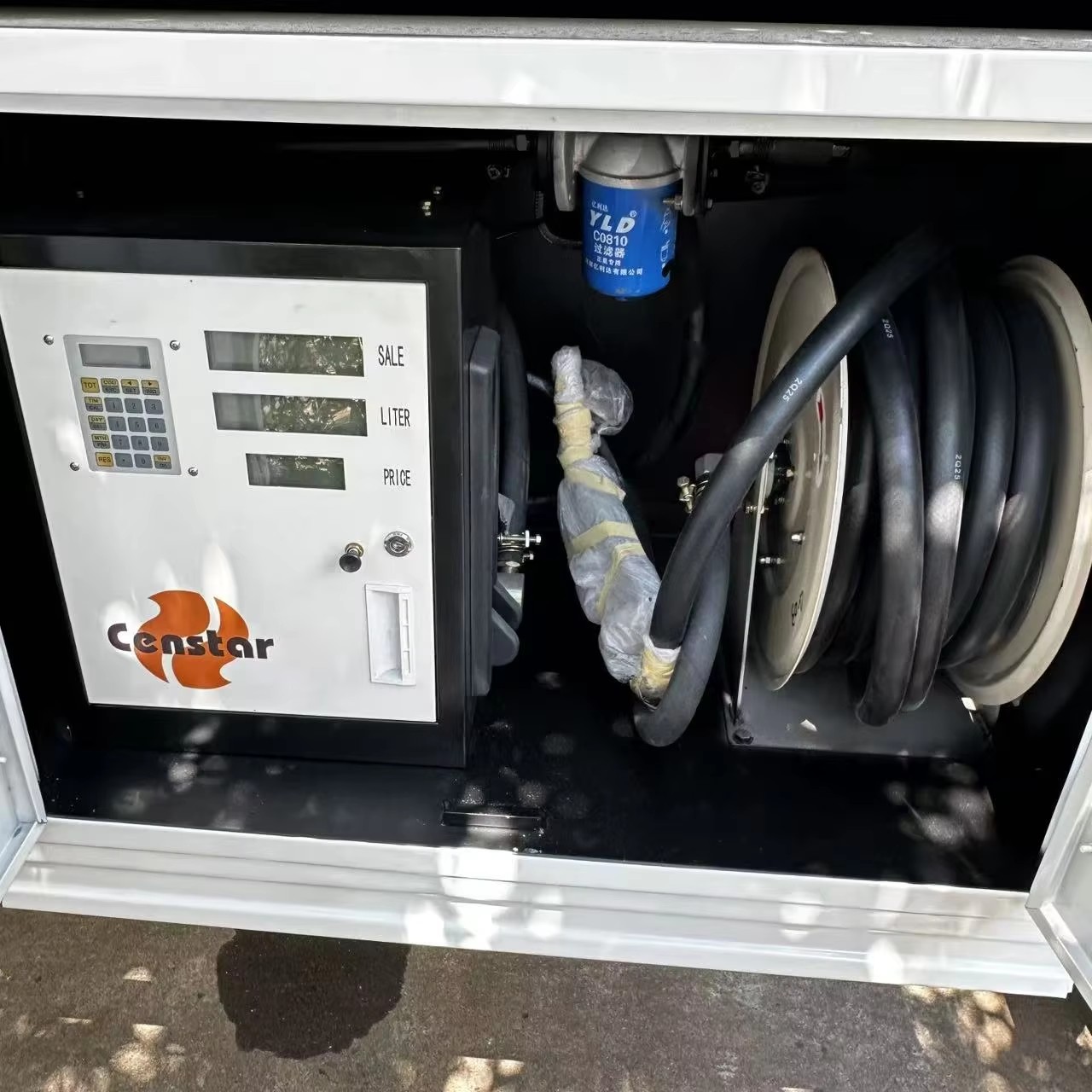

Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | As Required |
[Chassis Technical Parameters] | |
Chassis Brand | HOWO |
Drive Form | 6*4 LHD RHD Optional |
Steering Device | Power Assisted Steering |
Wheelbase(mm) | 4750*1350 |
Engine Brand | SINOTRUK/MC07H.35-60 |
Horse Power(Kw) | 257KW |
Engine Displacement(ml) | 8 |
Engine Emission Standard | Euro 3 |
Number of Engine Cylinders | 6 |
Fuel Type | Diesel |
Gearbox | 12 |
Front/Rear Axle(t) | 7.5/16/16 |
Suspension | Multi Leaf Springs |
Brake System | Front/Rear Drum Full Air Braking |
Tires Spec | 10 |
Cab Configuration | air conditioning, radio, MP3 and USB port,A |
