[VehicleTechnical Parameters] | |

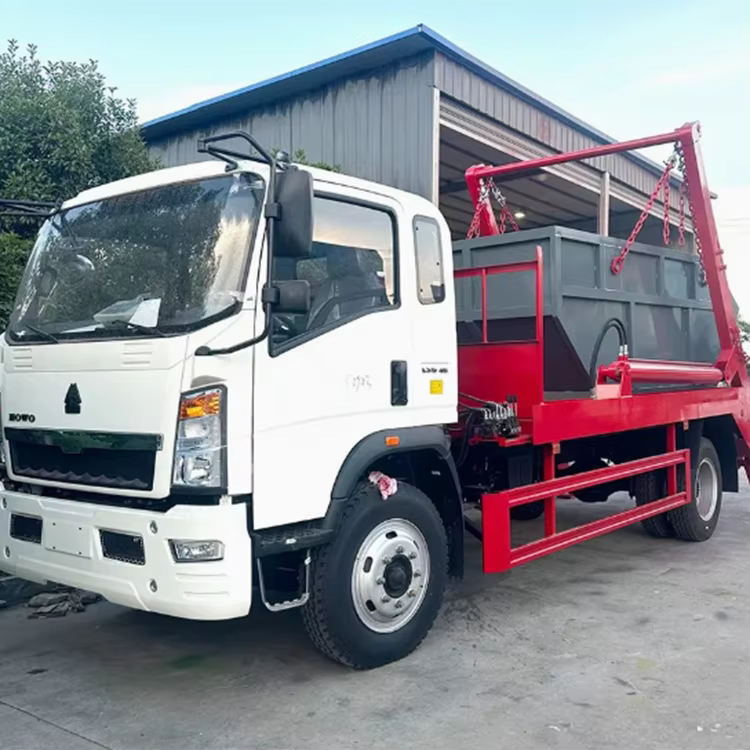

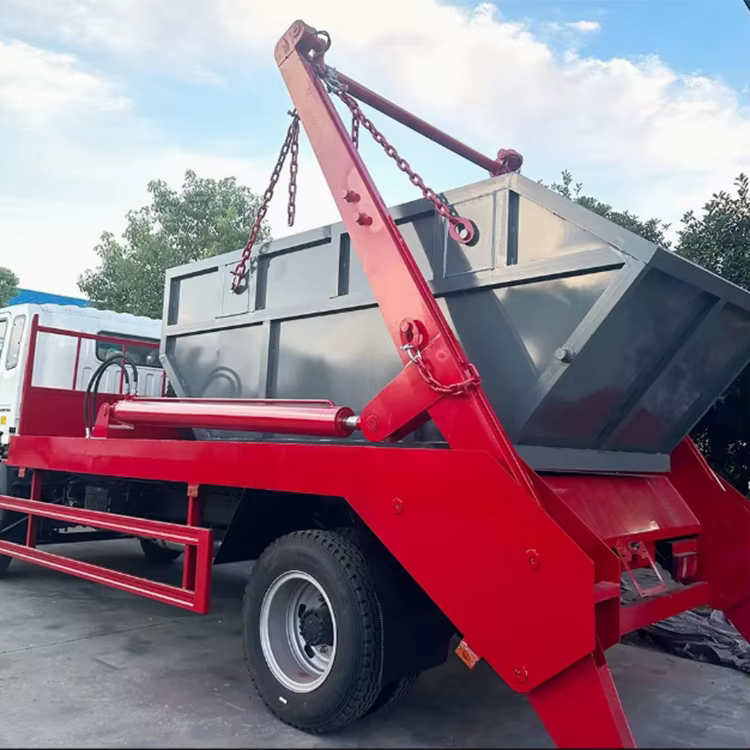

Product Name | Swing arm garbage truck |
Kerb Weight (Kg) | 5200 |
Overall Dimensions (mm) | 6950*2360*3250 |
Box volume (m3) | 12 |
Box thickness (mm) | 4 on the side and 4 at the bottom |
Box Body Material Quality | Q345 manganese steel plate |
Compression Density (t/m ³） | 0.6-0.8 |
Working ambient temperature (℃) | -20-45 |
Sewage Tank Capacity (L) | 400 |
Filling cycle time (S) | ≤35 |
Compression cycle time (S) | ≤15 |
Uninstall cycle time (S) | ≤60 |
Operating Mode | Automatic + Manual |
Max Passengers Allowed | 3 |
[Chassis Technical Parameters] | |
Brand Name | HOWO |
Brake | Empty ship air brake/oil brake |
Fuel type | Diesel |
Engine Power（kw） | 118 |
Front Axle/Rear Axle (t) | 4.5/9 |
Gearbox Model | 6-speed transmission |
Number of axes | 2 |
Wheelbase (mm) | 4200 |
Number of tires | 6 |
Tire size | 8.25R20 14PR |
