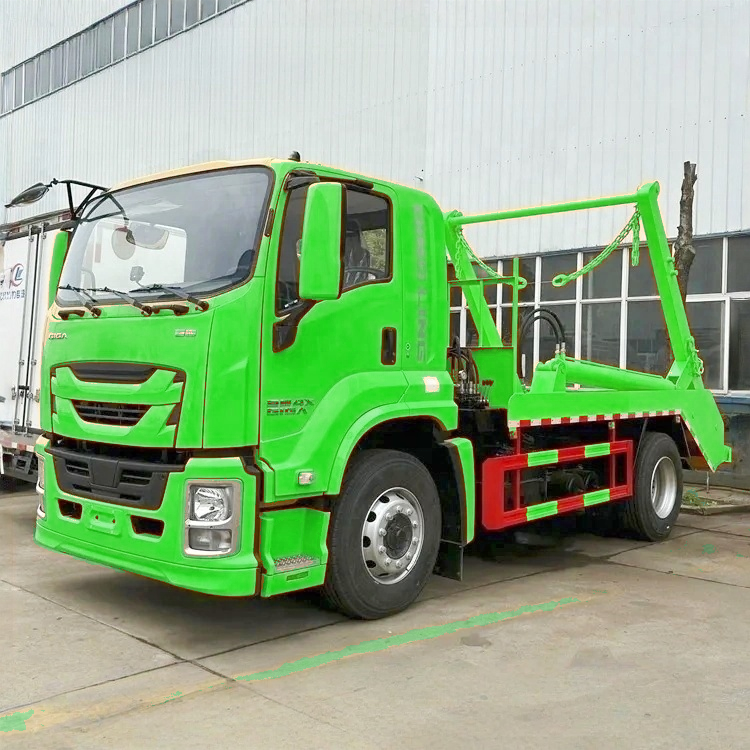

Vehicle name | Isuzu skip loader/swing arm garbage truck | |

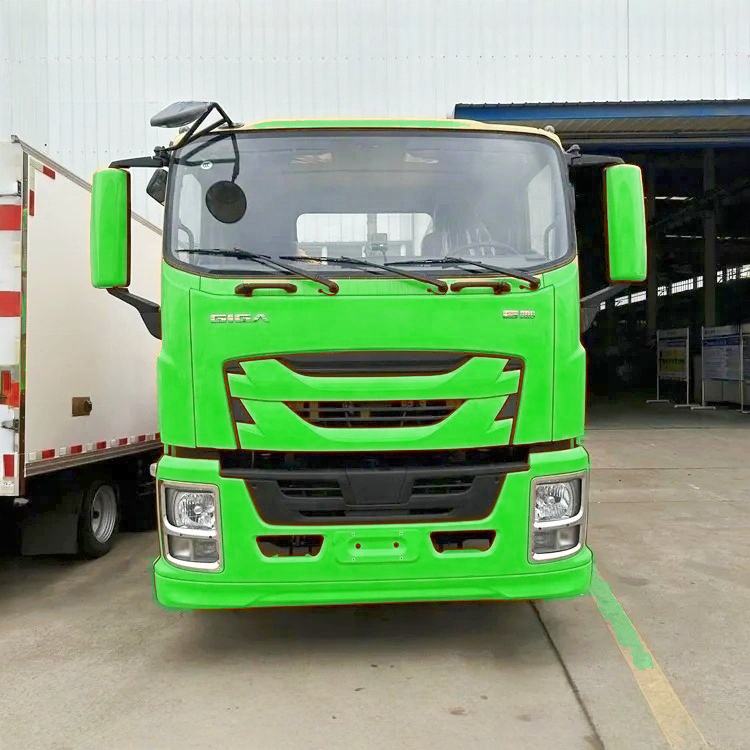

Cabin | Driving type 4x2 | |
Single, with A/C. Left/Right Hand Drive | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8600*2500*3500 |
Wheel base (mm) | 5000 | |
Wheel track (front/rear) (mm) | 1965/1860 | |
Approach/Departure angle(°) | 18/20 | |
Weight | Gross Weight | 18000 kg |
Curb Weight | 8600kg | |
Loading Capacity | 15000 kg | |
Front axles loading capacity | 6 ton | |
Rear axles loading capacity | 12ton | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | Isuzu |
Type | 4/6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 205/240 HP | |
Emission standard | Euro 2/3/4//5 | |
Gearbox | FAST, 5/6/8 forwards &1 reverse | |
Steering Gear | Hydraulic steering with power assistance | |
Fuel tank (L) | 100 /200/300L | |
Tire | 7.00R16/9.00 tires with one spare, totally 7 pcs. | |

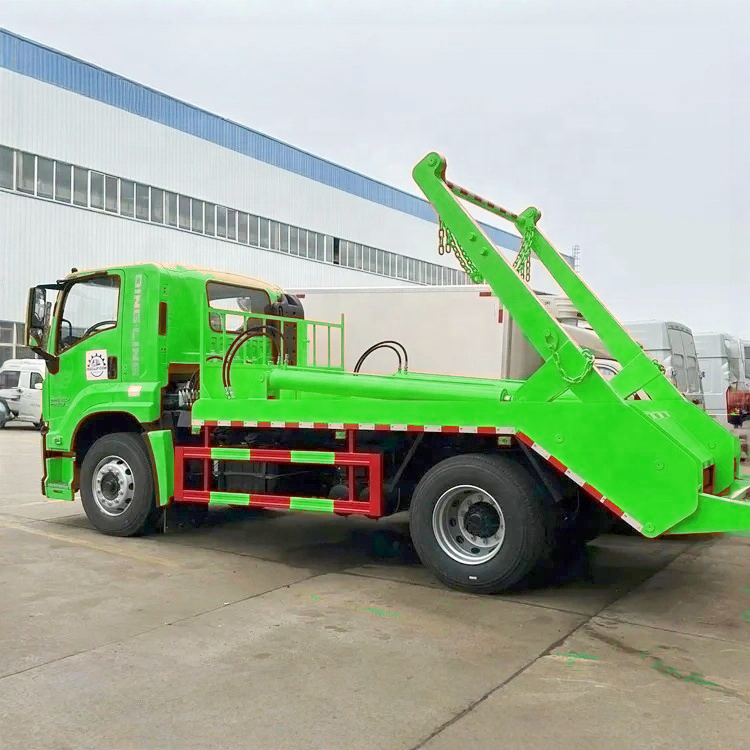

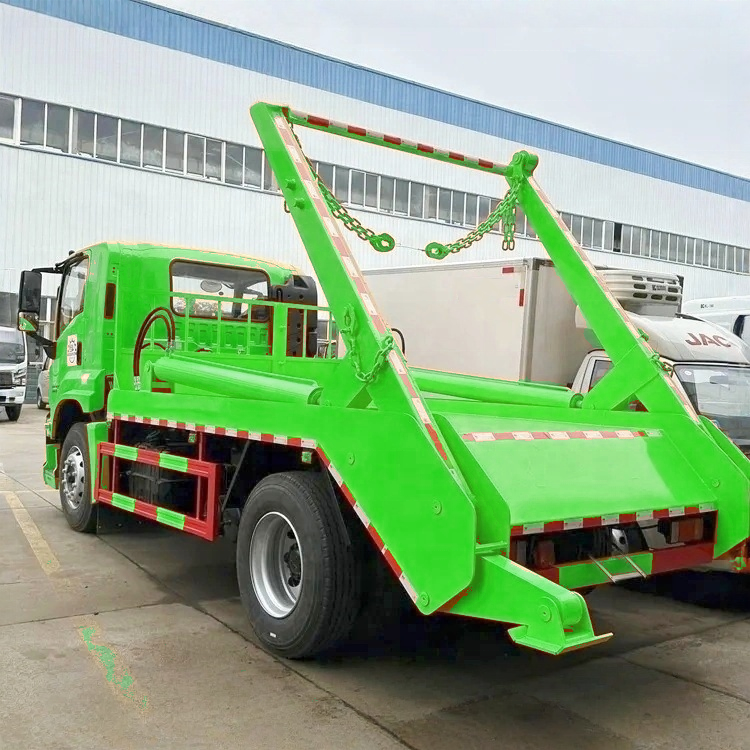

Swing arm system with cargo box | ||
· Garbage cargo box :5-14CBM , Carbon steel material , underground type or aboveground type can be optional. | ||
· PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg | ||
· Swing arm maximum pivot angle 145; hoisting time 30s; Unloading time 50s. | ||
![[pics:title]](/static/upload/image/20251115/1763198528582249.png)
![[pics:title]](/static/upload/image/20251115/1763198526955501.png)
![[pics:title]](/static/upload/image/20251115/1763198532406863.png)
![[pics:title]](/static/upload/image/20251115/1763198533947892.png)
