CHU SHENG
【Vehicle Technical Parameters】 | |

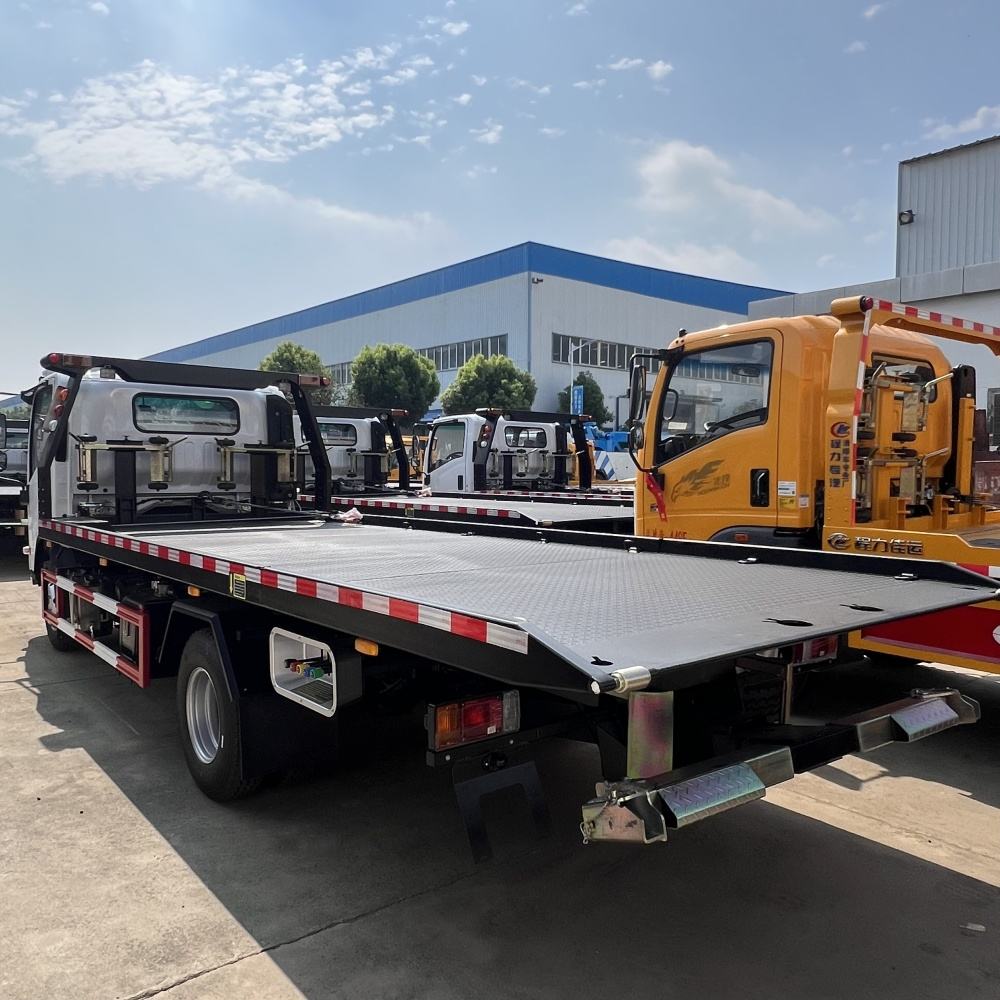

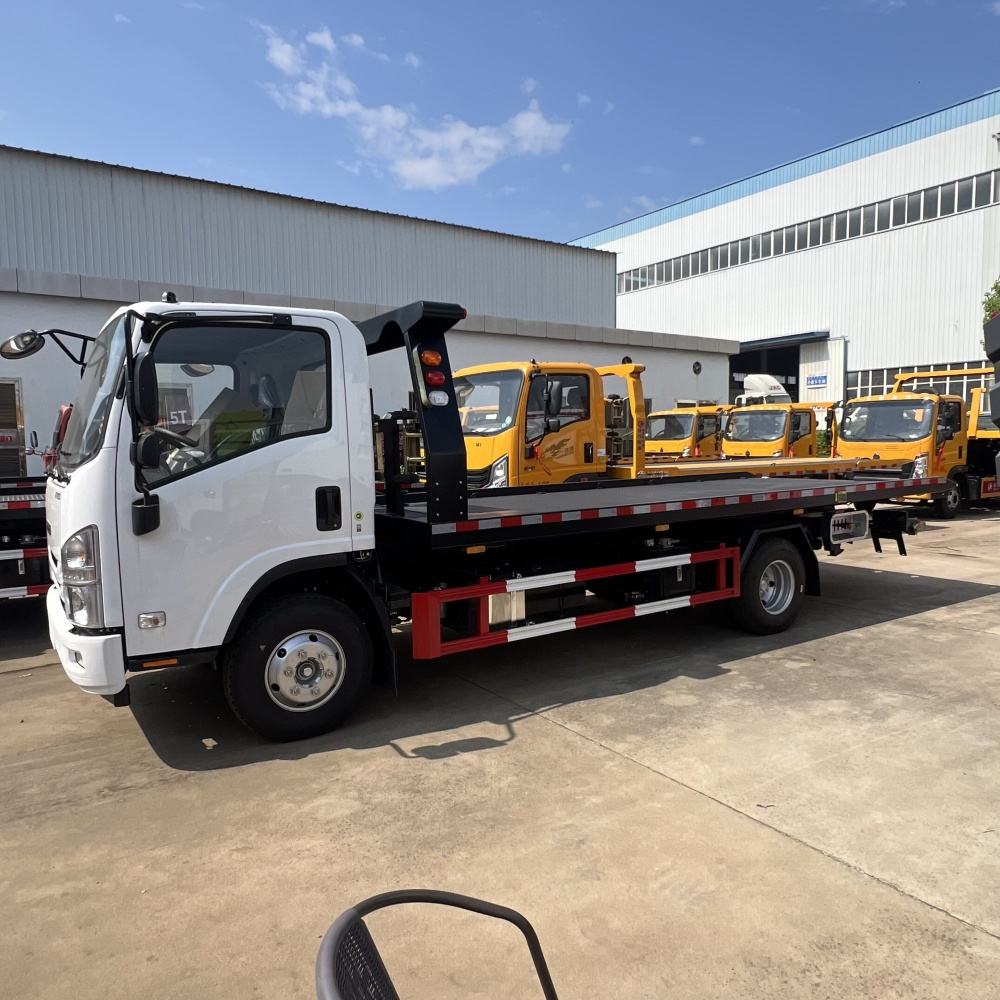

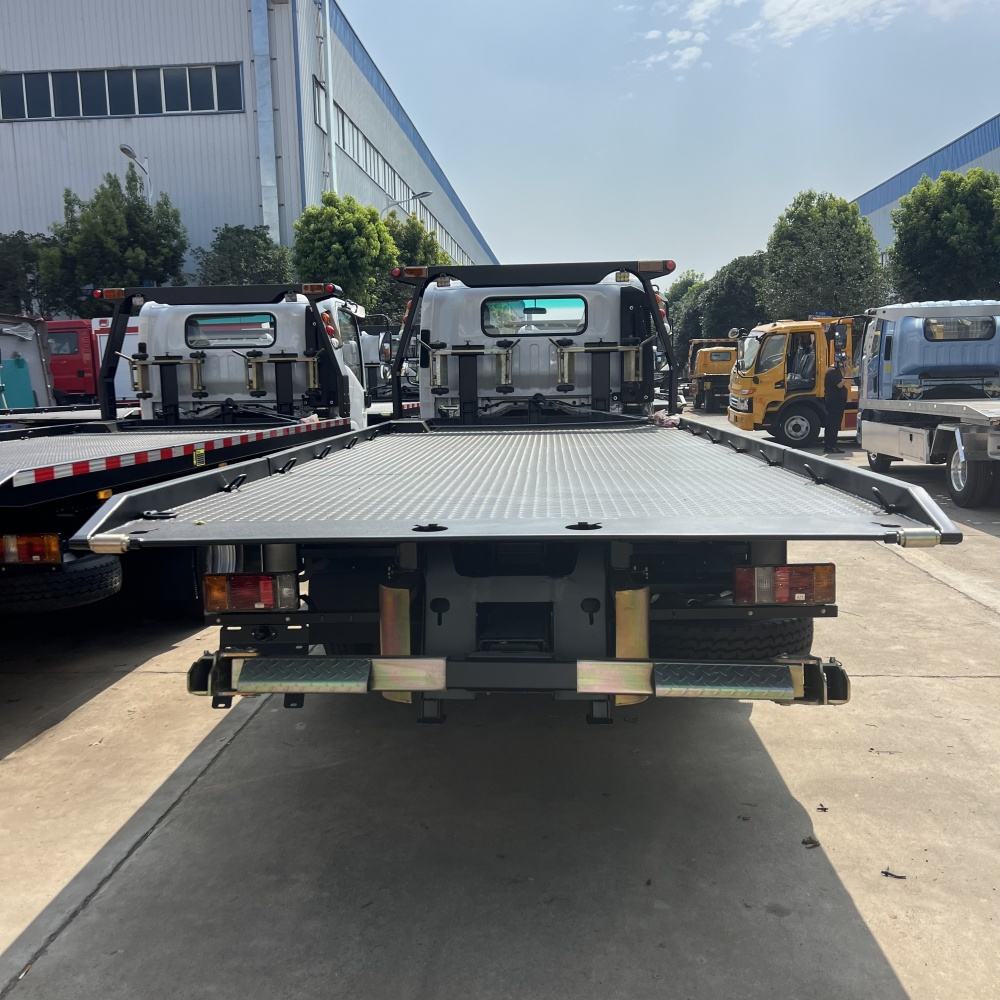

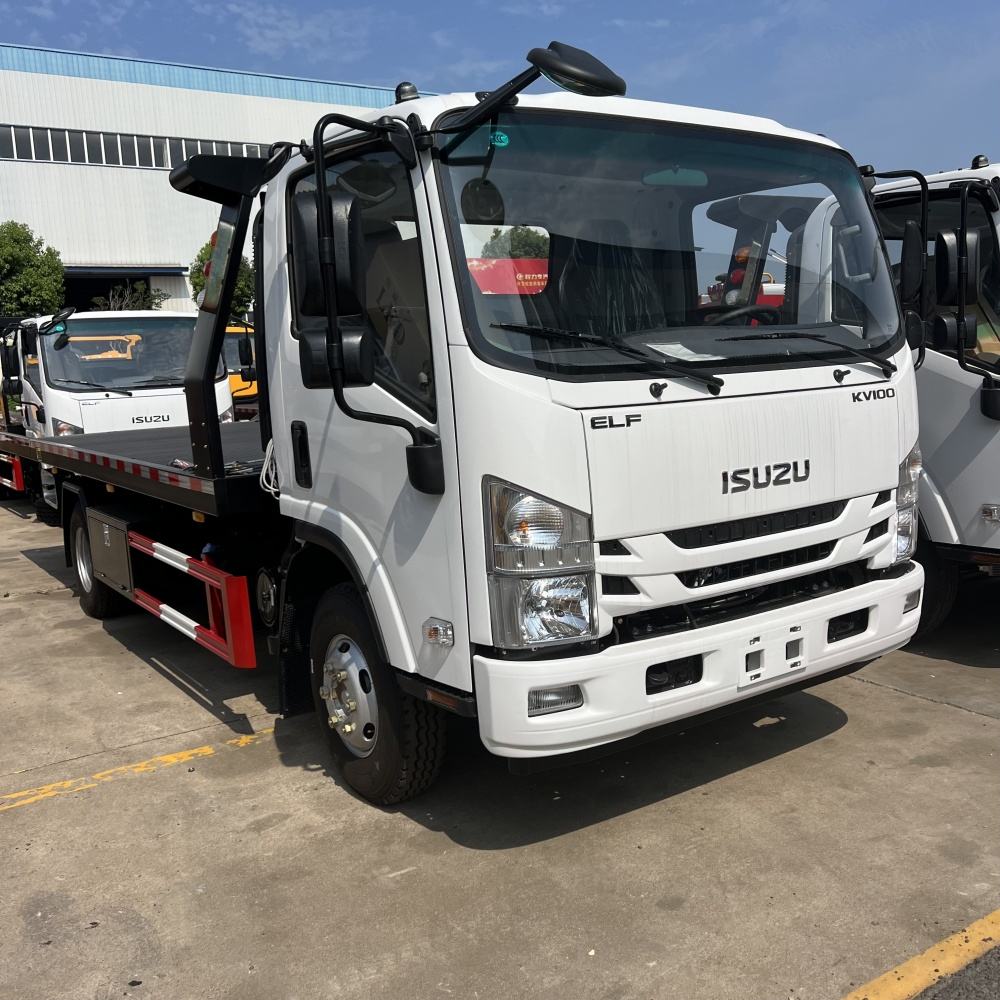

Product Name | ISUZU Wrecker |
Curb Weight(Kg) | 4650 |
Boundary Dimension(mm) | 7500*2300*2300 |
Slab Length(mm) | 5600 |
Plate Width（mm） | 2300 |
Plate Bearing Weight（t） | 8 |
The Rear Bracket Arm Carries The Weight(t） | 4 |
Winch Pull（t） | 4 |
Total Length of Wire Rope（m） | 20 |
1Auxiliary Wheel | 2 |
Operating Ambient Temperature（°C） | -20-45 |
Max Passengers Allowed | 3 |
【Chassis Technical Parameters】 | |
Chassis Name | ISUZU |
Brake | air brake |
Type of Fuel | diesel |
Engine Power（KW） | ISUZU 98 |
Front Axle/Rear Axle（t） | 3/5 |
Gearbox | 5 |
Number of Axles | 2 |
Wheelbase (mm) | 3850 |
Number of Tires | 6 |
Tire Size | 8.25R16 |
