【Vehicle Technical Parameters】 | ||

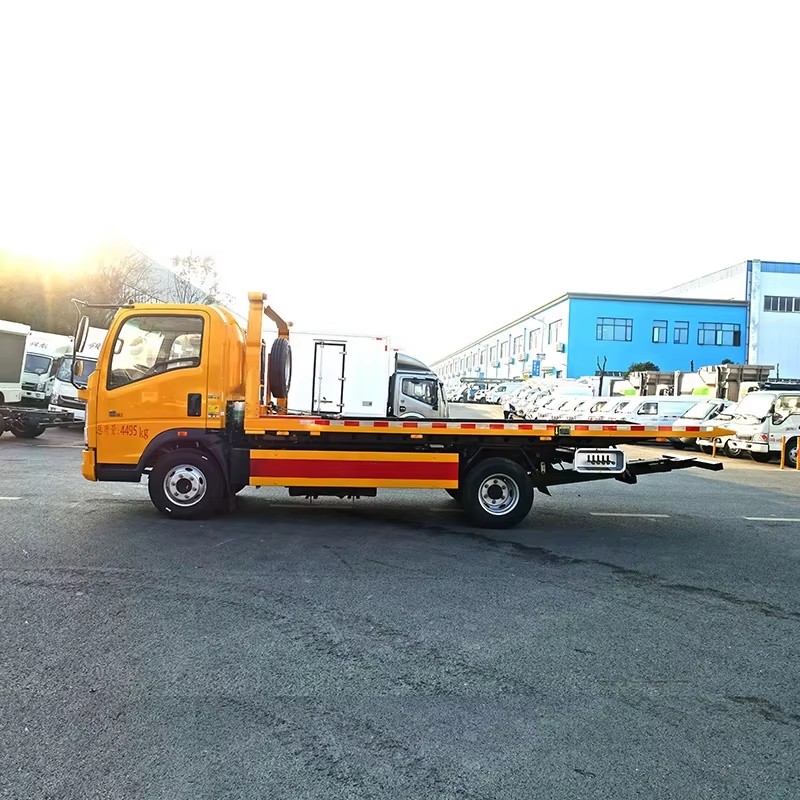

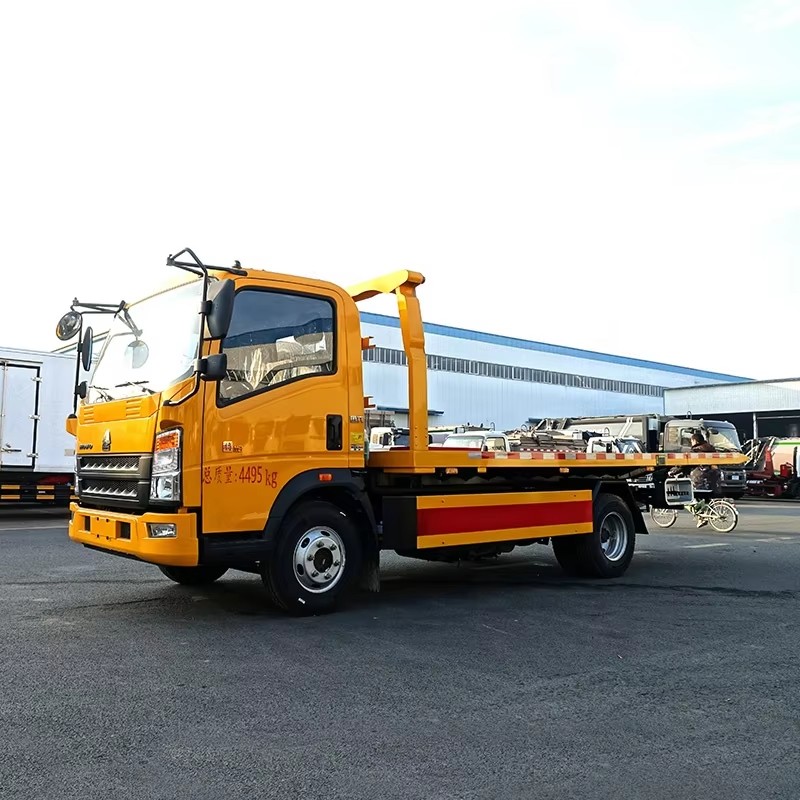

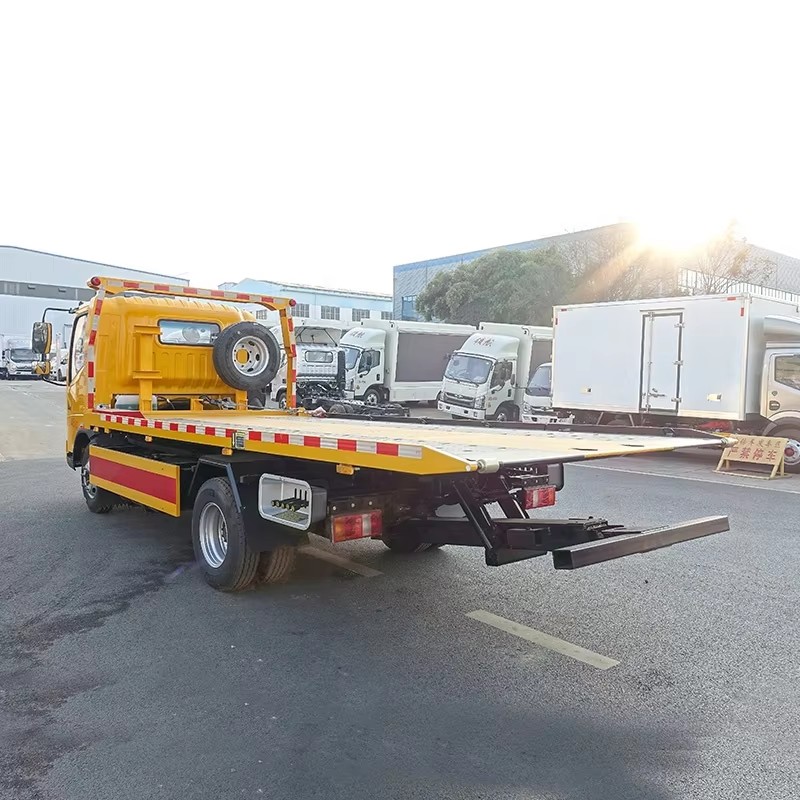

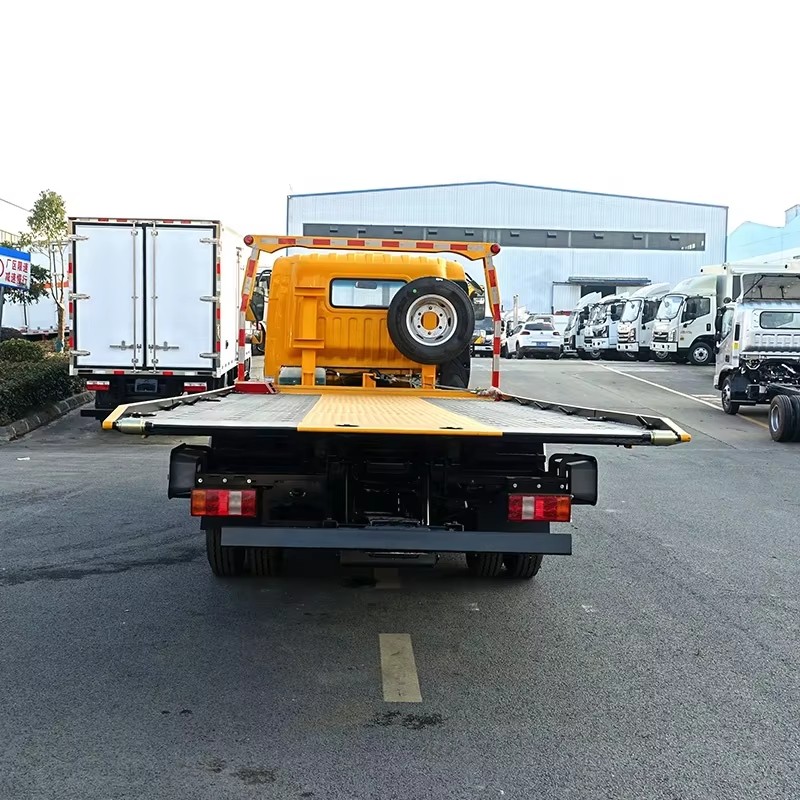

Product Name | Wrecker Towing Truck | |
Curb Weight(Kg) | 4100 | |
Boundary Dimension(mm) | 5995×2300×2400 | |
Slab Length(mm) | 5400 | |
Plate Width（mm） | 2300 | |
Plate Bearing Weight（t） | 3 | |
The Rear Bracket Arm Carries The Weight(t) | 2.5 | |
Winch Pull（t） | 4 | |
Total Length of Wire Rope（m） | 20 | |
Auxiliary Wheel | A Pair | |
Operating Ambient Temperature（°C） | -20~45 | |
Max Passengers Allowed | 3 | |
【Chassis Technical Parameters】 | ||
Chassis Name | SINOTRUK | |
Brake | Automatically Air-Cut Brake | |
Type of Fuel | Diesel Oil | |
Engine Power（KW） | Wei Chai 103 | |
Front Axle/Rear Axle（t） | 1.5/3.5 | |
Gearbox | 5 Speed Manual Transmission | |
Number of Axes | 2 | |
Wheelbase (mm) | 3280 | |
Number of Tires | 6 | |
Tire Spec. | 7.00R16 | |
