Vehicle Technical Parameters | ||

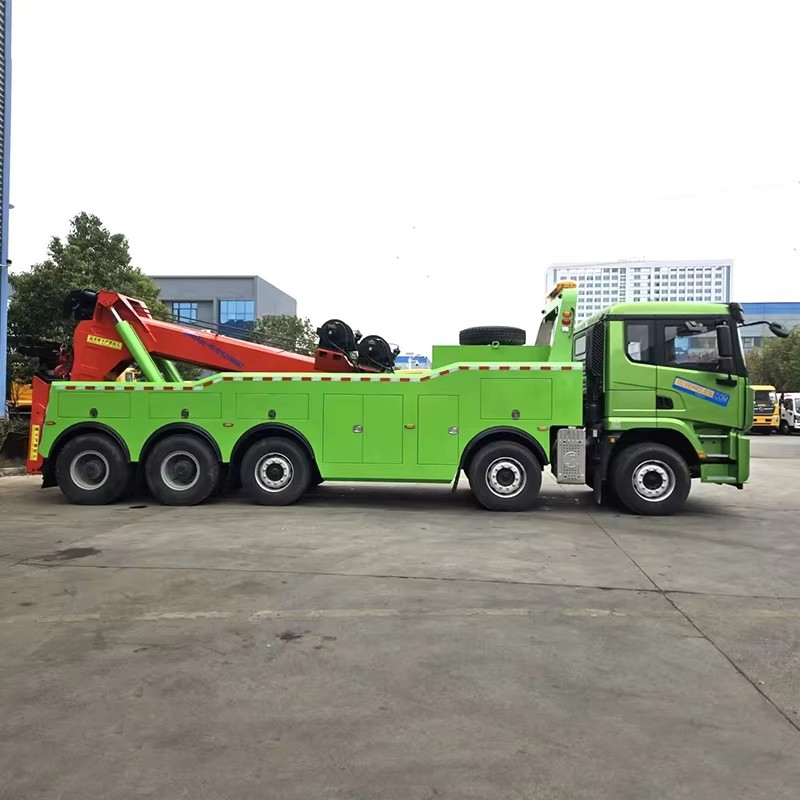

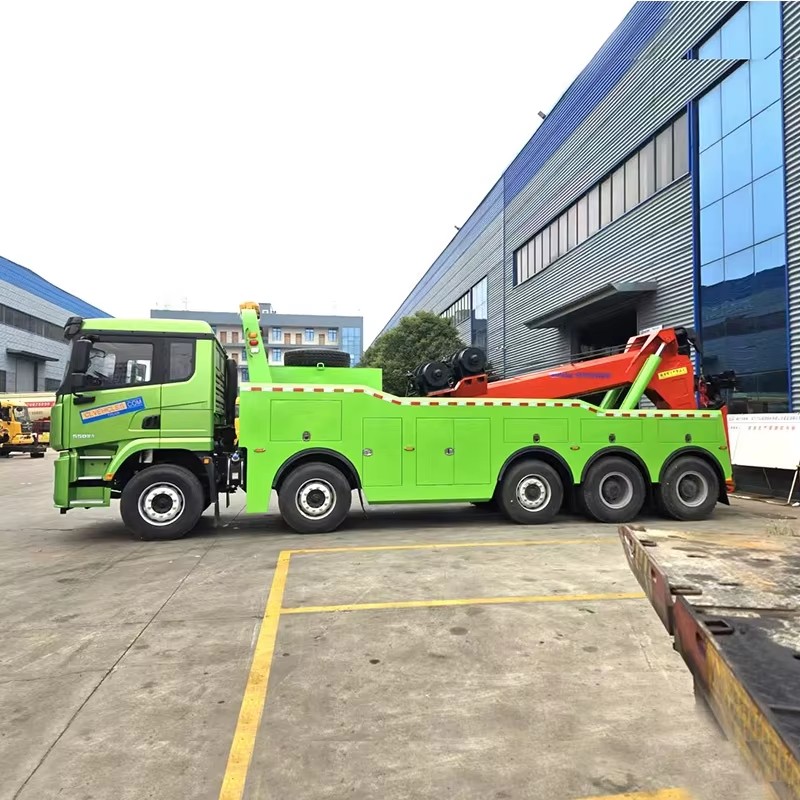

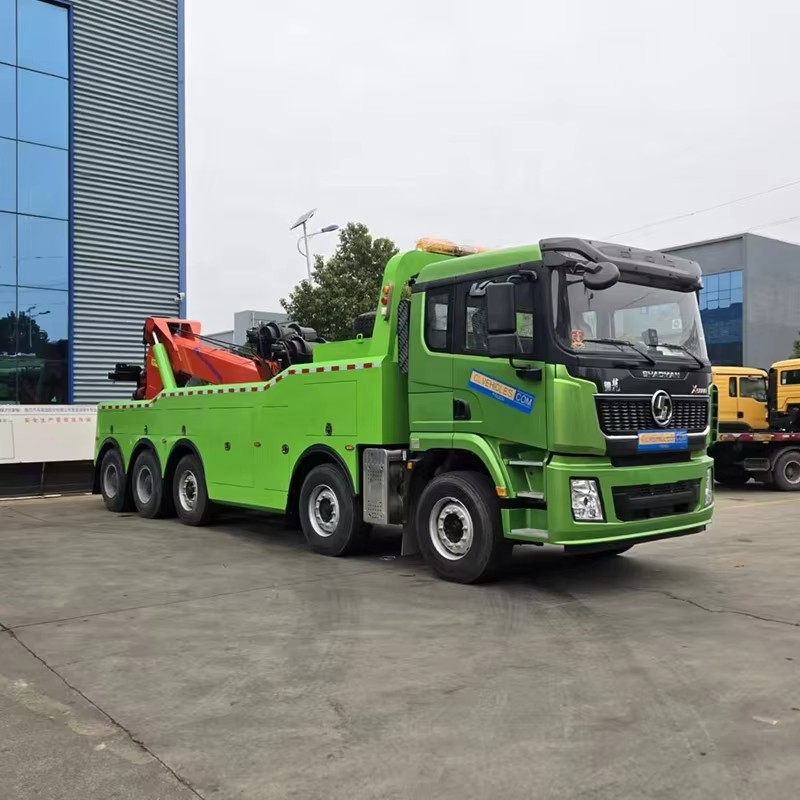

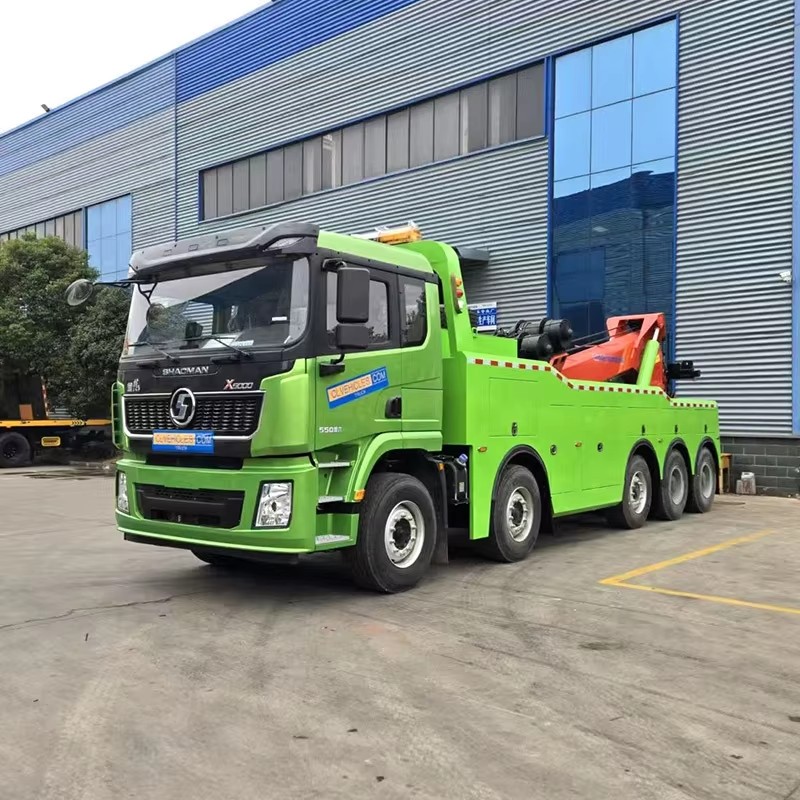

Product Name | Wrecker Towing Truck | |
Curb Weight(Kg) | 27800 | |
Overall Dimension(mm) | 11700×2550×3450 | |
Maximum Towing and Traction Mass（kg） | 53000 | |
Max. Lifting Capacity（kg | 5000 | |
Max. Lifting Height（m） | 7 | |
Max. Towing Capacity（kg） | 35000 | |
Maximum Towing Capacity at Full Extension (kg) | 15000 | |
Winch Pulling Capacity(Kg) | 50000 | |
Steel Wire Rope(m) | 50 | |
Toolbox Materials | Carbon Steel /Aluminum Alloy Optional | |
Fixing Fork(pcs) | 5 | |
L-shaped Tire Holder(pair) | 1 | |
Chain Hook（pcs） | 1 | |
Yellow Warning Lights Optional（pcs） | 1 | |
Auxiliary Tracheal Assembly（pcs） | 1 | |
Binding Straps（pcs） | 2 | |
Chassis Technical Parameters | ||
Chassis Brand | Shacman | |
Drive Form | 10*4 | |
Type of Fuel | Diesel Oil | |
Engine Power（KW） | 405 | |
Front Axle/Rear Axle（t） | 9/9/9/13/13 | |
Gearbox | 12JSDX240TA,12 speed forward 2 reverse | |
Number of Axles | 6 | |
Wheelbase (mm) | 2100+3475+1400+1400 | |
Number of Tires | 14+1 | |
Tyre Specification | ( 12.00R20) | |
