CHU SHENG
Description | ambulance van car | ||
drive model | Right hand drive; new condition | ||
fuel type | diesel oil | ||
vehicle main dimensions | dimensions(L*W*H)mm | 5780*1974*2440 | |
wheel base (mm) | 3750 | ||
front track(mm) | 1740 | ||
rear track(mm) | 1704 | ||
front overhang(mm) | 933 | ||
rear overhang(mm) | 1097 | ||
engine | model | DURATORQ4D226H | |
Type | In-line four cylinder | ||
maximum output power | 103KW | ||
horse power | 140HP | ||
maximum torque | 200N.m | ||
vehicle displacement | 2198ml | ||
emission standard | euro II III IV V | ||
steering gear | 8AT Automatic transmission | ||
tire | 215/75R16LT | ||
fuel tank | 200L | ||
Max driving speed(km/h) | 145 | ||
gross weight | 3700kg | ||
vehicle weight | 2650kg | ||
load capacity | 1050kg | ||
cab | seats requirement | ||
ford brand.with A/C in cabin | |||
Category | Item | Basic | Care | Premium |
Safety | ABS Brake System | ✓ | ✓ | ✓ |
Central Door Locking | ✓ | ✓ | ✓ | |
Driver Airbag | ✓ | ✓ | ✓ | |
Comfort | Power Windows | ✓ | ✓ | ✓ |
Remote Key | ✓ | ✓ | ✓ | |
Factory HVAC (Driver Cabin) | 2 sets | 2 sets | 2 sets | |
Triple Driver Seats | ✓ | ✓ | ✓ | |
Exterior | White Body + Red Reflective Strips | ✓ | ✓ | ✓ |
2/3 Frosted Medical Window Film | ✓ | ✓ | ✓ | |
Warning System | 100W Siren | ✓ | ✓ | ✓ |
Front 3-Eye Warning Light | ✓ | - | - | |
Rear Beveled Strobe Lights | 2 | 2 | 2 | |
Side Blue/White Strobe Lights | 6 | 4 | 4 | |
Electrical | Pure Sine Inverter (500W/1000W) | 500W | 500W | 1000W |
220V Sockets | 2 | 2 | 4 | |
12V Sockets | 1 | 1 | 2 | |
UV Disinfection Lamp | ✓ | ✓ | ✓ | |

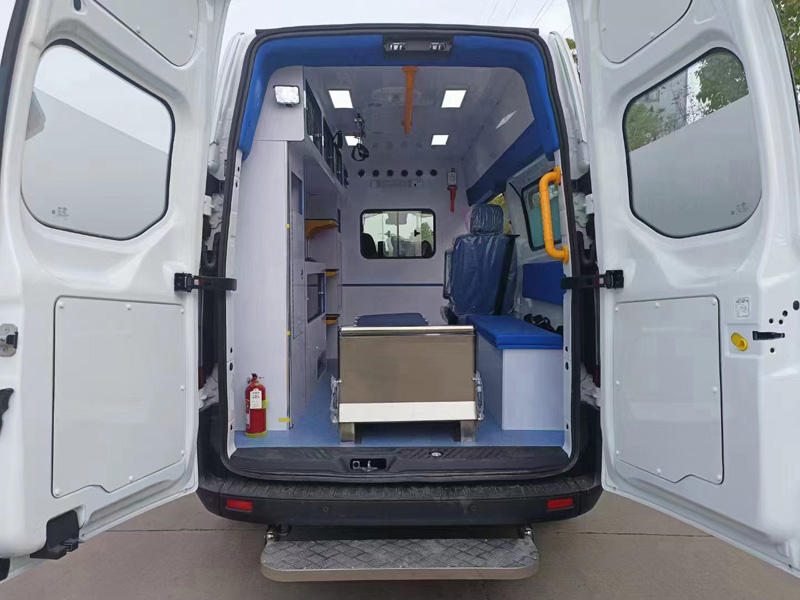

Medical Cabin | Oxygen System (10L Cylinders x2) | ✓ | ✓ | ✓ |
Auto-loading Stretcher | ✓ | ✓ | ✓ | |
Sliding IV Pole | - | - | ✓ | |
Antibacterial Flooring (Blue) | ✓ | ✓ | ✓ |
Feature | Basic | Care | Premium |
Partition | Sliding Window Partition | PVC Partition | Polymer Hard Partition |
Storage | Left Medical Cabinet | Left Overhead Cabinet | Triple-layer Equipment Rack |
Oxygen System | 2 Ports + 1 Humidifier | 2 Ports | 2 Ports + Ventilator Port |
Seating | 1 Doctor + 2 Bench Seats | 1 Doctor + 2 Bench Seats | 3 Doctor Seats |
Ventilation | Bidirectional Fan | Bidirectional Fan | Electric Vent Fan |
Ceiling | Original Roof | Original Roof | Polymer Hard Top |
Item | Availability |
Negative Pressure System | Customizable |
Rear Step | ✓ |
Navigation + Rearview Camera | ✓ |
Stretcher Compartment | ✓ |
Scoop/Stair/Folding Stretchers | ✓ |
ABS Interior Trim | Care/Premium only |
Item | Description | Availability |
1 | Negative pressure system | Customizable |
2 | Rear-facing foldable seat | Optional |
3 | Stretcher compartment | Optional |
4 | Scoop/stair/folding stretchers | Optional |
5 | Middle/rear boarding steps | Optional |
6 | Three-tier equipment rack | (Care Model only) |
7 | Three-position adjustable stretcher | (Care Model only) |
