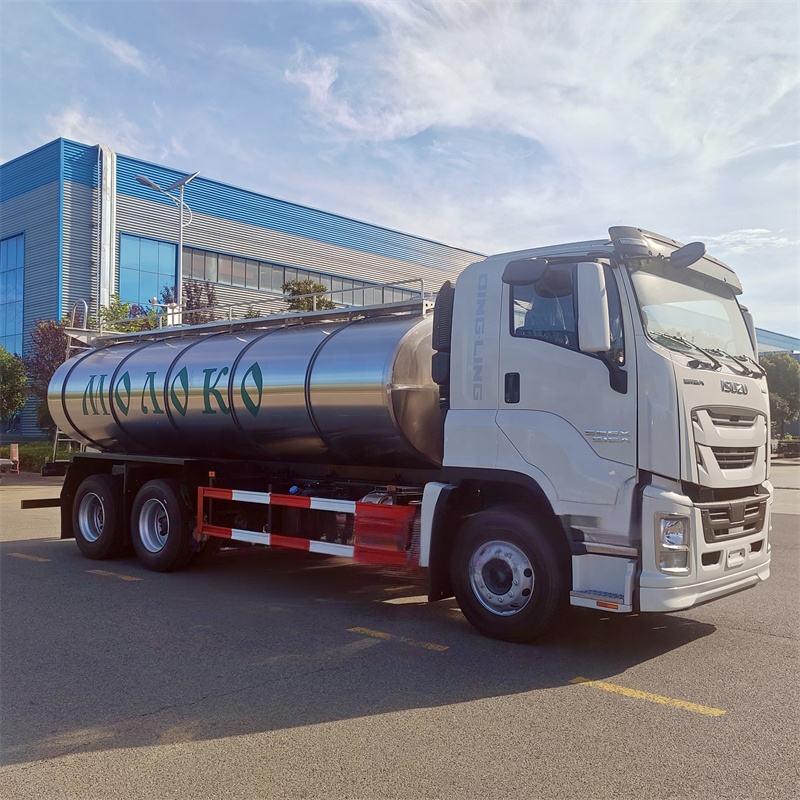

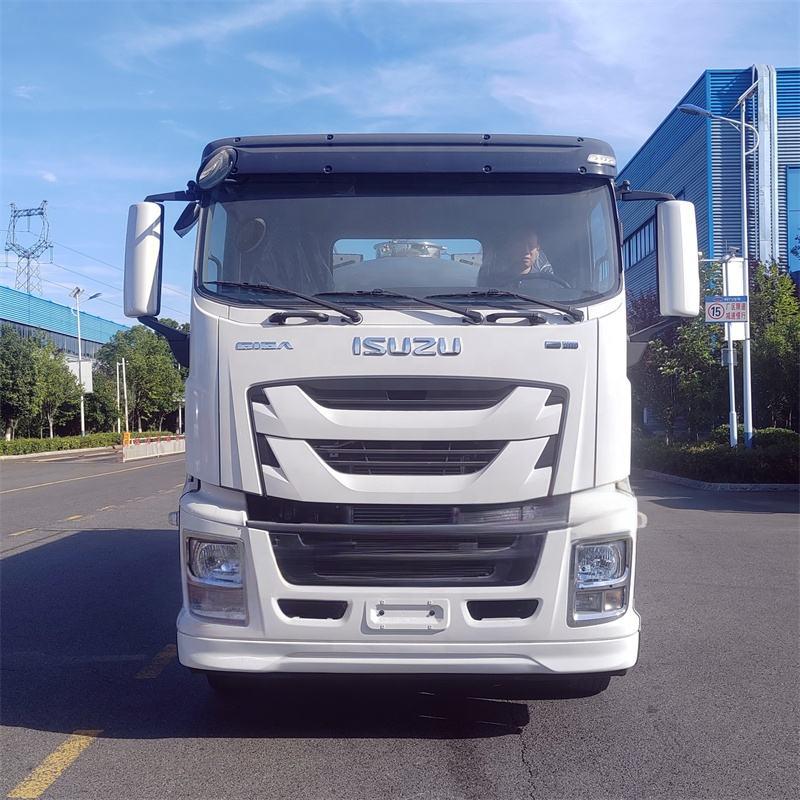

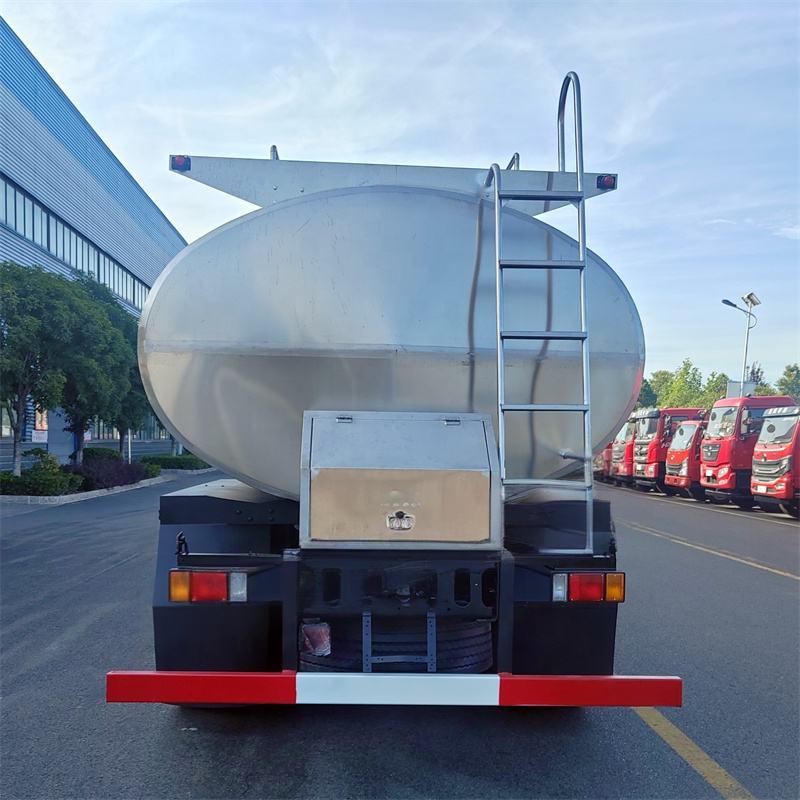

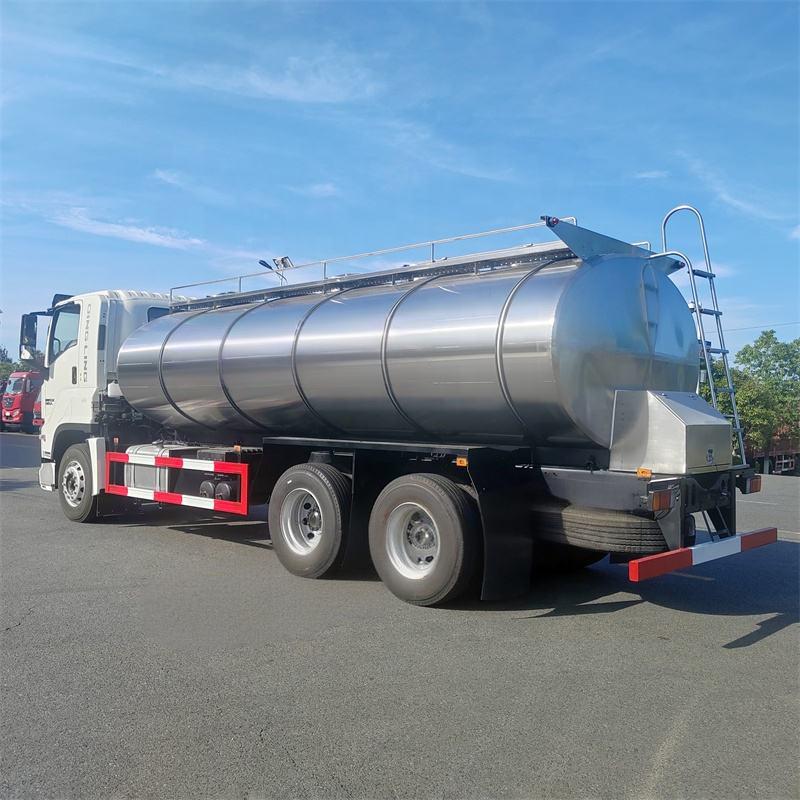

Brand New 1SUZU FVR 6X4 20000L Milk Tanker Truck 304 Stainless Steel Fresh Milk Beer and Juice Tanke

Vehicle Technical Parameters
Product Name	ISUZU 6X4 Fresh Raw Milk Transport Tanker Truck
Curb Weight(Kg)	9932
Boundary Dimension(mm)	9870×2550×3870
Tank Size（mm）	7000x2220x1470
Tank Volume(m³)	18/20
Tank Body Material	SUS304-2B food grade
Operating Ambient Temperature（°C）	-20~45
Milk Outlet Diameter（mm）	51
Inner Tank Thickness（mm）	δ3.0
Outer Thickness（mm）	δ1.0
Heat Insulating Materials	70 mm polyurethane spraying +10mm rubber and plastic insulation cotton
Heat Retention Performance	The use of polyurethane spray foam, the heat preservation performance for 24 hours does not exceed 2 °C
Cleaning Method	CIP automatic cleaning, each warehouse is equipped with cleaning balls, to meet the requirements of 360° cleaning
Compartment	2
Chassis Technical Parameters
Chassis Brand	ISUZU
Brake	Automatically Air-Cut Brake
Type of Fuel	Diesel Oil
Engine Power（KW）	221
Front Axle/Rear Axle（t）	7/12
Gearbox	8 Speed Manual Transmission
Number of Axles	3
Wheelbase (mm)	4650+1370
Number of Tires	10
Tyre Specification	295/80R22.5 18PR
