Vehicle Technical Parameters | |

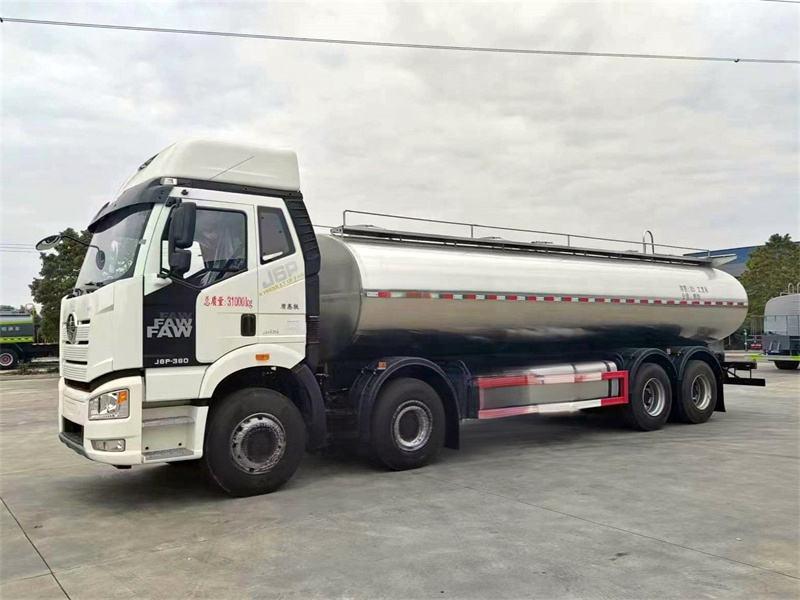

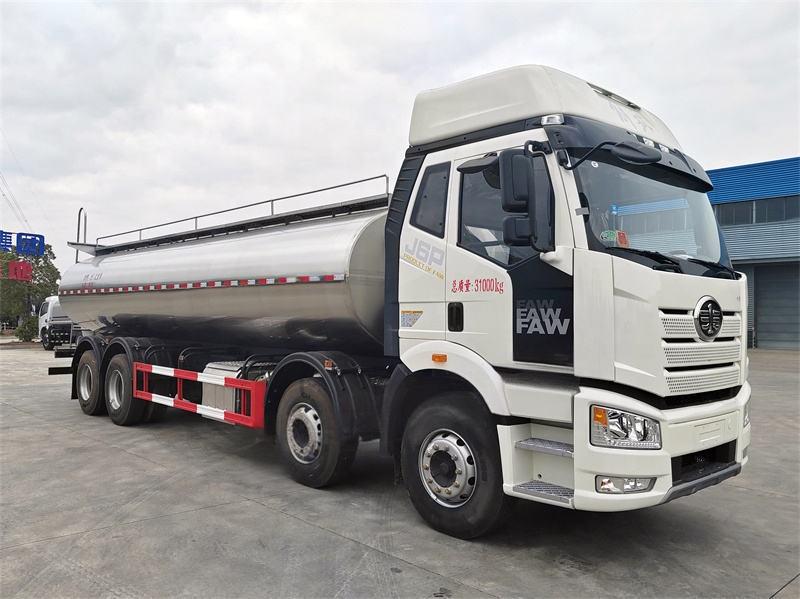

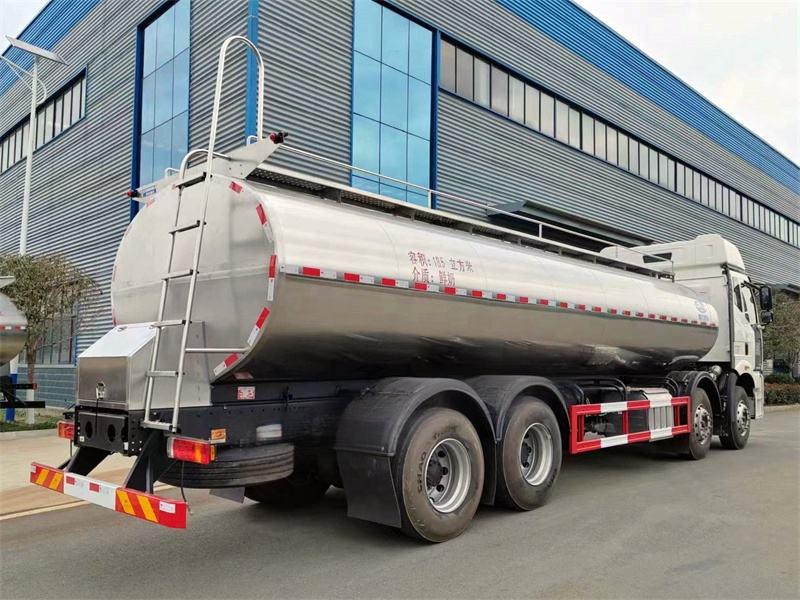

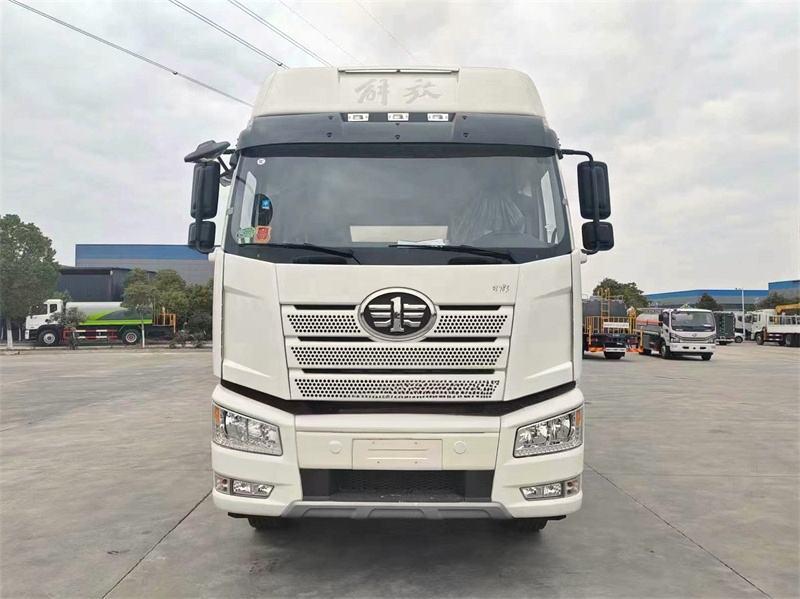

Product Name | FAW 8X4 Fresh Raw Milk Transport Tanker Truck |
Curb Weight(Kg) | 13105 |
Boundary Dimension(mm) | 11820×2550×3680 |
Tank Size（mm） | 8460×2210×1410 |
Tank Volume(m³) | 22 |
Tank Body Material | SUS304-2B food grade |
Operating Ambient Temperature（°C） | -20~45 |
Milk Outlet Diameter（mm） | 51 |
Inner Tank Thickness（mm） | δ3.0 |
Outer Thickness（mm） | δ1.0 |
Heat Insulating Materials | 70 mm polyurethane spraying +10mm rubber and plastic insulation cotton |
Heat Retention Performance | The use of polyurethane spray foam, the heat preservation performance for 24 hours does not exceed 2 °C |
Cleaning Method | CIP automatic cleaning, each warehouse is equipped with cleaning balls, to meet the requirements of 360° cleaning |
Compartment | 3 |
Chassis Technical Parameters | |
Chassis Brand | FAW |
Brake | Automatically Air-Cut Brake |
Type of Fuel | Diesel Oil |
Engine Power（KW） | 265 |
Front Axle/Rear Axle（t） | 7/12 |
Gearbox | 12 Speed Manual Transmission |
Number of Axles | 4 |
Wheelbase (mm) | 1900+4700+1350 |
Number of Tires | 12 |
Tyre Specification | 12.00R20 18PR |
