Vehicle Technical Parameters | |

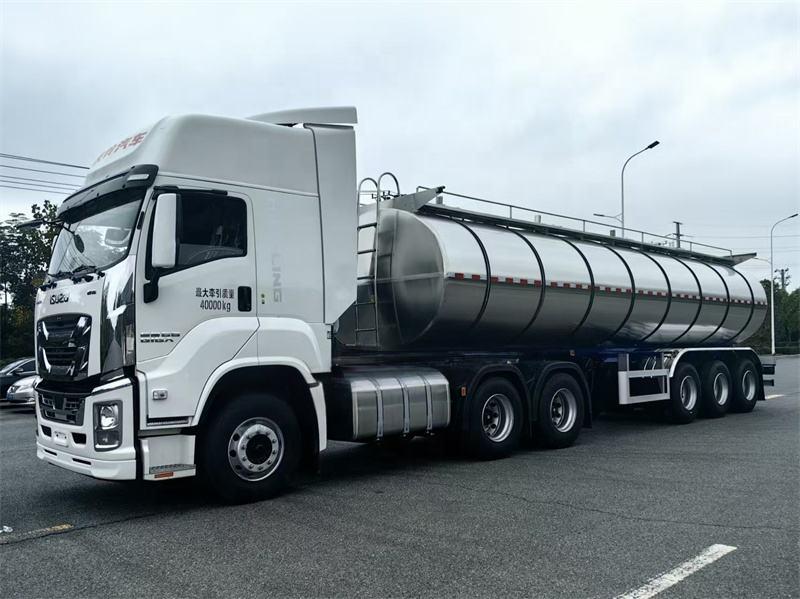

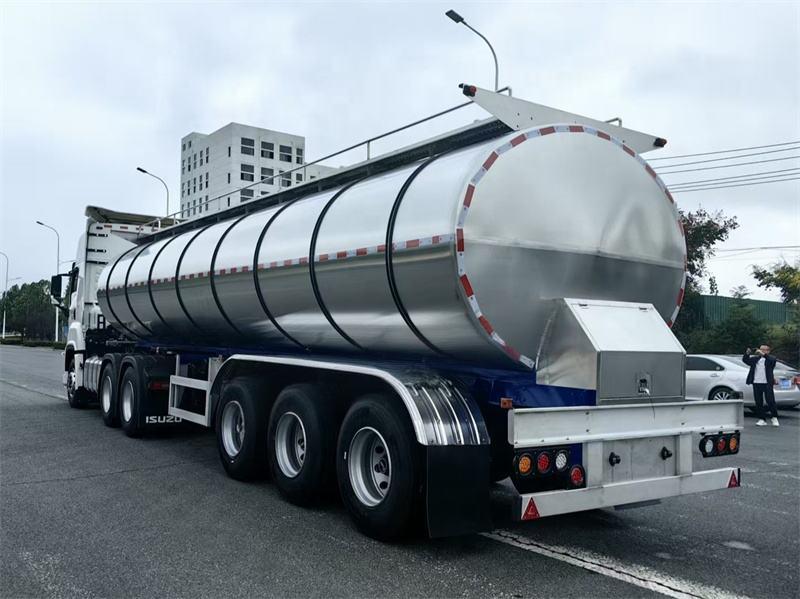

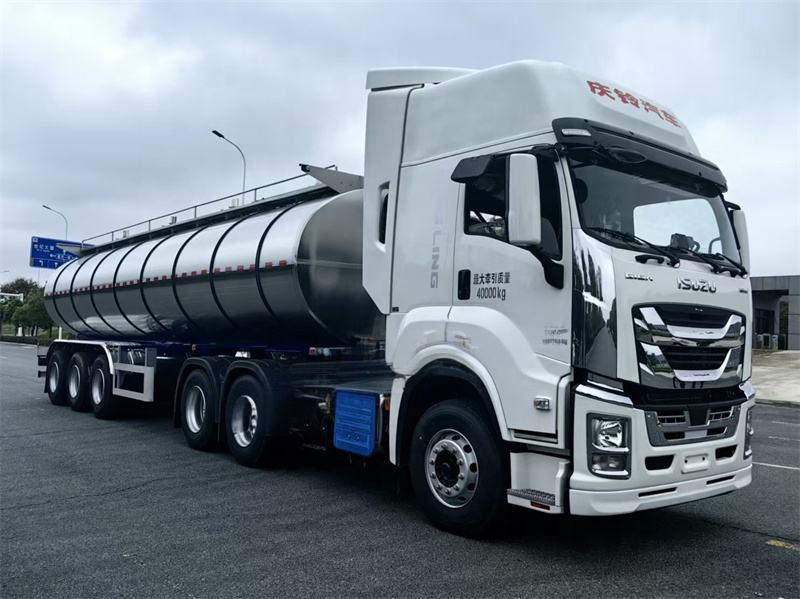

Product Name | 3 Axle 30000L 304 Stainless Steel Milk tank Semi Trailer |
Curb Weight(Kg) | 7505 |
Boundary Dimension(mm) | 10600×2500×3650 |
Tank Size（mm） | 10150X2250X1590 |
Tank Volume(m³) | 30 |
Tank Body Material | SUS304-2B food grade |
Operating Ambient Temperature（°C） | -20~45 |
Milk Outlet Diameter（mm） | 51 |
Inner Tank Thickness（mm） | δ3.0 |
Outer Thickness（mm） | δ1.0 |
Heat Insulating Materials | 70 mm polyurethane spraying +10mm rubber and plastic insulation cotton |
Heat Retention Performance | The use of polyurethane spray foam, the heat preservation performance for 24 hours does not exceed 2 °C |
Cleaning Method | CIP automatic cleaning, each warehouse is equipped with cleaning balls, to meet the requirements of 360° cleaning |
Compartment | 3 |
Chassis Technical Parameters | |
Number of Axles | 3 |
Wheelbase (mm) | 5100+1310+1310 |
Number of Tires | 12 |
Tyre Specification | 11.00R20 12PR |
