Vehicle Technical Parameters | |

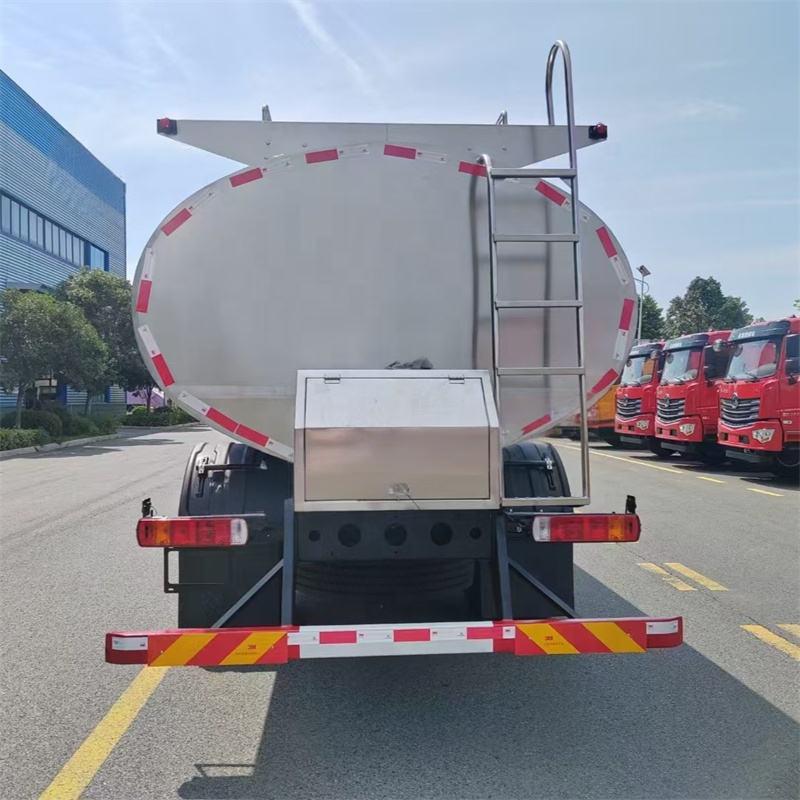

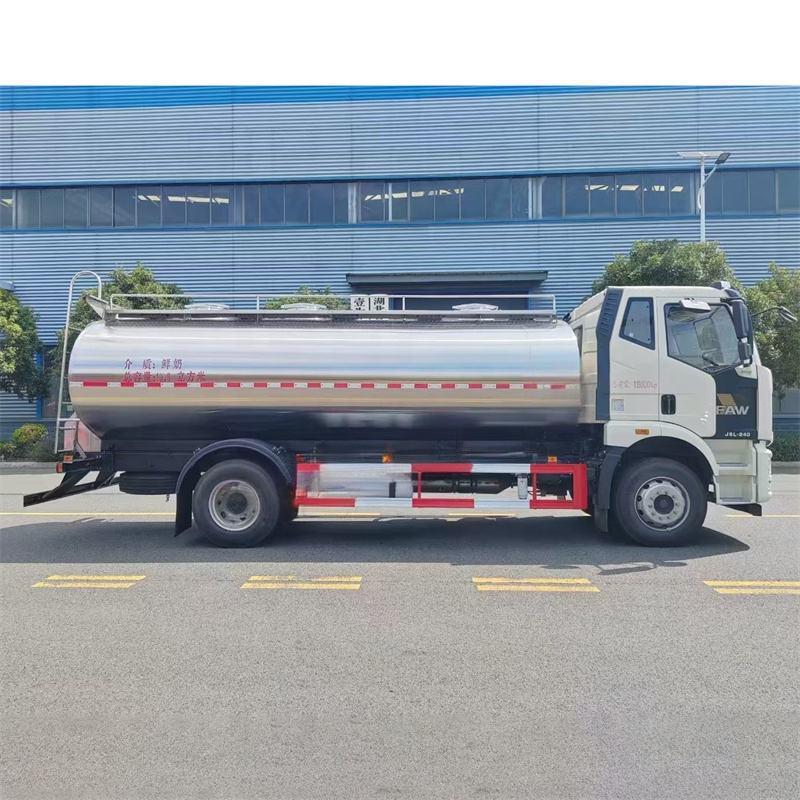

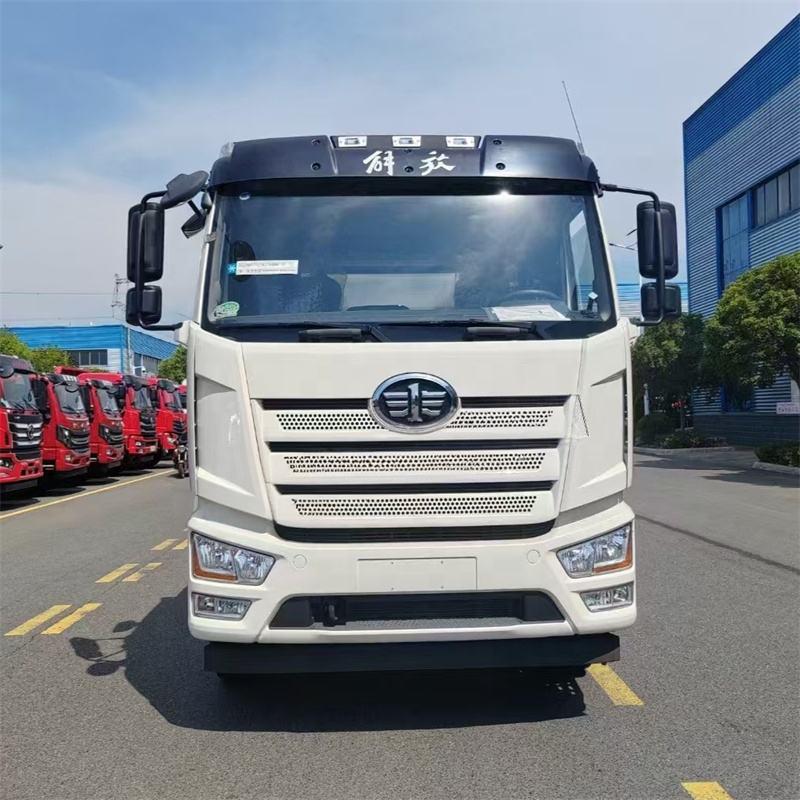

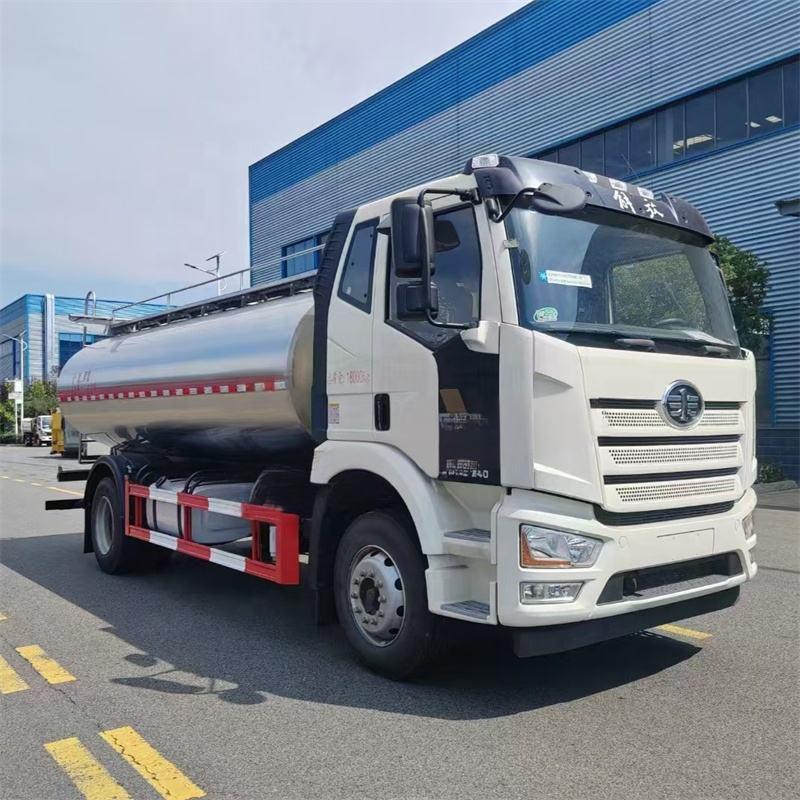

Product Name | Fresh Raw Milk Transport Tanker Truck |
Curb Weight(Kg) | 7370 |
Boundary Dimension(mm) | 8560×2500×3200 |
Tank Size（mm） | 5700×2400×1600 |
Tank Volume(m³) | 13 |
Tank Body Material | SUS304-2B food grade |
Operating Ambient Temperature（°C） | -20~45 |
Milk Outlet Diameter（mm） | 51 |
Inner Tank Thickness（mm） | δ3.0 |
Outer Thickness（mm） | δ1.0 |
Heat Insulating Materials | 70 mm polyurethane spraying +10mm rubber and plastic insulation cotton |
Heat Retention Performance | The use of polyurethane spray foam, the heat preservation performance for 24 hours does not exceed 2 °C |
Cleaning Method | CIP automatic cleaning, each warehouse is equipped with cleaning balls, to meet the requirements of 360° cleaning |
Compartment | 3 |
Chassis Technical Parameters | |
Chassis Brand | FAW |
Brake | Automatically Air-Cut Brake |
Type of Fuel | Diesel Oil |
Engine Power（KW） | 179 |
Front Axle/Rear Axle（t） | 7/12 |
Gearbox | 8 Speed Manual Transmission |
Number of Axles | 2 |
Wheelbase (mm) | 4700 |
Number of Tires | 6 |
Tyre Specification | 275/80R22.5 |
![[pics:title]](/static/upload/other/20251114/1763132741400042.jpeg)
![[pics:title]](/static/upload/other/20251114/1763132741771272.jpeg)
![[pics:title]](/static/upload/other/20251114/1763132742583087.jpeg)
![[pics:title]](/static/upload/other/20251114/1763132742116805.jpeg)
